Description

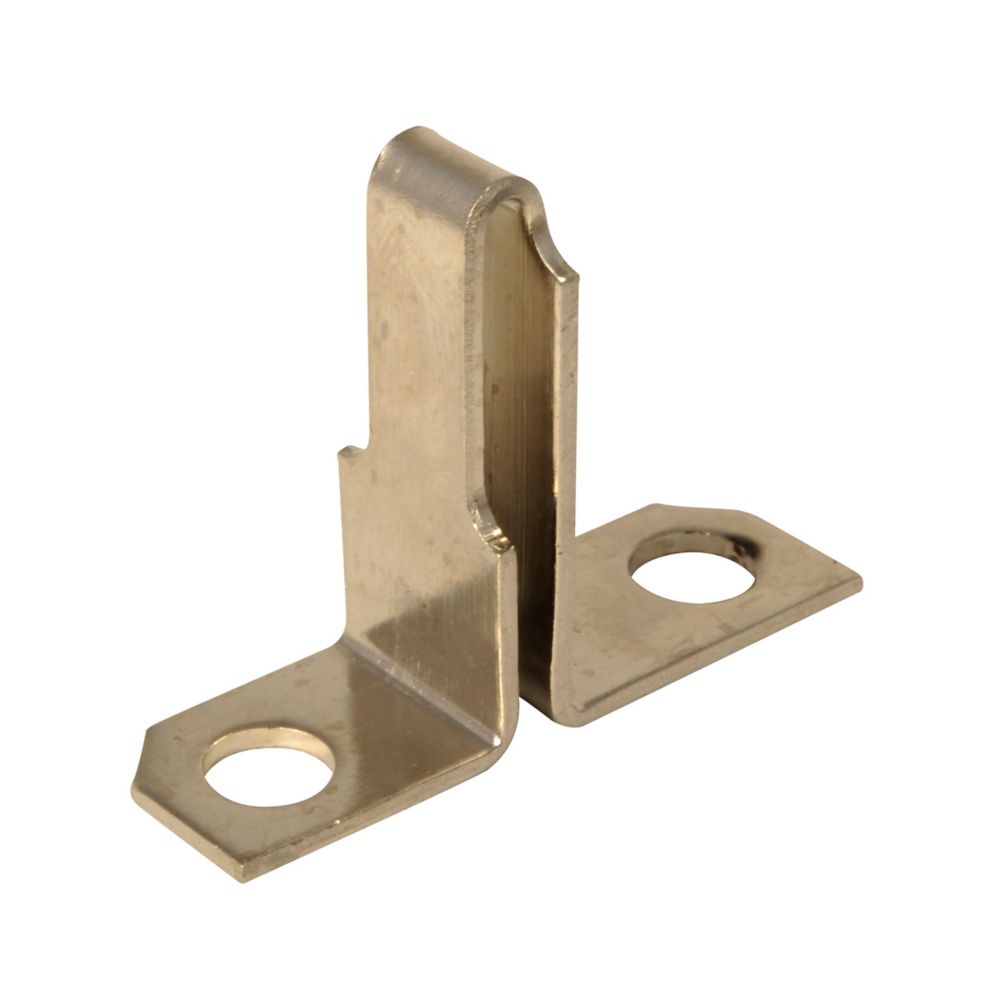

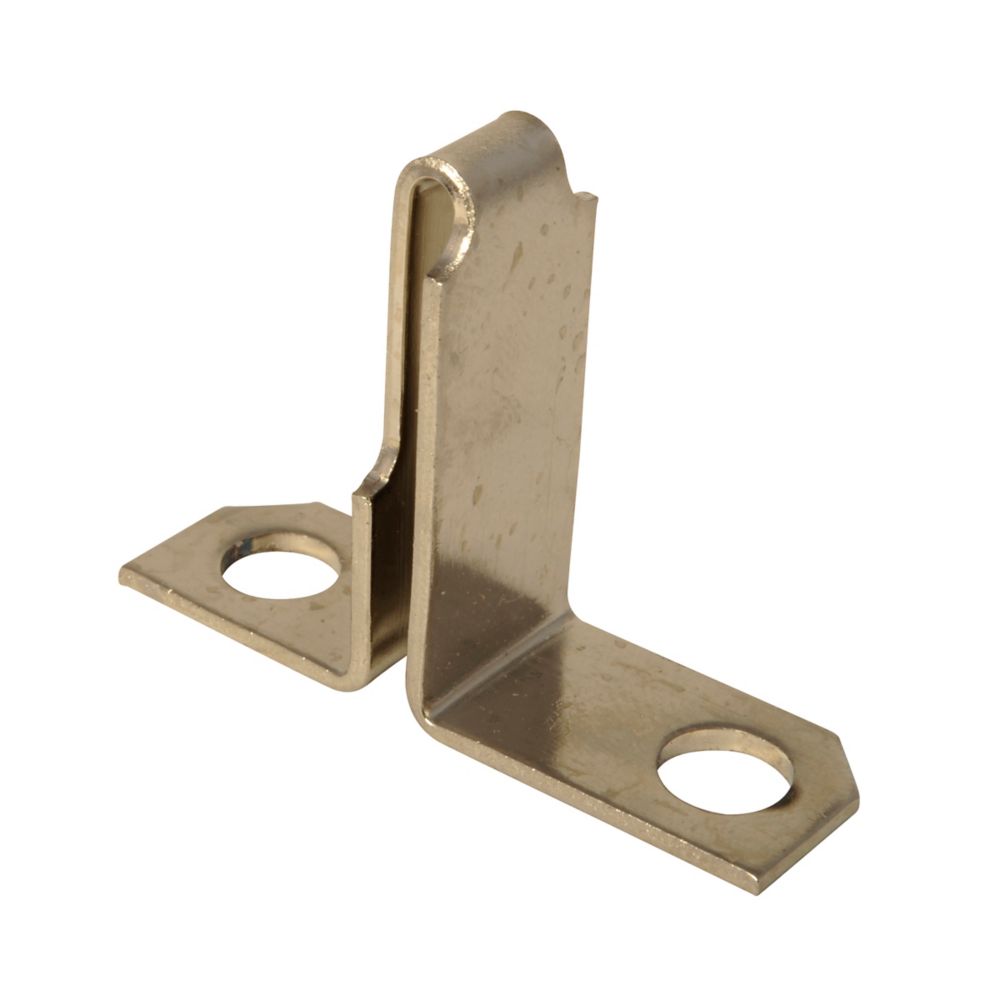

FH84 - Eaton Cutler Hammer - 66A A200/B100 heater
The Eaton FH84 A200/B100 heater, built for Starter Sizes 3 and 4 (three-phase only), handles ambient full-load currents of 62–66 A and non-compensated ranges of 57–61 A. It features reliable overload protection via Type A and B relays and supports both thermal and fast-trip operation in a certified compact form.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH84
|
| UPC |
786678670966
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.04 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH84
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 62-66 A, Non-Comp 57-61 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
