Description

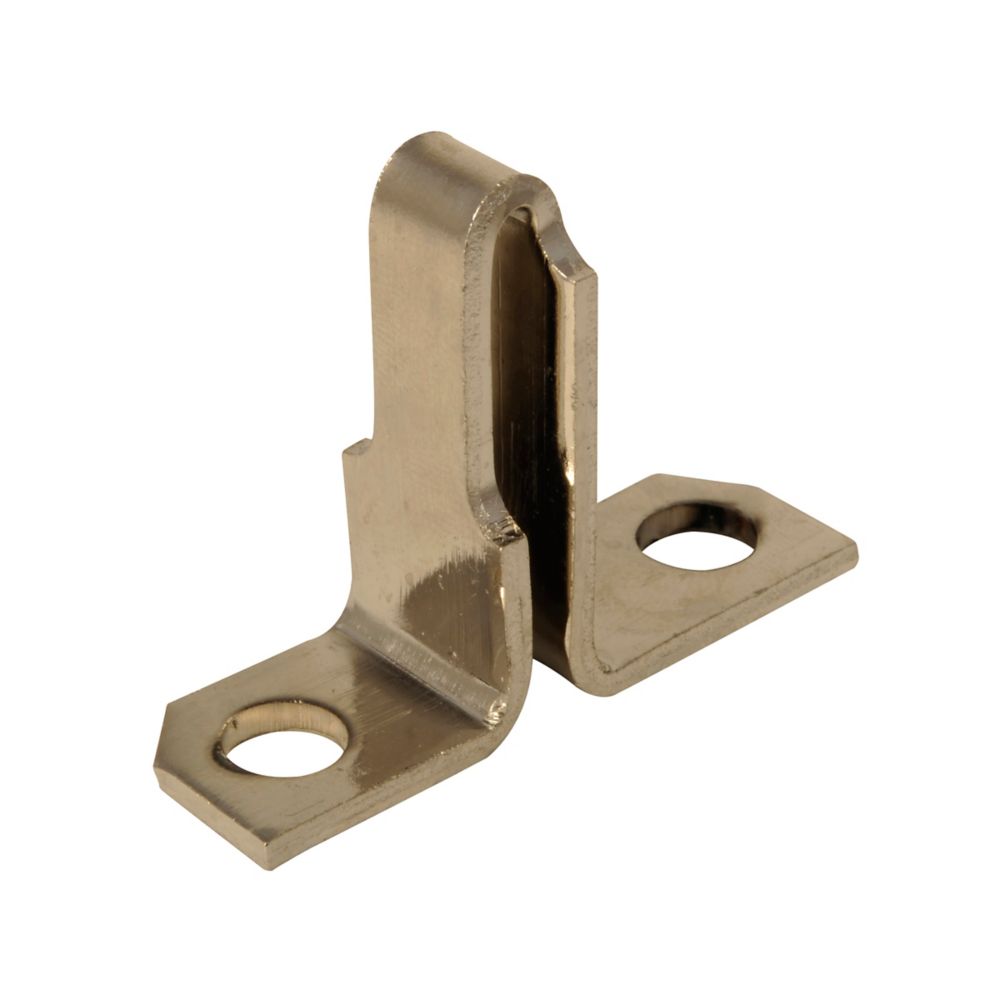

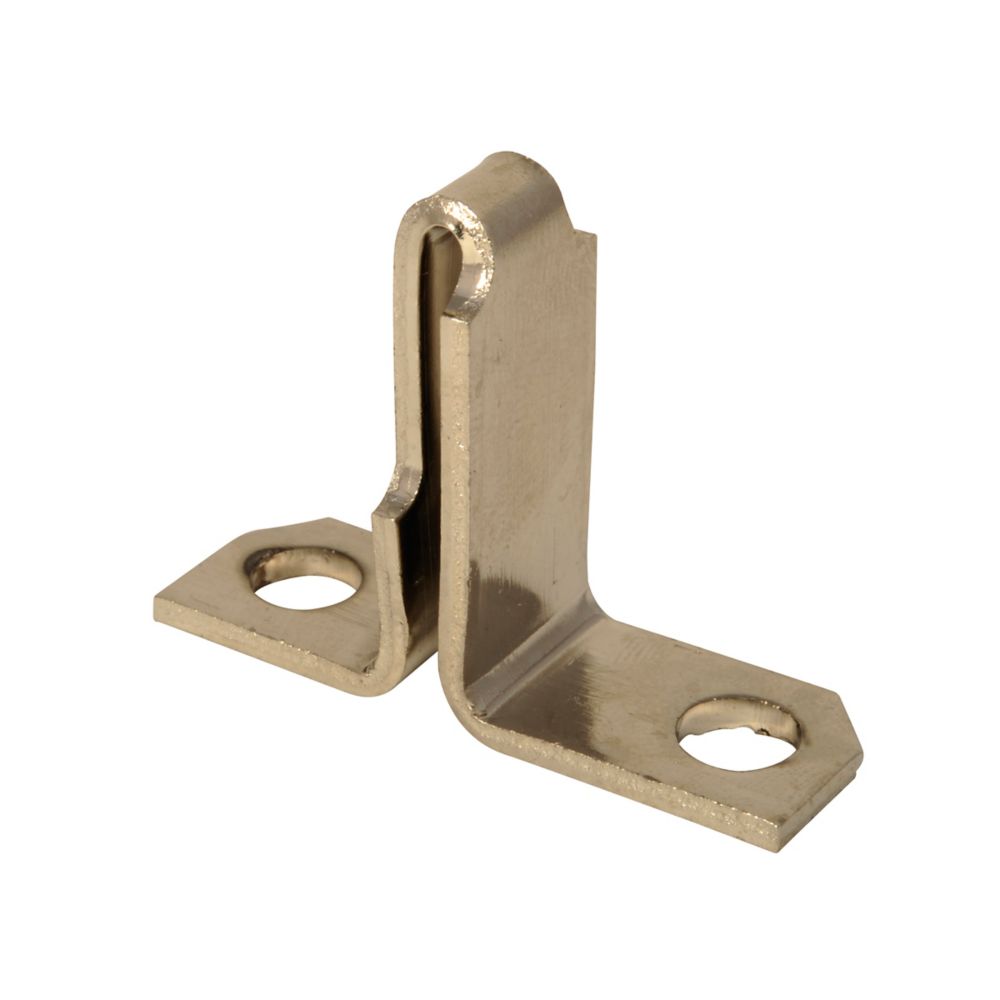

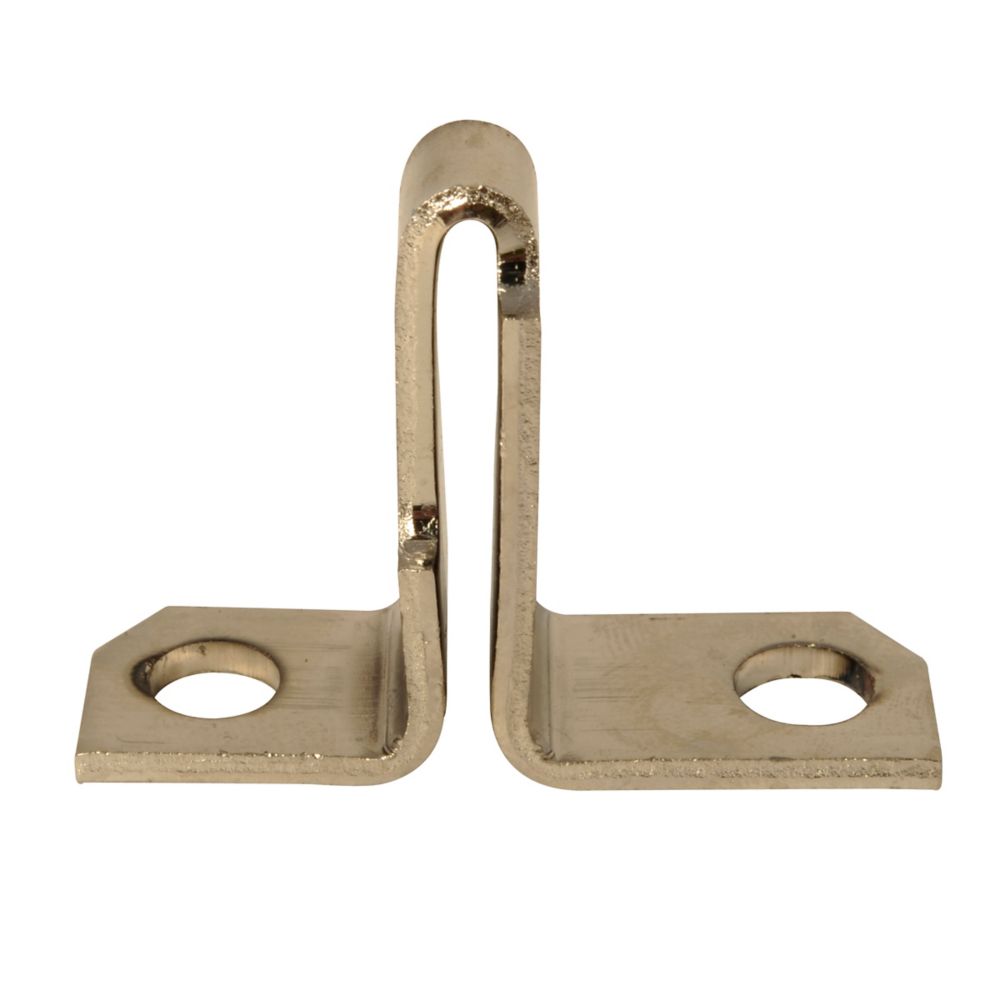

FH88 - Eaton Cutler Hammer - 92A A200/B100 heater
The Eaton FH88 A200/B100 heater is built for NEMA Starter Sizes 3 and 4 (three-phase only), offering ambient full-load current coverage from 85–92 A, with non-compensated ranges of 78–84 A. It incorporates Type A and B overload relays and provides both thermal and fast-trip protection, all packed into a compact, UL-listed, and CSA-certified design.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH88
|
| UPC |
786678671086
|
| Product Length/Depth |
2.1 in
|
| Product Height |
0.8 in
|
| Product Width |
1.1 in
|
| Product Weight |
0.06 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH88
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 3 & 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 85-92 A, Non-Comp 78-84 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
