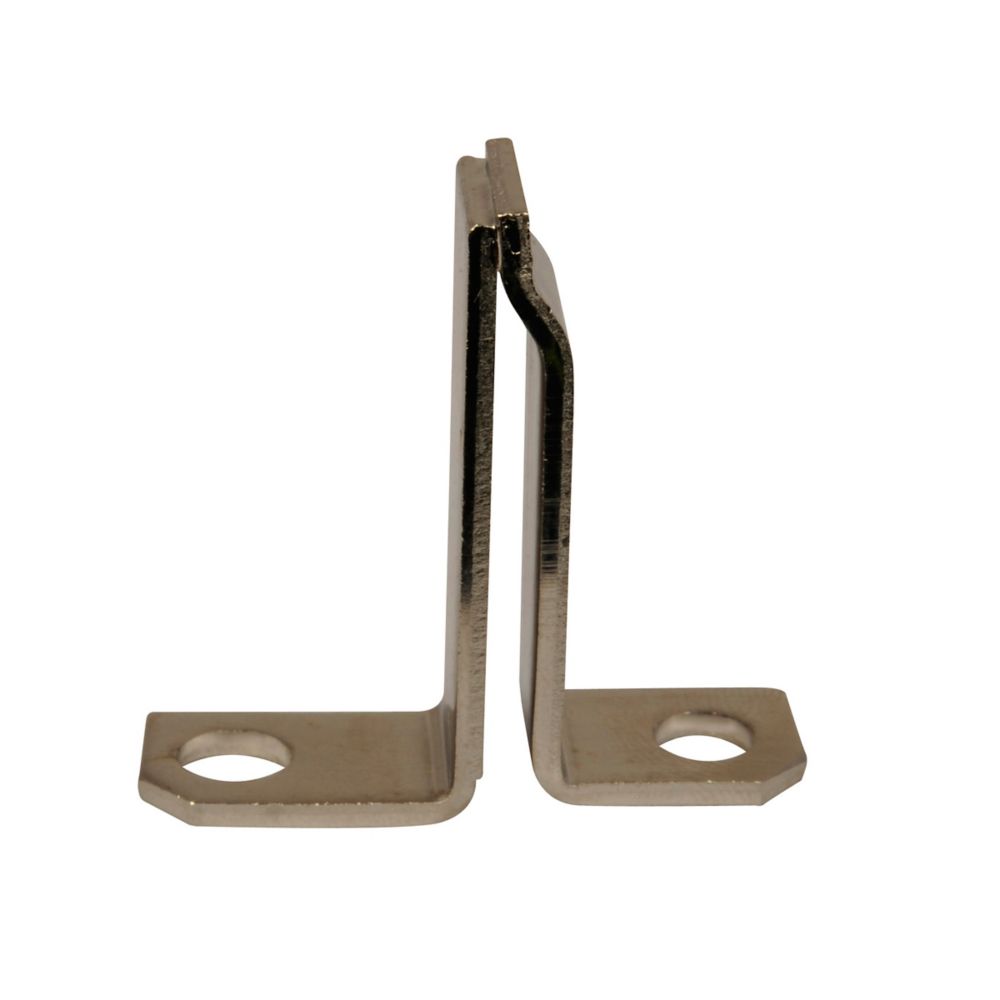

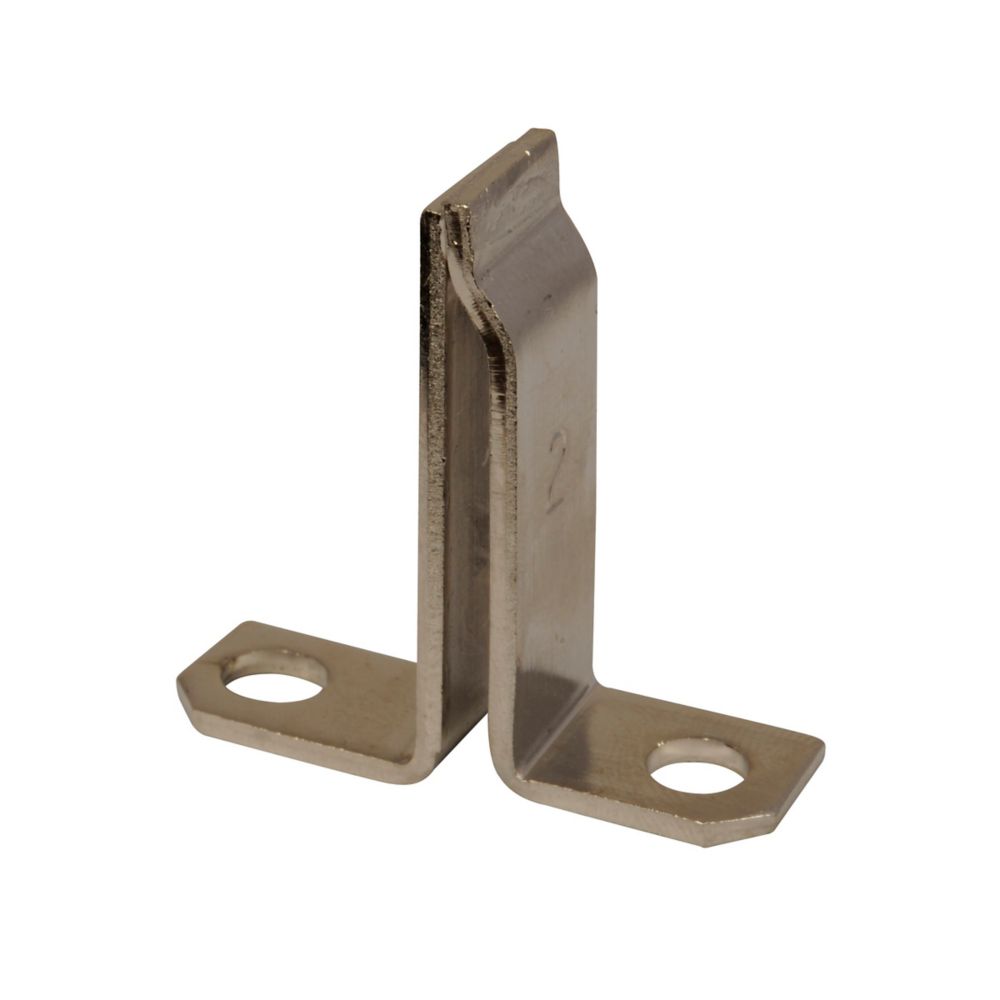

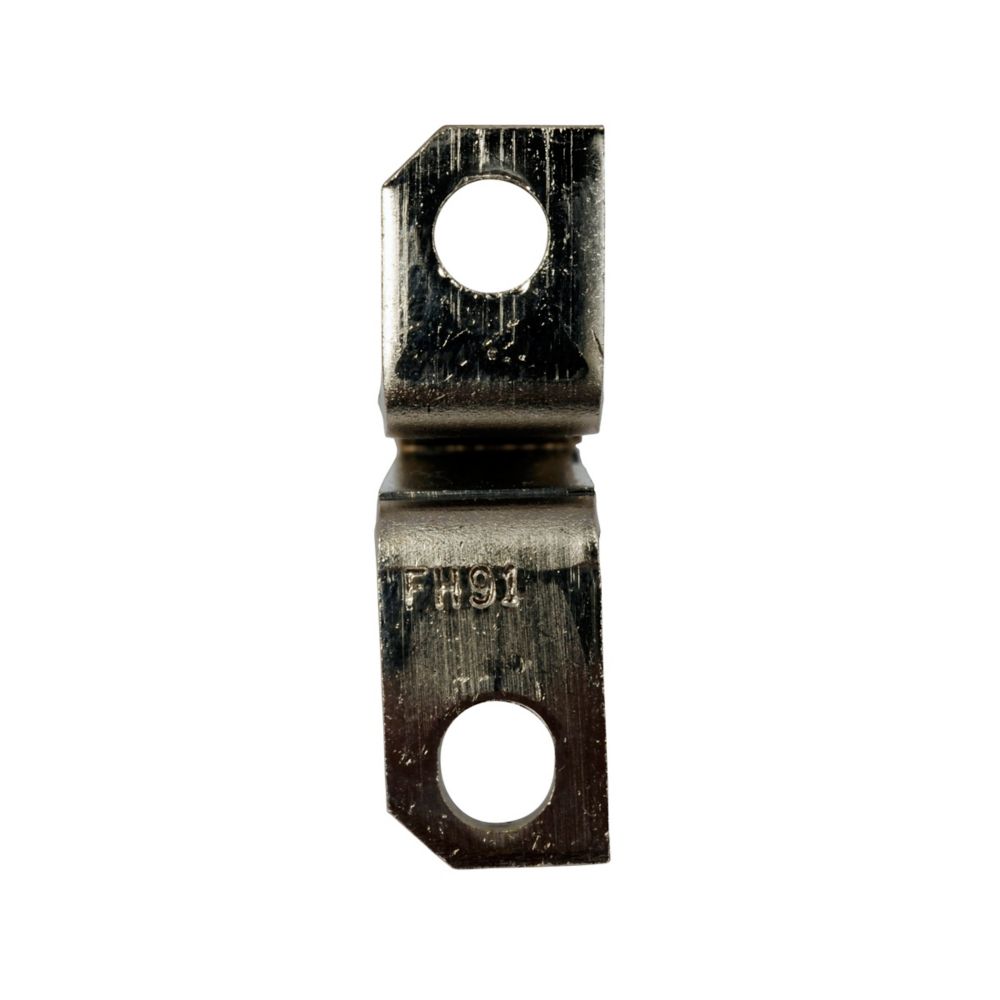

FH91 - Eaton Cutler Hammer - 122A A200/B100 heater
Designed for NEMA Starter Size 4 (3-phase only), the Eaton FH91 heater handles ambient full-load currents between 111–122 A, with non-compensated coverage of 100–110 A. It ensures accurate protection with Type A and B overload relays and both thermal and fast-trip features. UL-listed and CSA-certified, FH91 offers compact precision for demanding starter applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH91
|
| UPC |
786678671178
|
| Product Length/Depth |
1.9 in
|
| Product Height |
2.2 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.1 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH91
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 111-122 A, Non-Comp 100-110 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
