Description

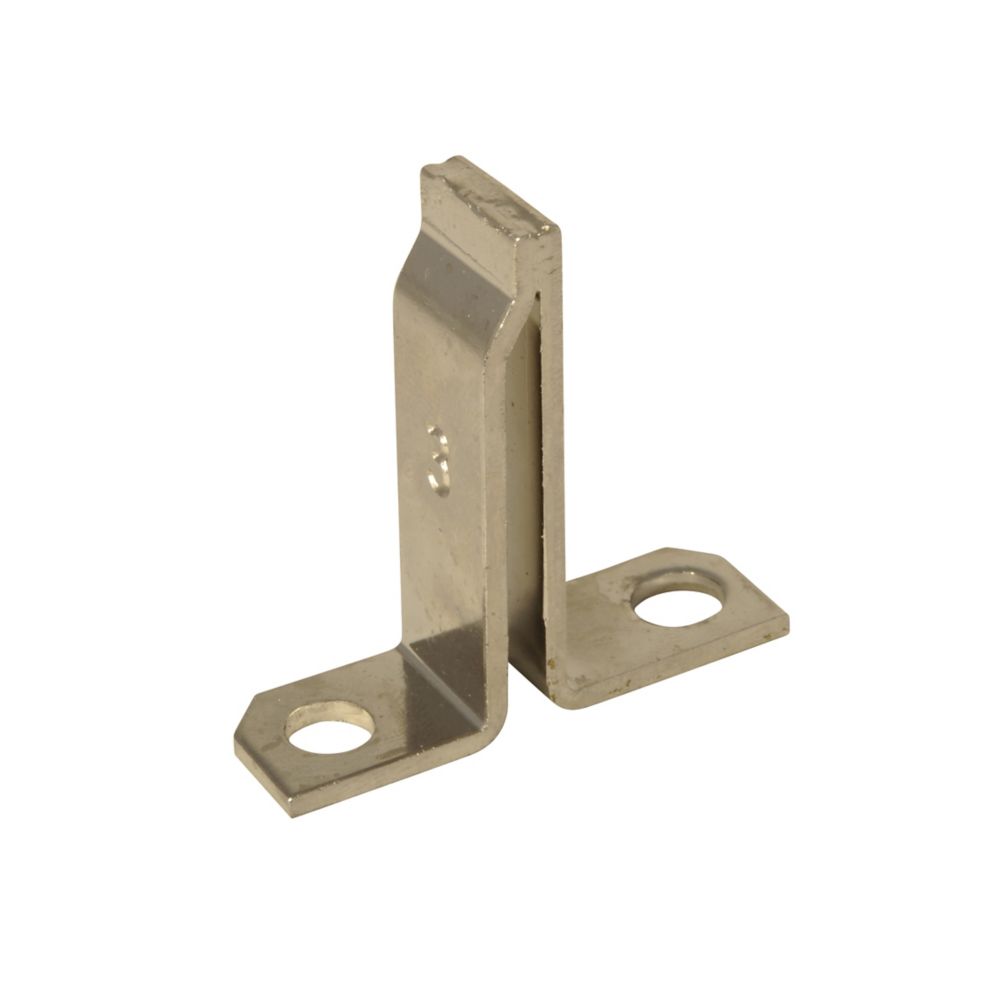

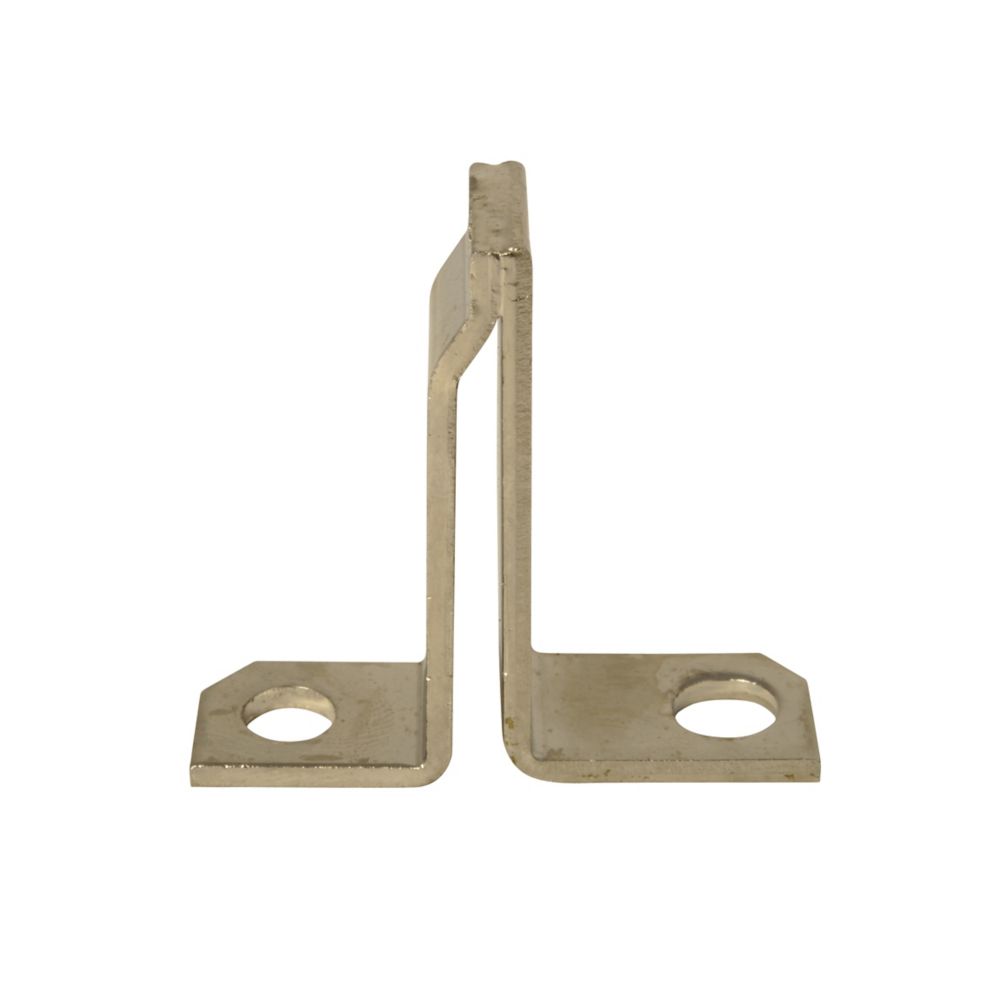

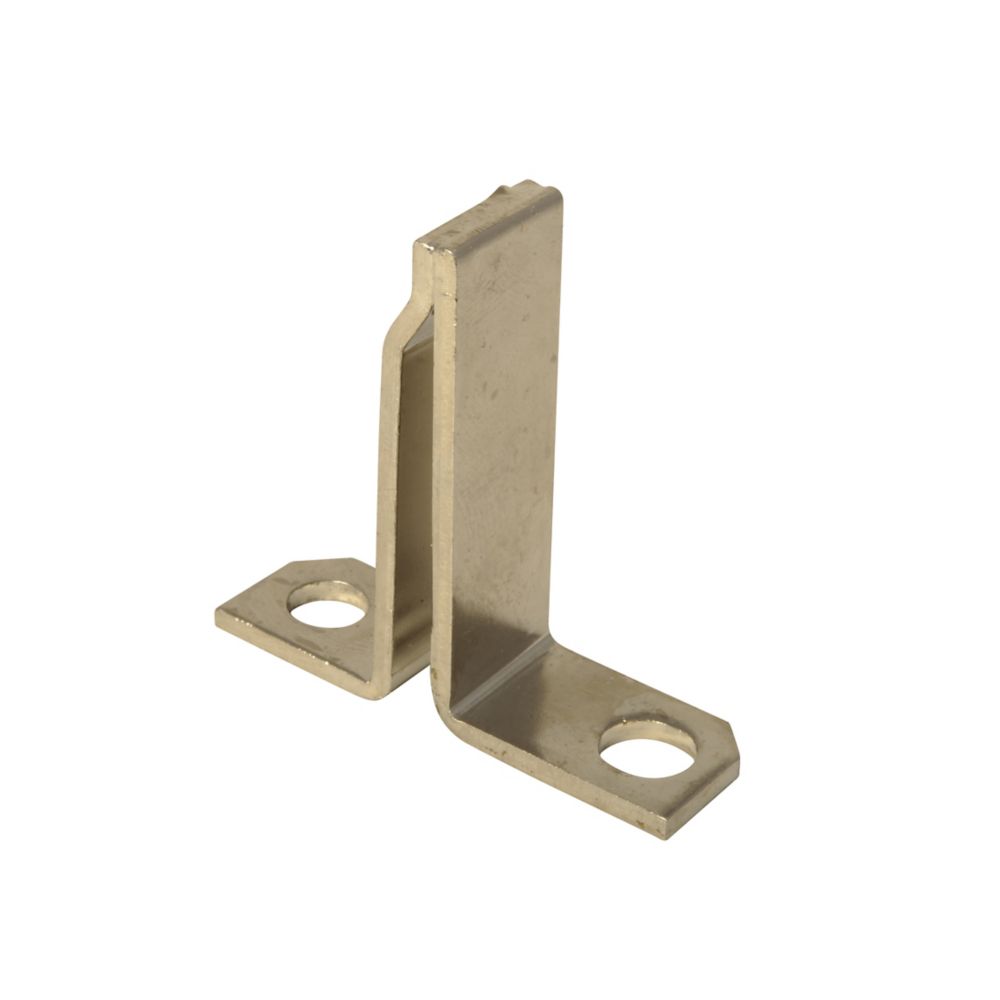

FH93 - Eaton Cutler Hammer - 133A A200/B100 heater
The Eaton FH93 A200/B100 heater is designed for NEMA A200 Starter Size 4 (three-phase only), offering ambient full-load current protection in the 130–133 A range and non-compensated values of 123–128 A. It delivers dependable overload protection using Type A and B relays with both thermal and fast-trip response mechanisms. Compact, UL-listed, and CSA-certified, this model is built for robust, high-current industrial motor control applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton A200/B100 heater
|
| Catalog Number |
FH93
|
| UPC |
786678671215
|
| Product Length/Depth |
1.9 in
|
| Product Height |
2.2 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.05 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Select heater coils based on full load current(FLA) shown on motor nameplate. Heater coils are rated to protect 40 degree C rise and a service factor of 1.15, Single-Phase requires 2 heaters, Three-Phase Requires 3 heaters
|
| Global Catalog |
FH93
|
PRODUCT SPECIFICATIONS
| Special features |
Used with A200 Starter Sizes 4, 3-Phase Only
|
| Type |
A200 Heater
|
| Used with |
Used with A200 Starter Sizes 4, 3-Phase Only
|
| Design |
NEMA
|
| Full load current range |
Ambient 130-133 A, Non-Comp 123-128 A
|
| Overload relay |
Type A and B
|
| Trip type |
Thermal and fast trip
|
