GAR2029 - Burndy - 3" Pipe 3" to 3-1/2" Rod Bright Dipped Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3" Pipe, 3"-3-1/2" Rod, Bright Dipped.

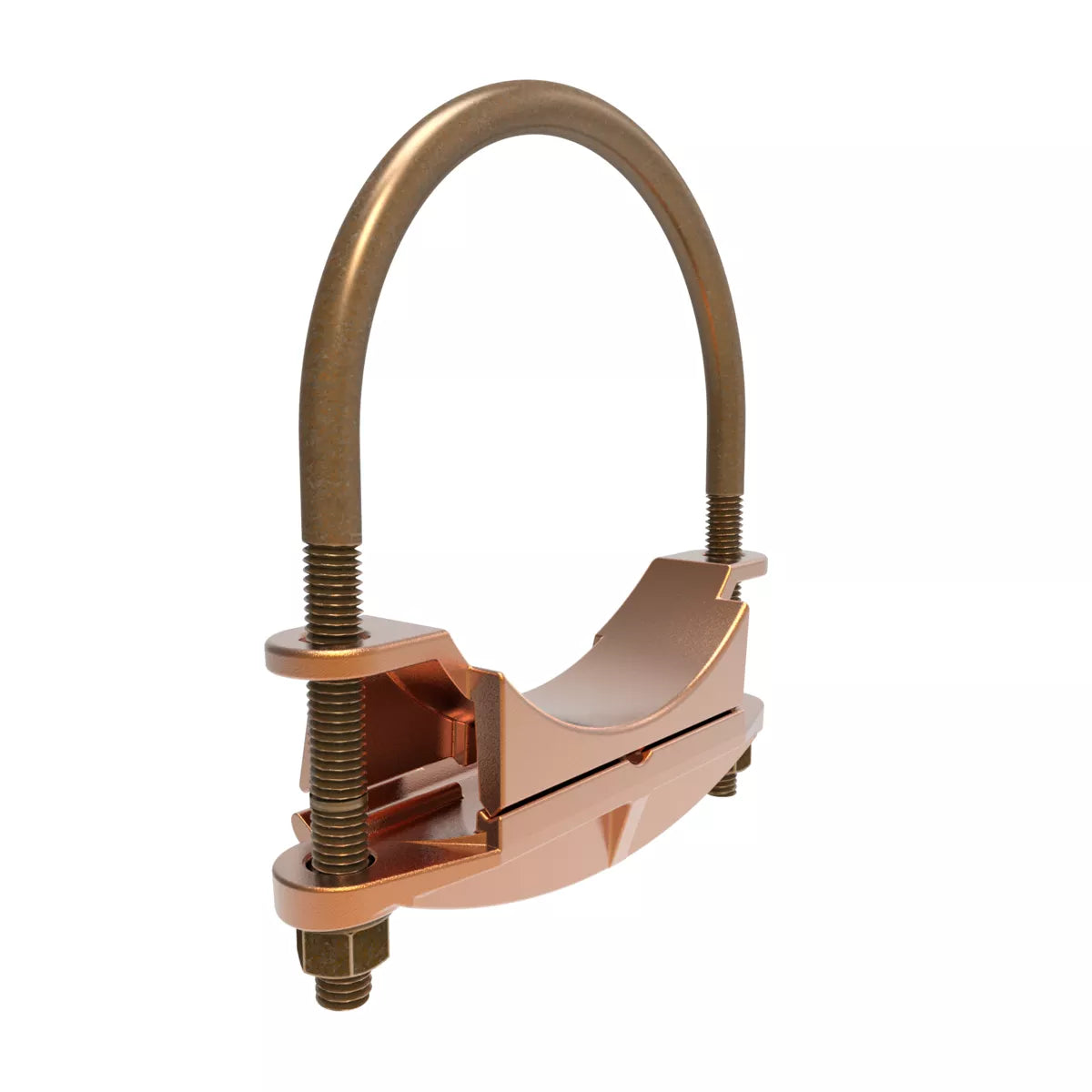

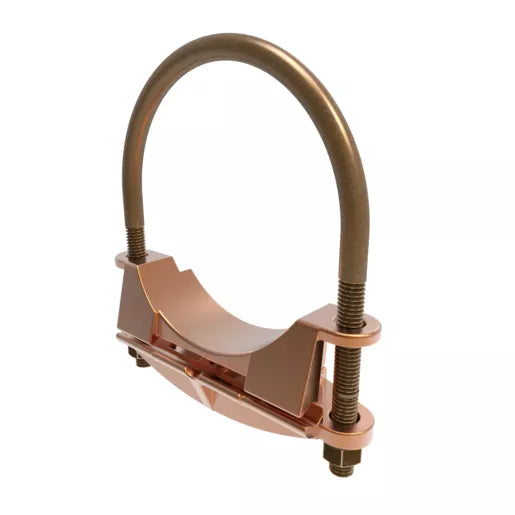

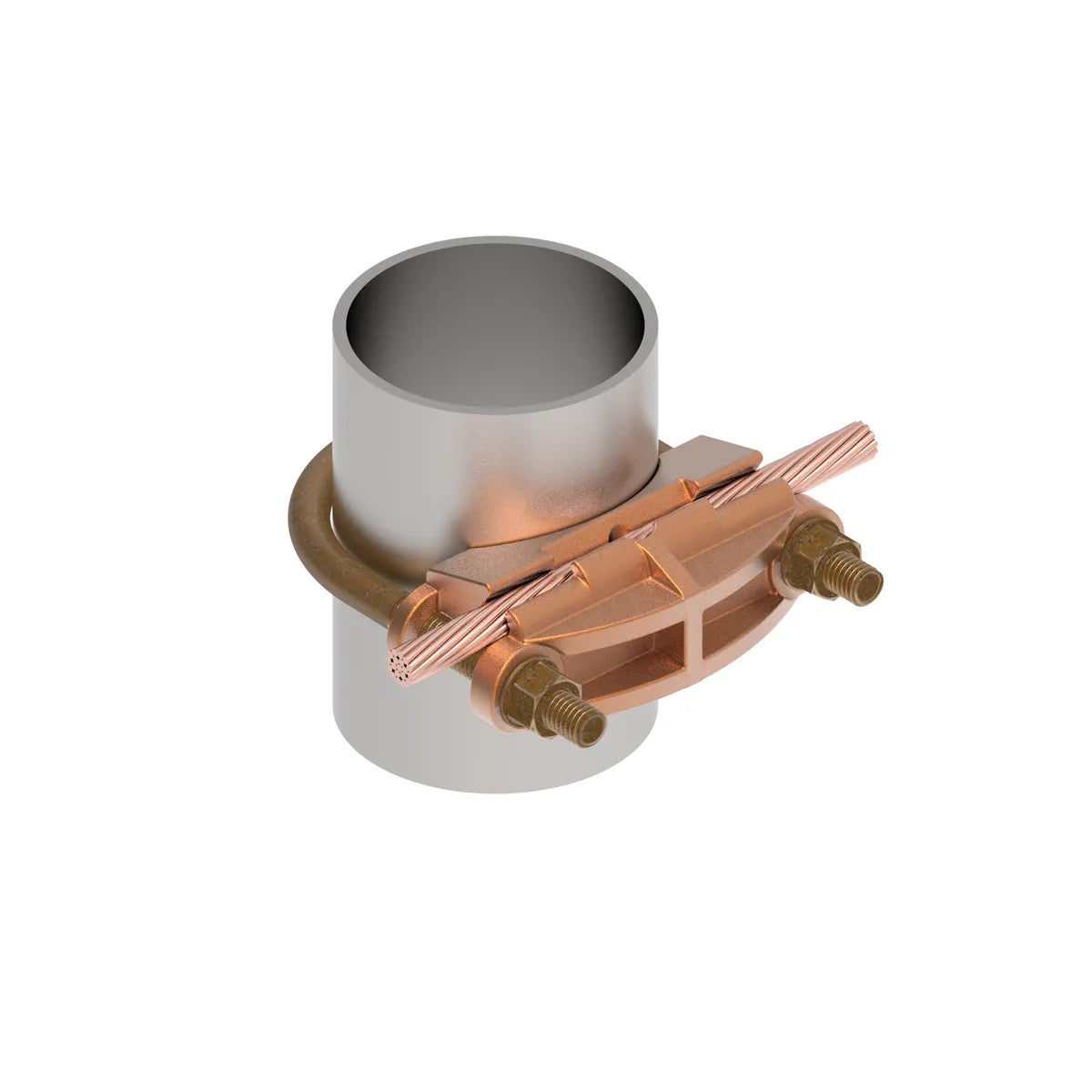

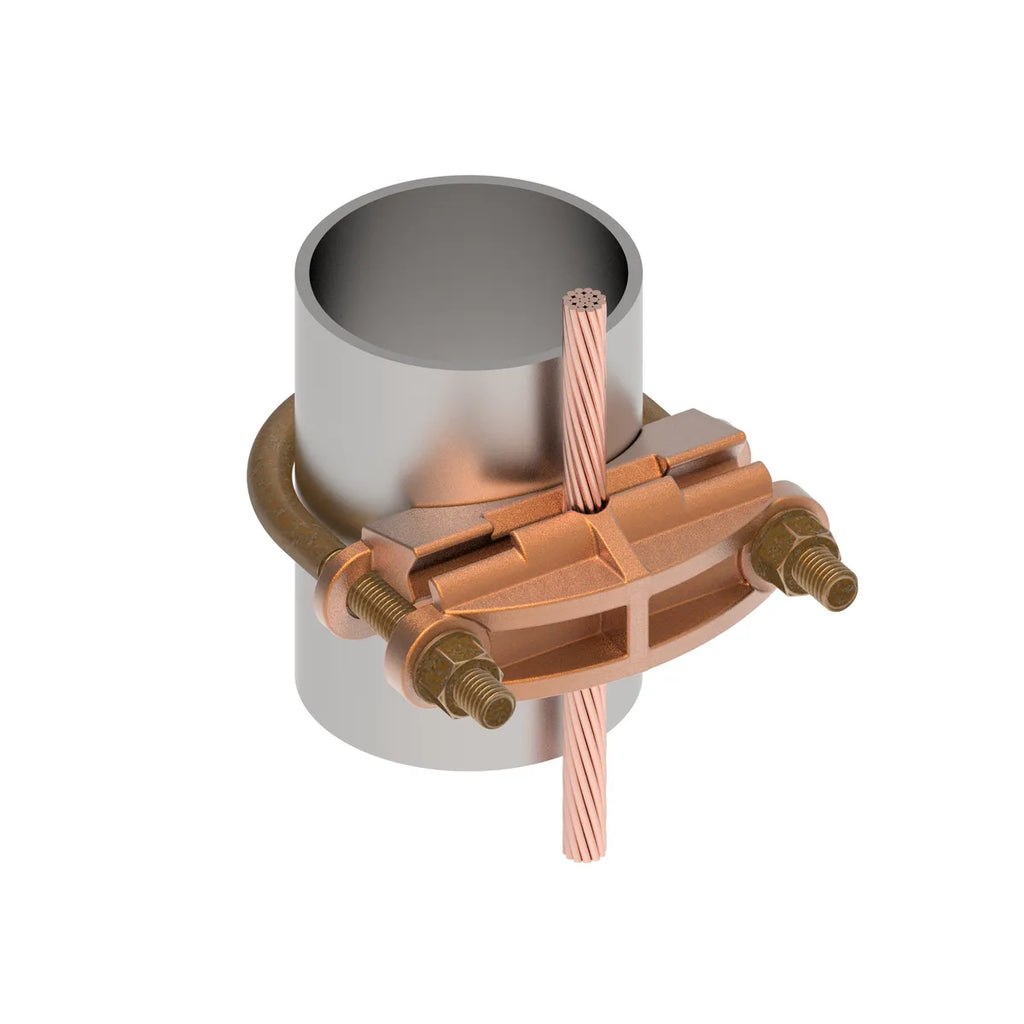

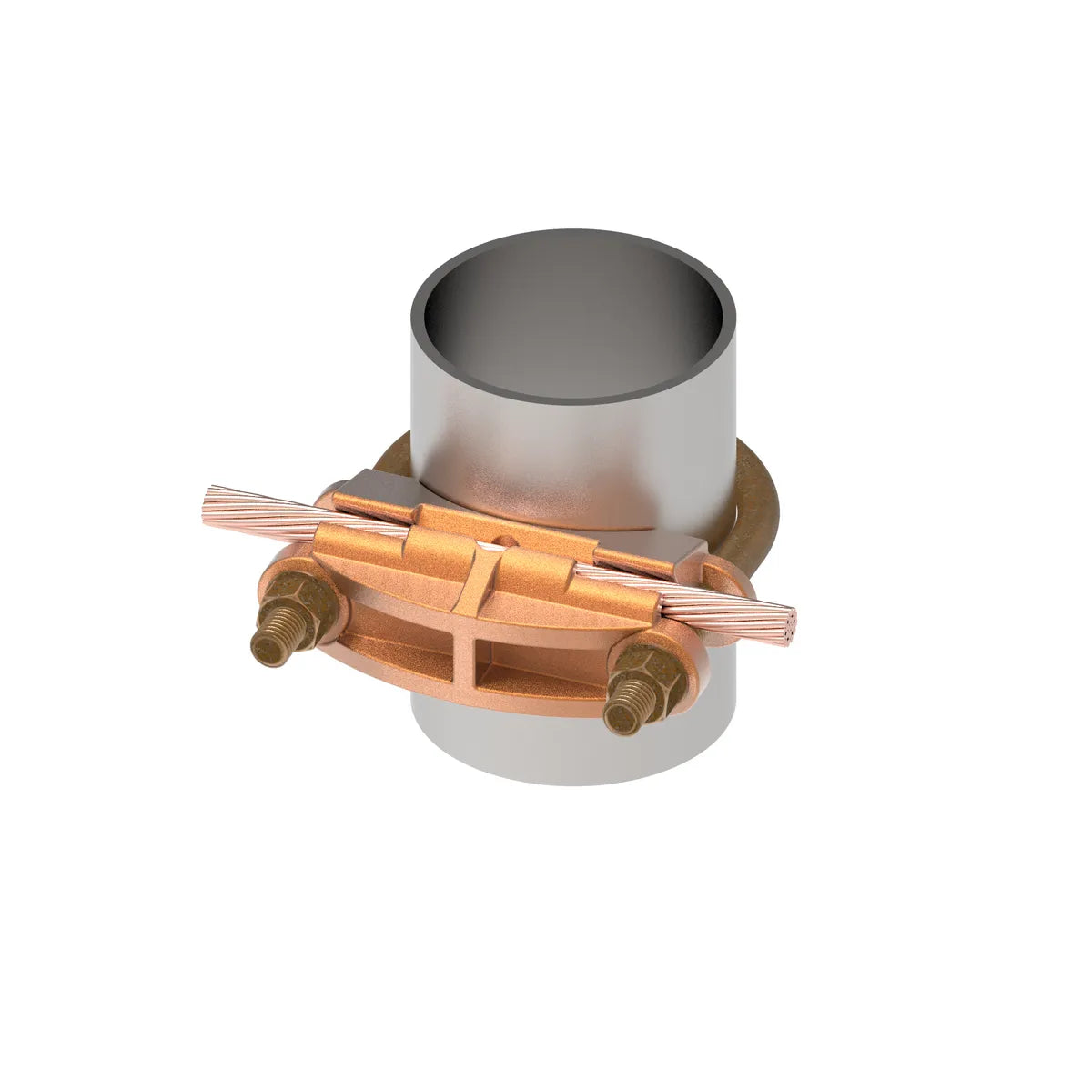

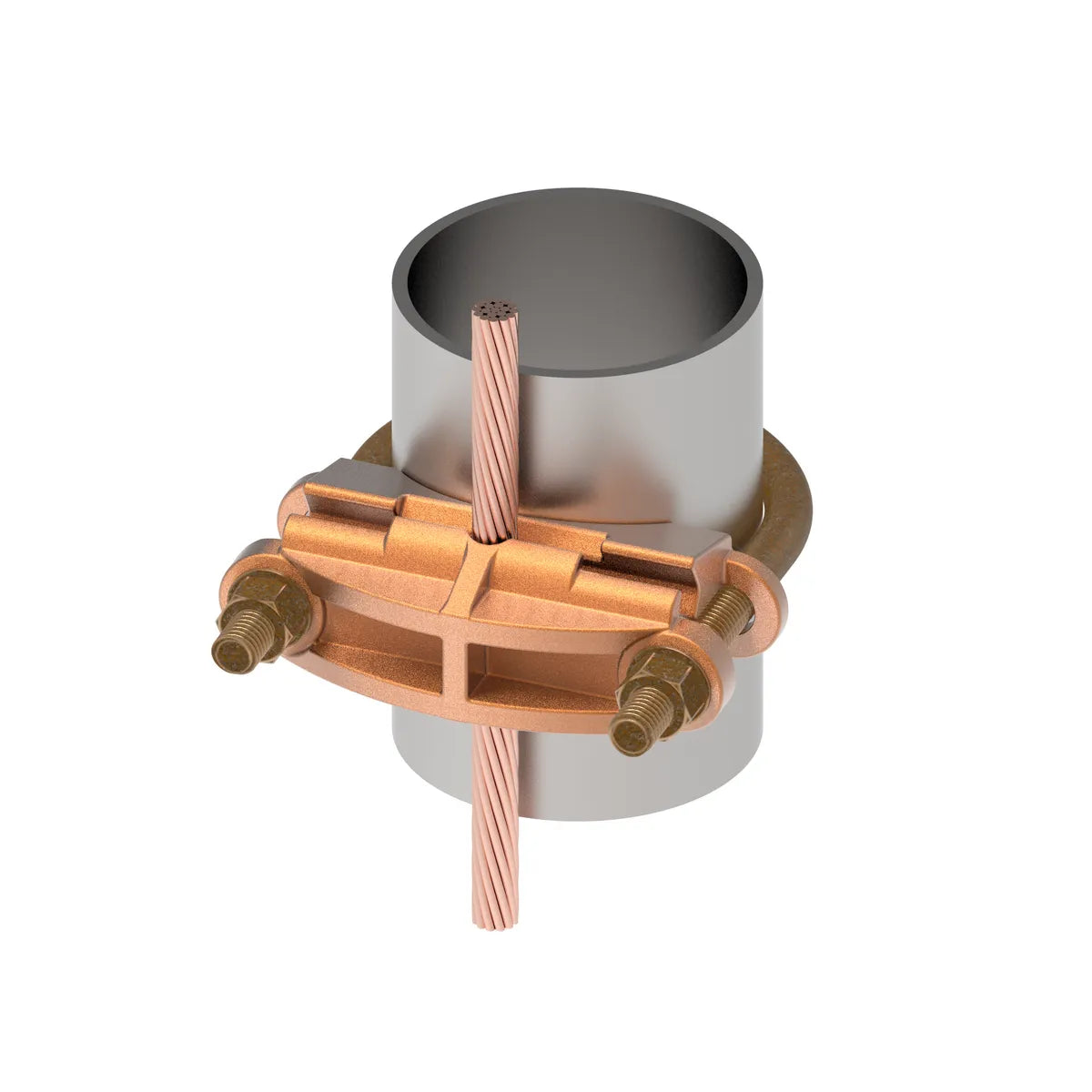

- Parallel or 90° Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application |
For joining a range of cable, parallel or at right angles to rod or tube, direct burial cable, fence post |
| Catalog Number |
GAR2029 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended |
240 LBS/in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Plated |
No |
| Plating Type |
Bright Dipped |
| Sub Brand |
Mechanical Connector |
| Type |
GAR |
| U Bolt Type |
267 |
| UPC |
781810236604 |
| UPC 14 Digit GTIN |
00781810236604 |
Dimensions
| Dimension - B Length inch |
3.50 in |
| Dimension - Height fraction |
5-5/8 in |
| Dimension - Height inch |
5.63 in |
| Dimension - Height mm |
143 mm |
| Dimension - L Length Overall mm |
46 mm |
| Dimension - Length Overall inch |
1.81 in |
| Dimension - Outside Diameter inch |
3.50 in |
| Dimension - Width fraction |
4-3/4 in |
| Dimension - Width inch |
4.81 in |
| Dimension - Width mm |
122 mm |
| Package Height |
0 in |
| Package Length |
0 in |
| Package Weight |
0 lb |
| Package Width |
0 in |
Conductor Related
| Copper Solid Size |
2/0 AWG, 3/0 AWG, 4/0 AWG |
| Copper Solid Size Range |
2/0 AWG – 250 kcmil |
| Copper Stranded Size |
1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil |
| Copper Stranded Size Range |
1/0 AWG – 250 kcmil |
| Copper Tube Standard Size |
3 IPS |
| Copper Tube Standard Size Range |
3 IPS |
| Pipe or Round Tube Size |
3 in |
| Rod Size |
3 – 3.5 in |
| Rod Size Range |
3 in – 3½ in |
| Conductor Type |
- CU Solid Size
- CU Stranded Size
- CU Tube Std Size
- Rod Size
|
Force Related
| Recommended Installation Torque |
240 LBS/in |
Logistics
| Carton Quantity |
12 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
780 |
PRODUCT DATASHEET
GAR2029
