Description

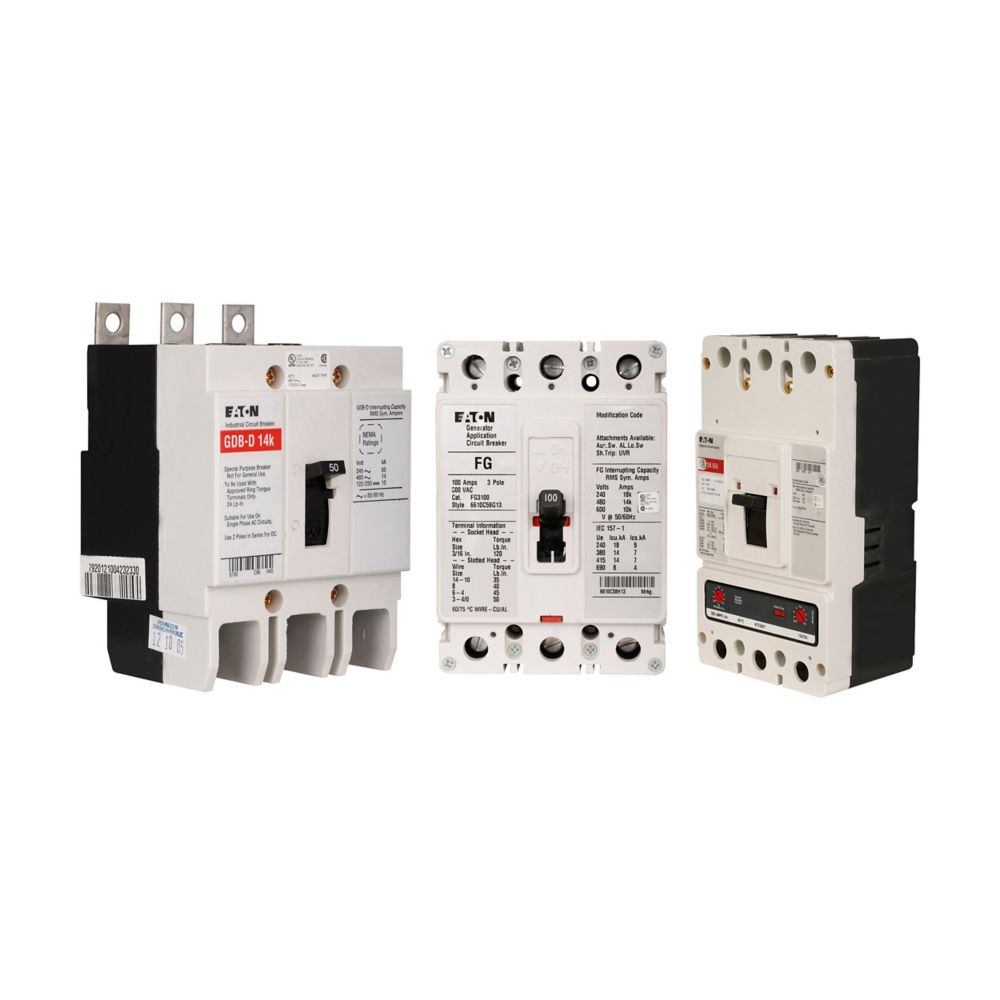

GHB2015 - Eaton Cutler Hammer - 15A Two-Pole Circuit Breakers
Eaton Series C complete molded case circuit breaker, G-frame, GHB, Complete breaker, Fixed thermal, Fixed magnetic trip type, Two-pole, 15 A, 480Y/277 Vac, 125/250 Vdc, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker
|
| Catalog Number |
GHB2015
|
| UPC |
786679911198
|
| Product Length/Depth |
2.63 in
|
| Product Height |
4 in
|
| Product Width |
2 in
|
| Product Weight |
1 lb
|
| Compliances |
Federal Specifications Classification W-C375B
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
15 A
|
| Voltage rating |
480Y/277 Vac, 125/250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
GHB
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Frame |
G
|
| Frequency rating |
50/60 Hz
|
| Interrupt rating |
14 kAIC at 480Y/277 Vac
65 kAIC at 240 Vac |
| Number of poles |
Two-pole
|
| Type |
Molded case circuit breaker
|
