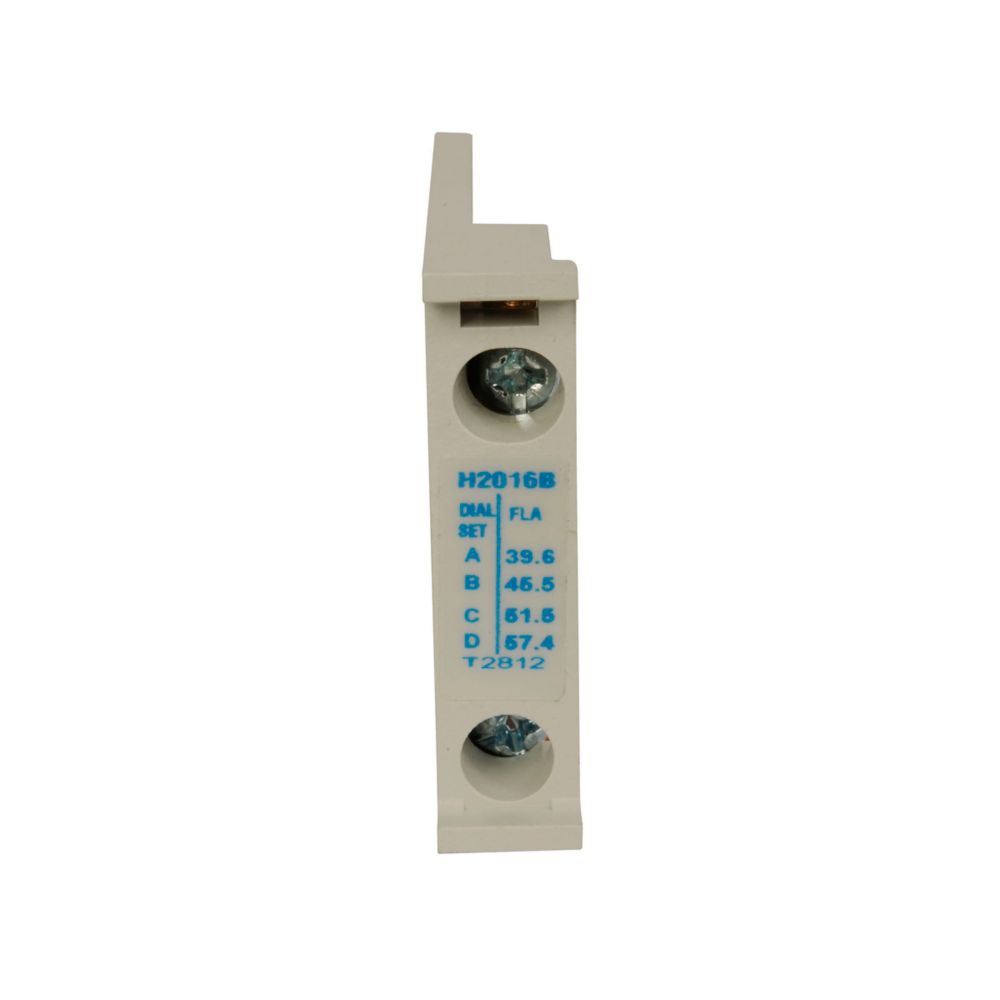

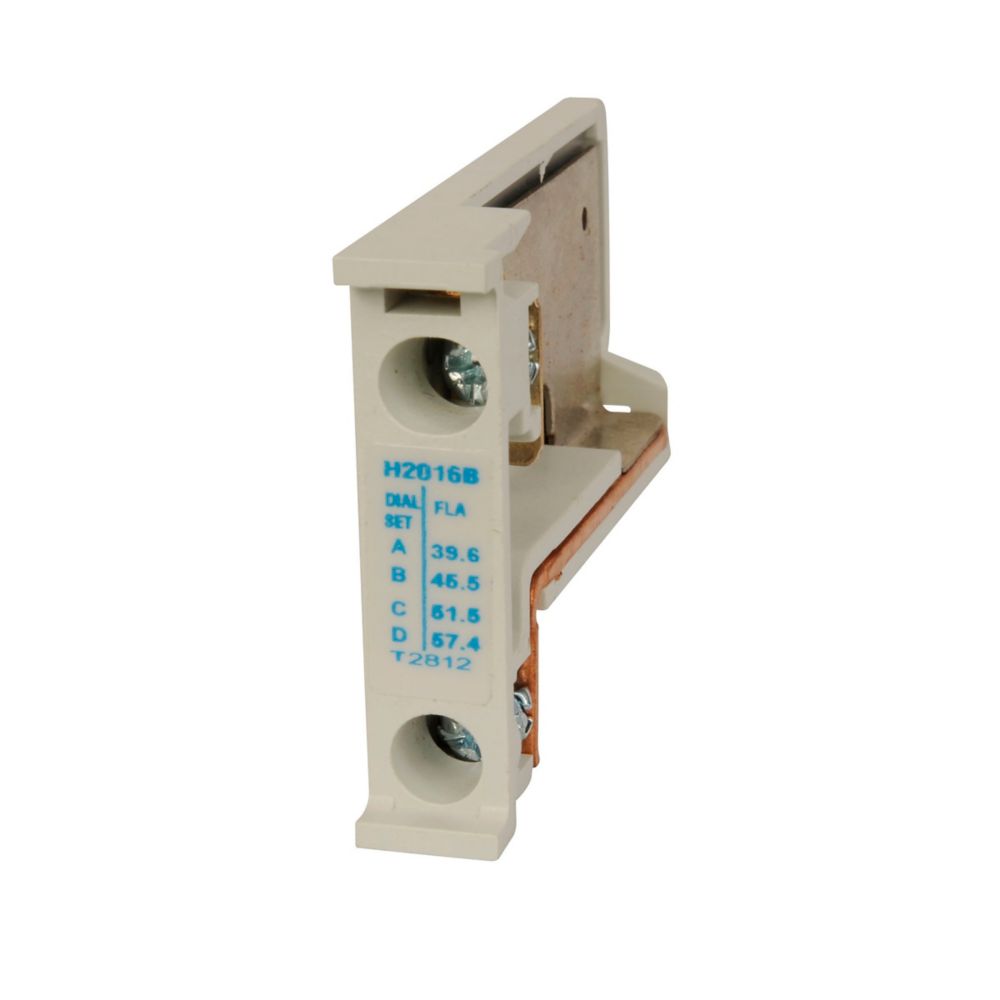

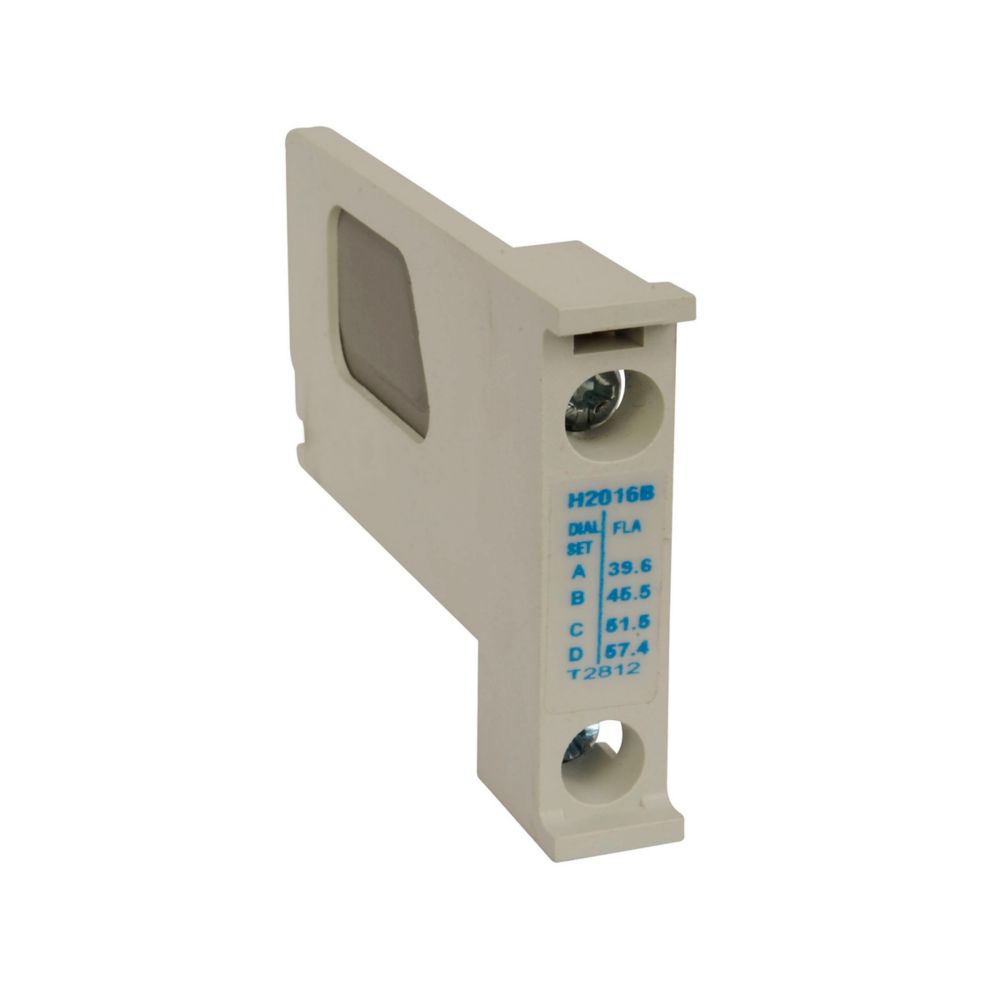

H2016B3 - Eaton Cutler Hammer - 1.8" Freedom NEMA Heater Coil
Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20 , NEMA, IEC , full load range 39.6A 45.5A 51.5A 57.4A Dial positions A B C D respectively, overload relay 75A.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Freedom NEMA heater coil
|
| Catalog Number |
H2016B-3
|
| UPC |
782113967622
|
| Product Length/Depth |
1.8 in
|
| Product Height |
3.2 in
|
| Product Width |
1.8 in
|
| Product Weight |
0.1 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Heater packs are shipped 3 to a carton. Catalog Numbers and prices are for 3 heater packs
|
| Product Type |
Heater coil
|
PRODUCT SPECIFICATIONS
| Design |
NEMA, IEC
|
| Full load current range |
39.6A 45.5A 51.5A 57.4A Dial positions A B C D respectively
|
| Overload relay |
75A
|
| Special features |
Used with starter size 2, IEC Sizes G-K (Series B)
|
| Trip Type |
Standard Trip, Class 20
|
| Type |
Freedom/Definite Purpose Heater Pack
|
| Used with |
Used with starter size 2, IEC Sizes G-K (Series B)
|
