Description

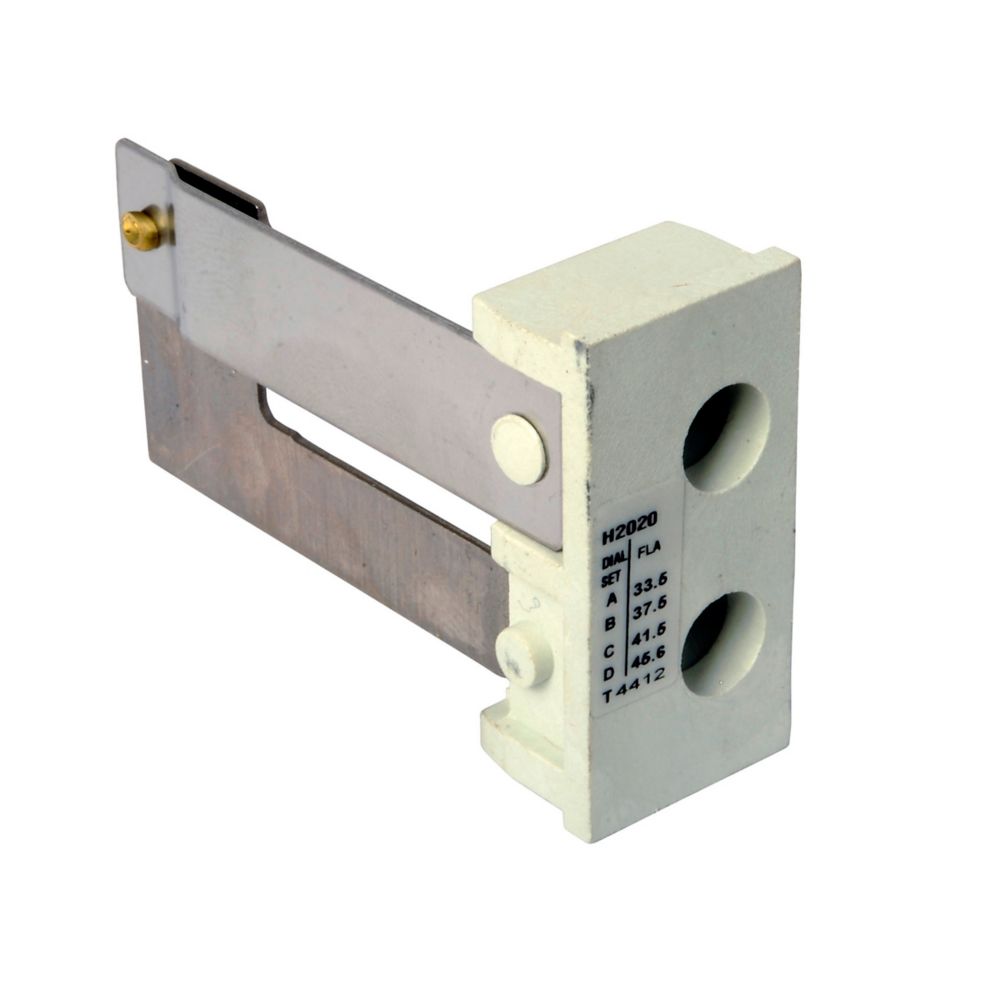

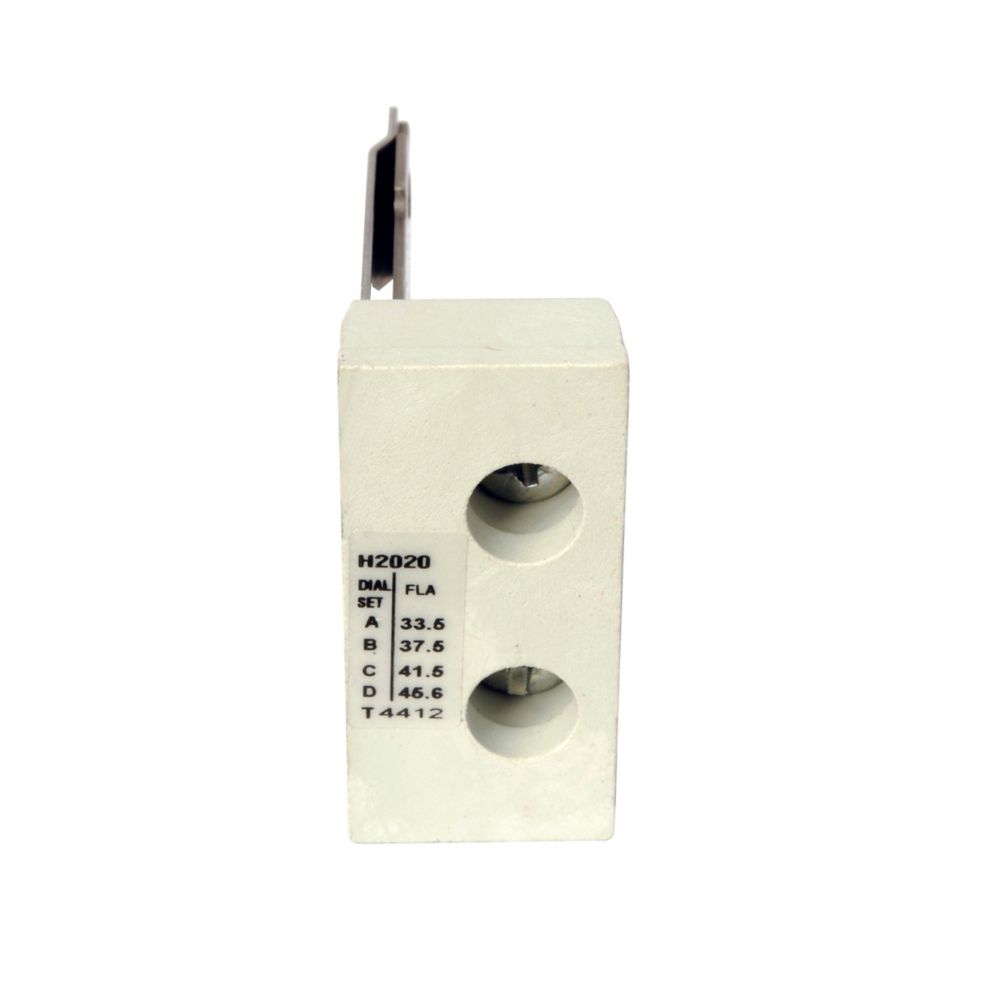

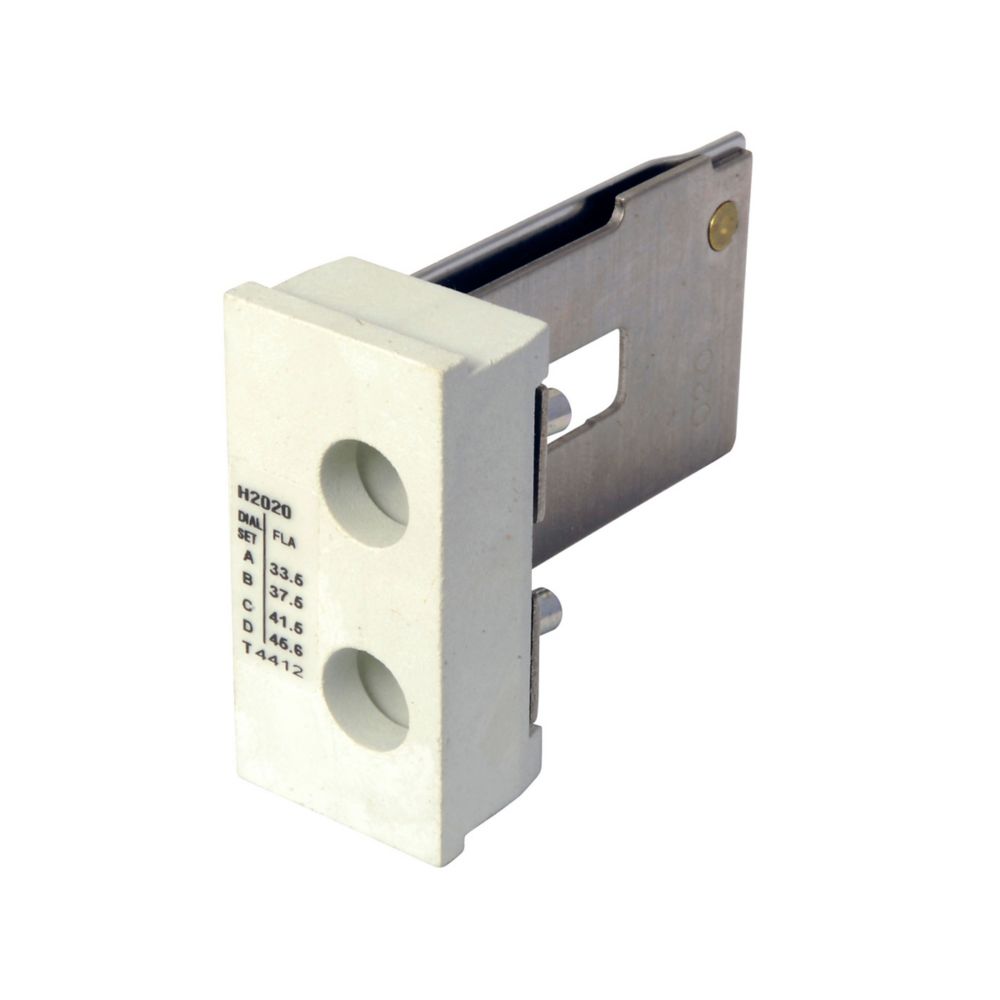

H20203 - Eaton Cutler Hammer - 3.5" Freedom NEMA Heater Coil
Freedom Standard Trip Heater Pack, Standard Trip, Class 20 , NEMA, IEC , full load range 33.5A 37.5A 41.5A 45.6A Dial positions A B C D respectively, overload relay 105 or 144A.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Freedom NEMA heater coil
|
| Catalog Number |
H2020-3
|
| UPC |
782113626598
|
| Product Length/Depth |
3.5 in
|
| Product Height |
2 in
|
| Product Width |
2.5 in
|
| Product Weight |
0.2 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Heater packs are shipped 3 to a carton. Catalog Numbers and prices are for 3 heater packs.
|
| Product Type |
Heater coil
|
PRODUCT SPECIFICATIONS
| Design |
NEMA, IEC
|
| Full load current range |
33.5A 37.5A 41.5A 45.6A Dial positions A B C D respectively
|
| Overload relay |
105 or 144A
|
| Special features |
Used with starter sizes 3-4, IEC Sizes L-N (Series A)
|
| Trip Type |
Standard Trip, Class 20
|
| Type |
Freedom Standard Trip Heater Pack
|
| Used with |
Used with starter sizes 3-4, IEC Sizes L-N (Series A)
|
