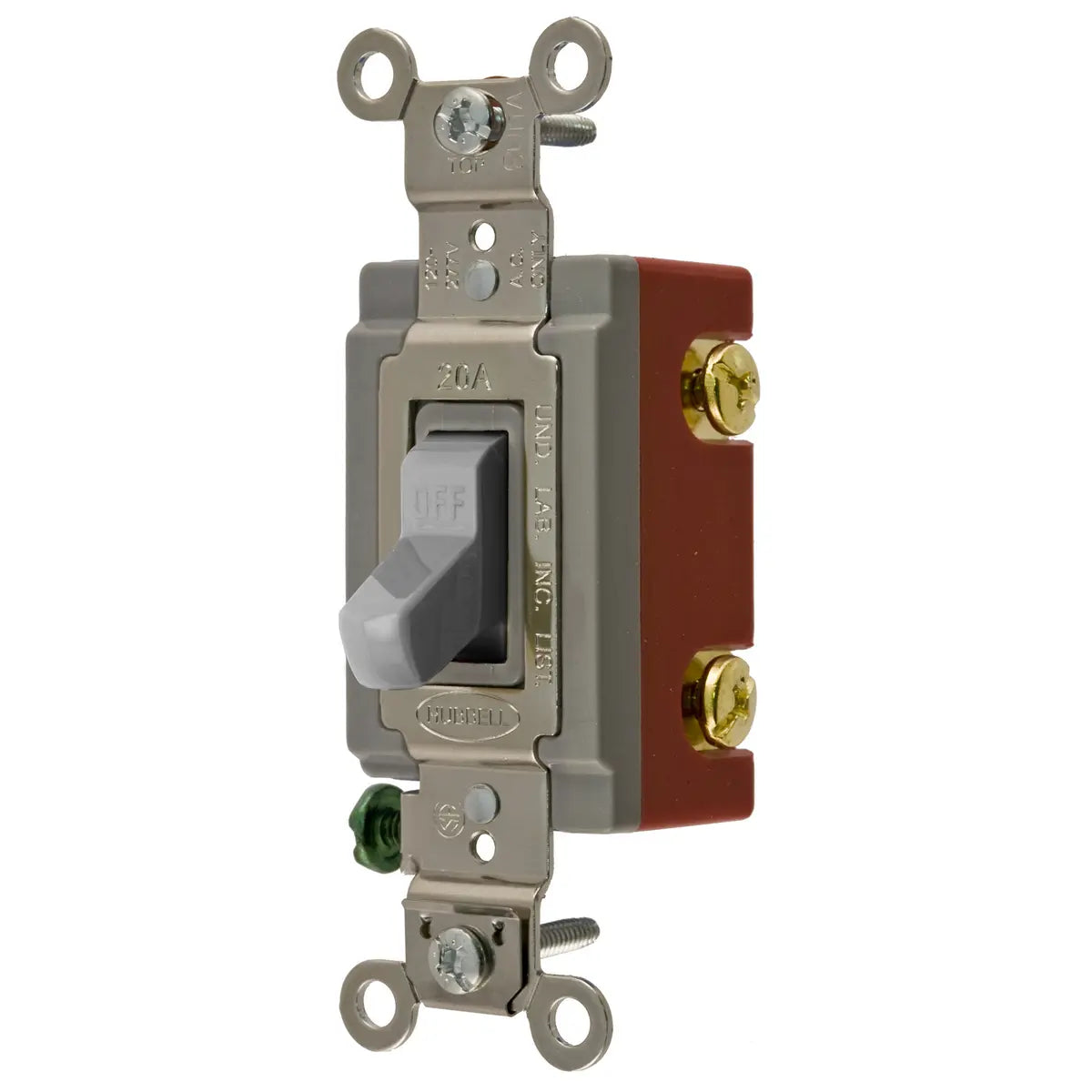

HBL1221GY - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single-Pole Back and Side Wired Toggle Switch

HBL1221GY - Hubbell Wiring Device-Kellems - 20A 120/277V AC Single-Pole Back and Side Wired Toggle Switch

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Gray Toggle

GENERAL SPECIFICATIONS

Application	Back and Side Wired
Catalog Number	HBL1221GY
Color	Gray
EU RoHS Indicator	No
Number of Poles	Single Pole
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Performance	Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Series	Extra Heavy Duty
Specifications	Base Material - Thermoset, Red Contacts - Silver Alloy Ground Screw - Brass (Green) Terminal Screws - Brass Toggle Material - Nylon Top Material - Thermoset
Style	Single Pole
Type	Toggle
UPC	783585431369

Dimensions

Dimensions	4.06 in x 1.31 in x 1.87 in
Height	1.87 in
Length	4.06 in
Width	1.31 in
Weight	0.2 lb



Electrical Ratings

Amperage Rating	20 A
Connectivity	Back and Side Wired
Current / Amperage Rating	20 A
Current Rating	20 A
Dielectric Strength	Withstands 1500V AC minimum for 1 minute
Temperature Rise – Max.	30°C maximum at rated current
Voltage Rating	120–277 VAC
Voltage Rating Description	120–277 VAC



Conductor Related

Wire Size

#14 AWG to #10 AWG



Logistics

Carton Quantity	10
Pallet Quantity	4500
