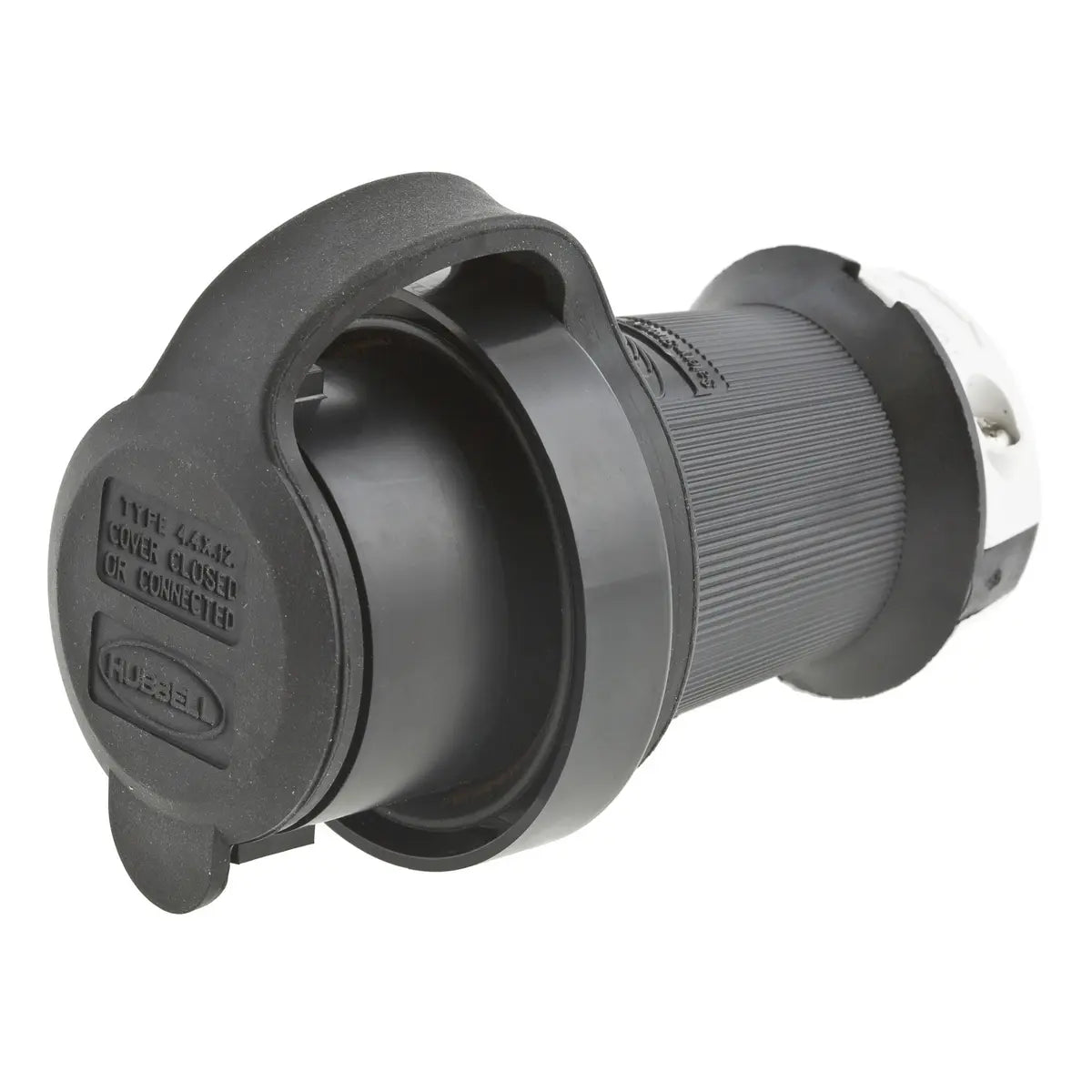

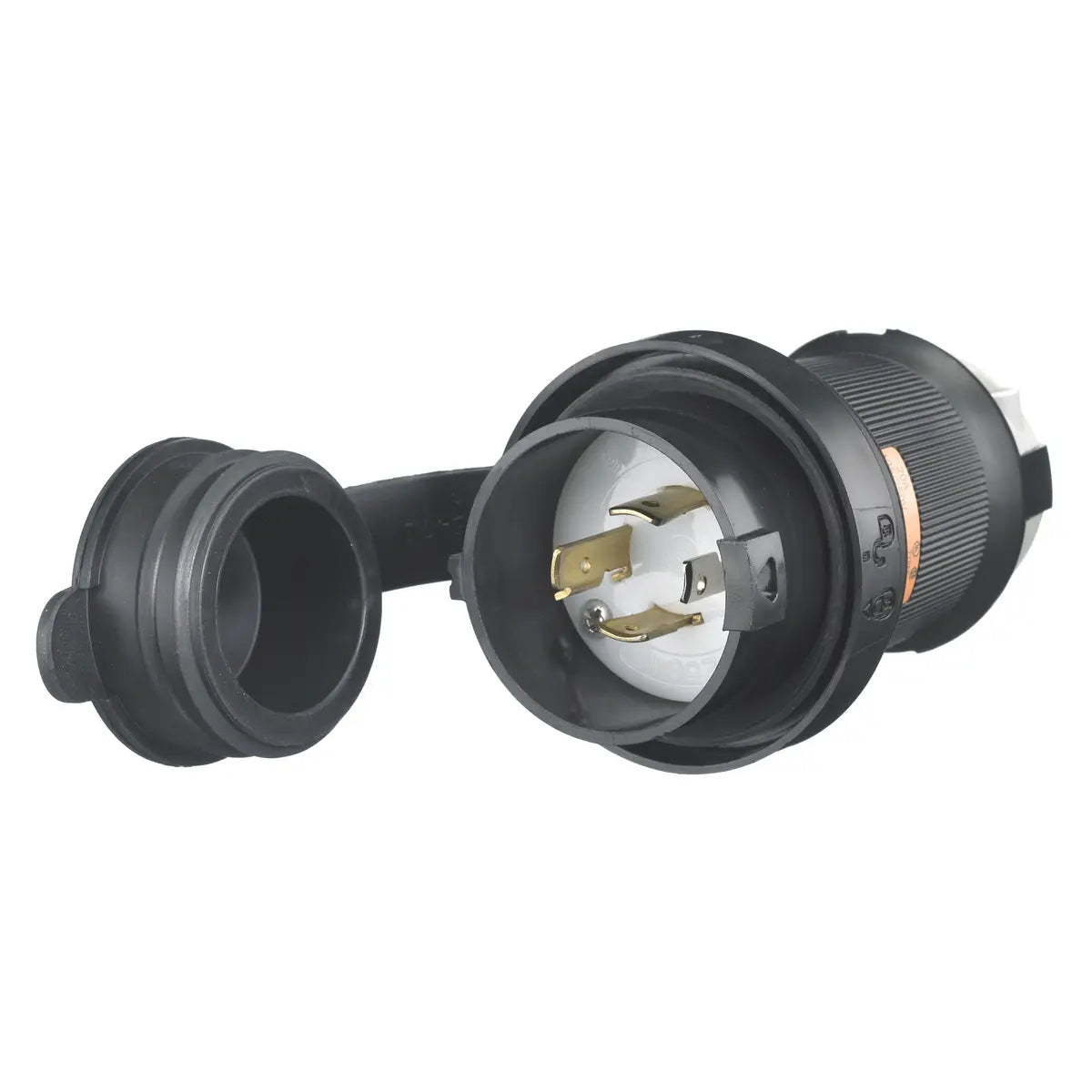

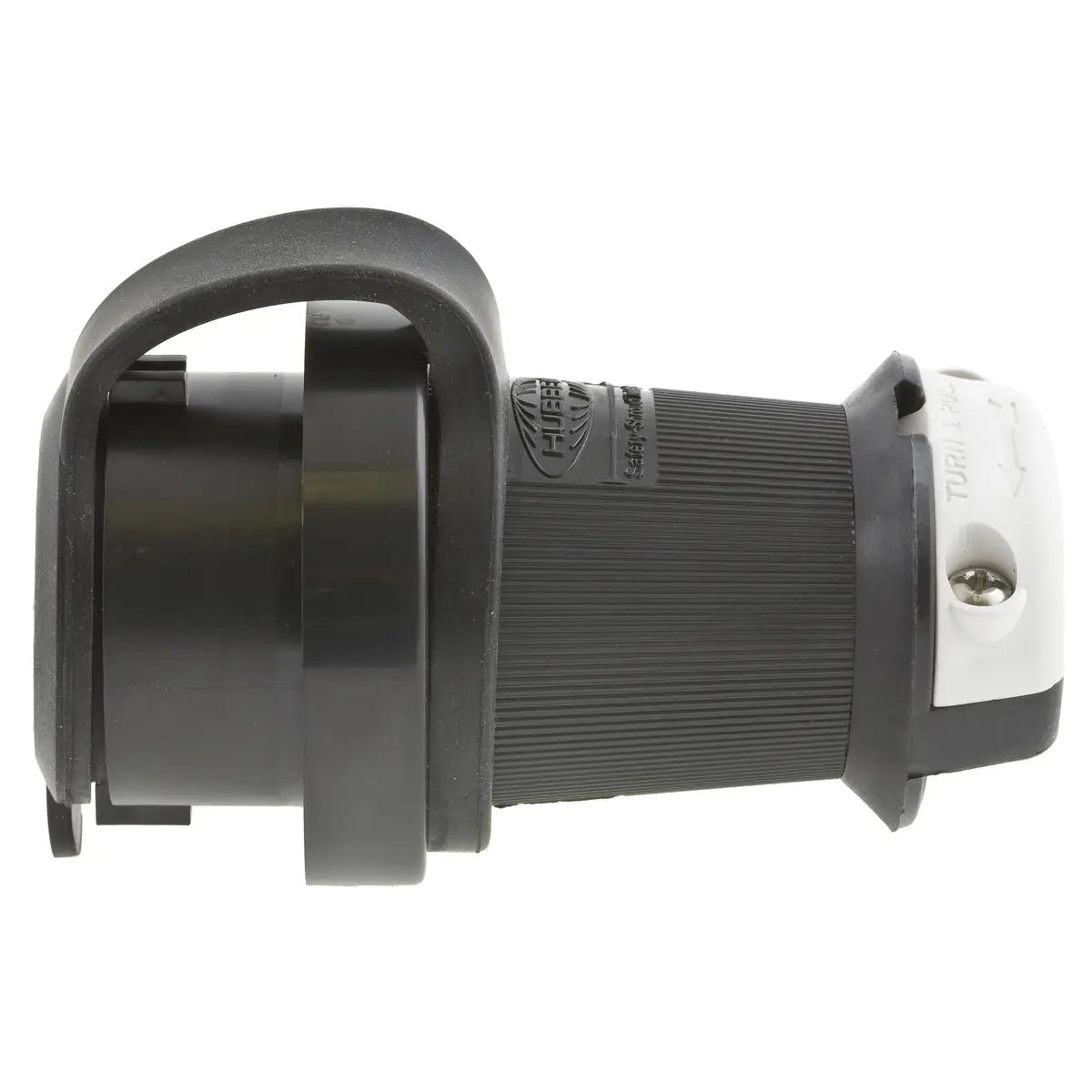

HBL2411SW - Hubbell Wiring Device-Kellems - 20A 125/250V Male Plug 3-Pole 4-Wire Grounding Twist-Lock Device
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug 20A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-20P, Screw Terminal, Black PBT housing, White PBT clamps.
- Impact resistant shroud protects blades against bending and breaking.
- Reduces exposure to arcing when connecting or disconnecting under load.
- Superior cord grip design protects terminations from excess strain.
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2411SW |
| Cord Range |
0.350" - 1.150" (9-29) |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
Contact Manufacturer |
| Horsepower - Maximum |
2 (1) |
| Item Type |
20A Watertight Safety-Shroud® Plug |
| Material |
Composite |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V0 per UL94 or CSA 22.2 No 0.17
- Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Assembly Screws - Stainless Steel
- Blades - Brass
- Closure Plug - Santoprene
- Housing / Cord Clamp - PBT
- Terminal Clamp - Cold rolled steel – nickel plated
- Terminal Retainer - Clear polycarbonate
- Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)
- Watertight Gland - Neoprene
|
| Type |
Plugs |
| UPC |
783585231280 |
Dimensions
| Dimensions |
2.94 in x 2.94 in x 4.40 in |
| Display Size |
Standard Sized |
| Height |
4.4 in |
| Length |
2.94 in |
| Weight |
0.7 lb |
| Width |
2.94 in |
Electrical Ratings
| Amperage Rating |
20 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
20 A |
| Current Rating |
20 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125/250 V |
| Voltage Rating Description |
125/250 VAC |
Conductor Related
| Cable Range |
0.350 - 1.150 in |
| Number Of Poles |
3-Pole |
| Number Of Wires |
4-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Horsepower - Maximum |
2 (1)
|
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V0 per UL94 or CSA 22.2 No 0.17
- Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Configuration
| Cord Type |
All Listed Portables
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
960 |
