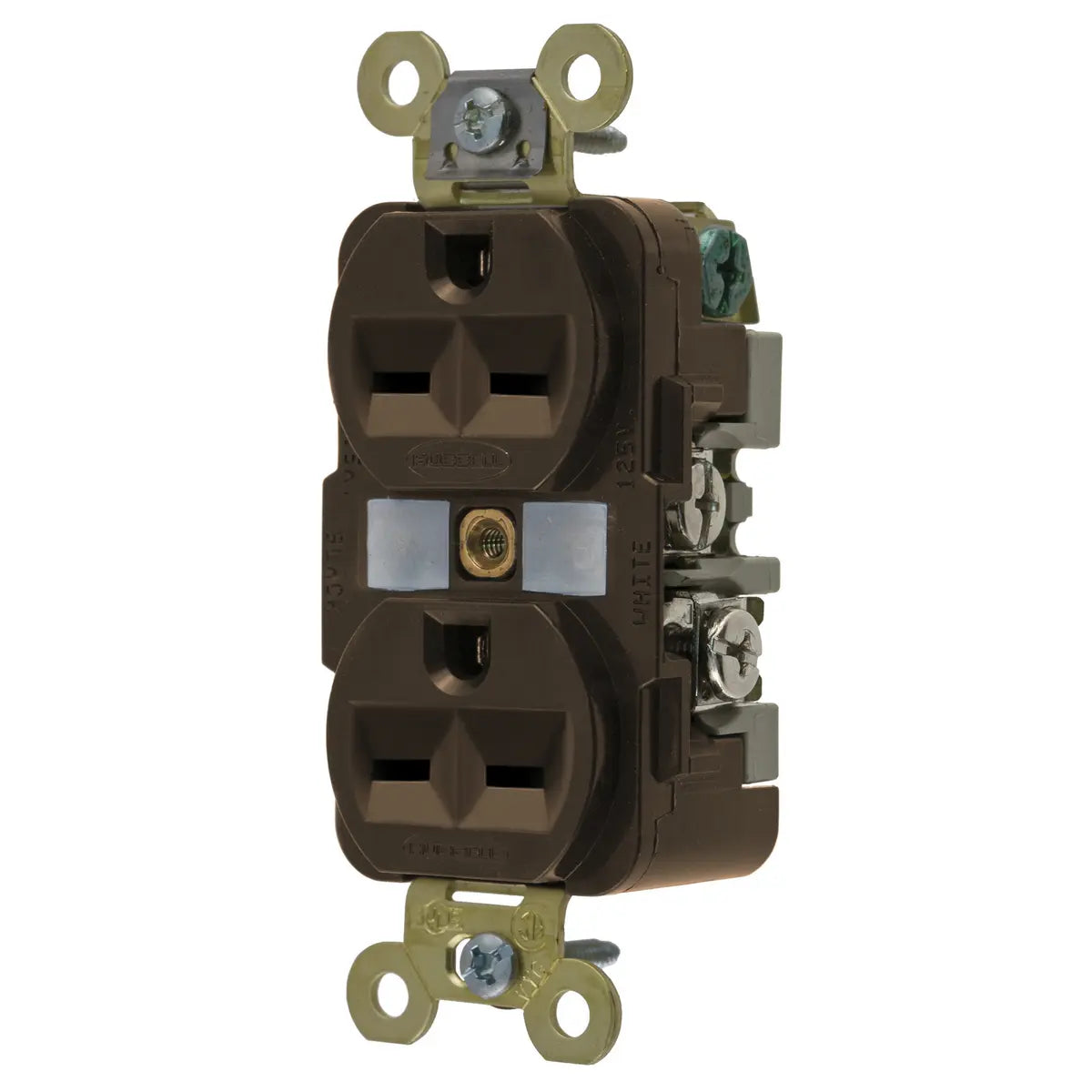

HBL5662 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices
Roll over image to zoom in Click on image to zoom
HBL5662 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices

HBL5662 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices

HubbellSKU: HUBHBL5662
Price:
$44.59
Stock:
Sold out

Description

HBL5662 - Hubbell Wiring Device-Kellems 15A 250V 2 Pole 3 Wire Duplex Receptacle Straight Blade Devices

Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack

  • Deep nylon body design delivers increased impact resistance
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID face

Standard

GENERAL SPECIFICATIONS

Application Extra Heavy Duty
Catalog Number HBL5662
Color Brown
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 1.5
Item Type Traditional Duplex
Material Nylon
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Specifications
  • Automatic Self-grounding Clip - Stainless steel
  • Base - PBT
  • Clamping Plate - Nickel plated brass
  • Face - Nylon
  • Mounting Screws - Zinc plated steel
  • Mounting Strap - .050 in. (1.3) Brass
  • Power Contacts - .036 in. (.9) Brass
  • Terminal Screws - Plated brass
  • Wire Clamps - .031 in. (.8) Brass
UPC 783585435541



Dimensions

Dimensions 3.28 in x 1.65 in x 1.19 in
Display Size Standard Sized Product
Height 1.19 in
Length 3.28 in
Weight 0.25 lb
Width 1.65 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Back and Side Wired
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 250 V
Voltage Rating Description 250 V
Wattage 3750 W



Conductor Related

Number Of Poles 2-Pole
Number Of Wires 3-Wire
Wire Size #14 AWG to #10 AWG



Operational

Horsepower - Maximum
1.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA



Logistics

Carton Quantity 10
Pallet Quantity 4500



PRODUCT DATASHEET

Wiring HBL5662 Specification Sheet
