Description

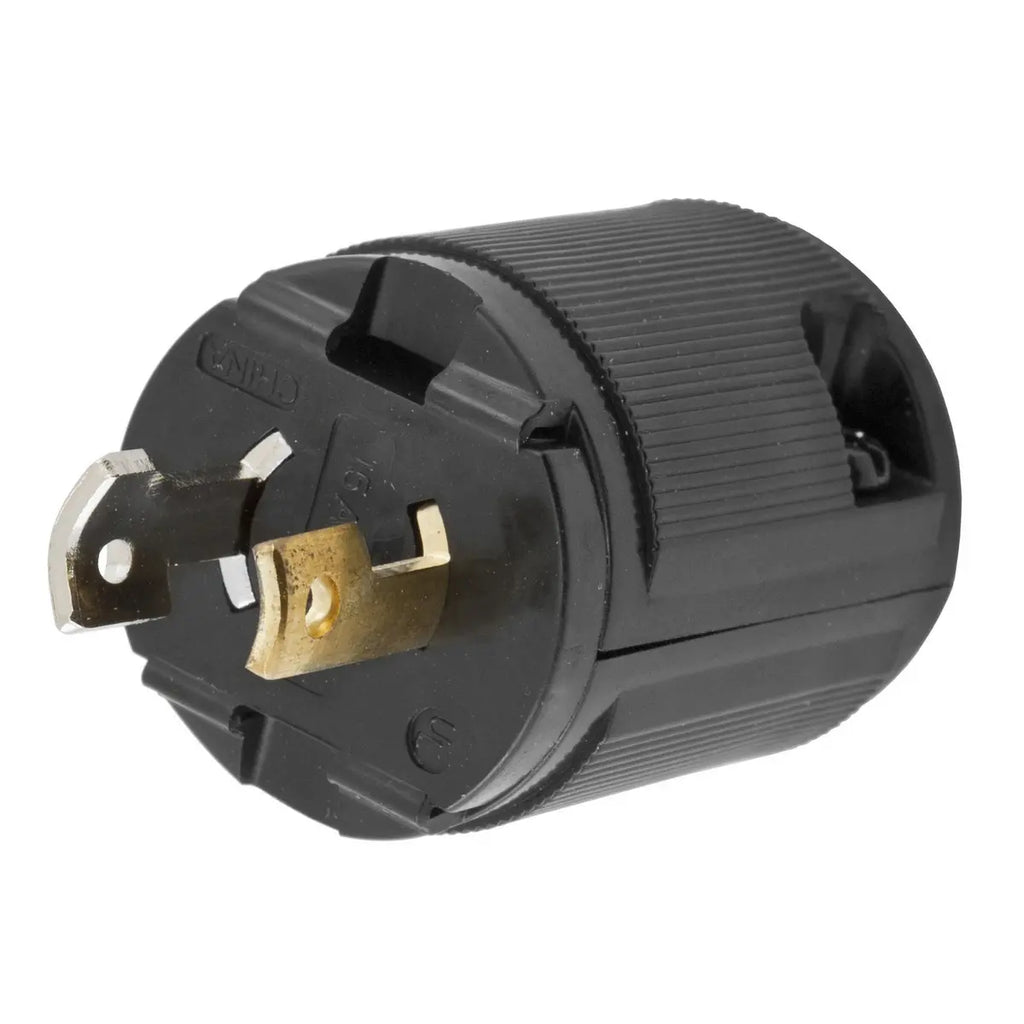

HBL7465V - Hubbell Wiring Device-Kellems - 15A/125V 2-Pole 2-Wire Non-Grounding Male Plug Valise Midget Twist-Lock Devices
Locking Devices, Midget Twist-Lock®, Valise®, Male Plug, 15A 125V, 2-Pole 2-Wire Non Grounding, NEMA ML-1P, Screw Terminal, Black.
- Fully insulated, abuse resistant nylon housing
- Powerful, cord-gripping jaws
- Totally insulated body adds extra measure of safety
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number | HBL7465V |
| Color | Black |
| Cord Range | 0.220" - 0.385" (5.6 - 9.8 mm) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Item Type | 15A Midget Twist-Lock® Valise® Plug |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C, Minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Plugs |
| UPC | 783585237282 |
Dimensions
| Dimensions | 1.25 in x 1.06 in x 1.06 in |
| Display Size | Midget Locking |
| Height | 1.06 in |
| Length | 1.25 in |
| Weight | 0.05 lb |
| Width | 1.06 in |
Electrical Ratings
| Amperage Rating | 15 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 15 A |
| Current Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
Conductor Related
| Cable Range | 0.220 - 0.385 in |
| Number Of Poles | 2-Pole |
| Number Of Wires | 2-Wire |
| Wire Size | #18 AWG to #14 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Configuration
| Cord Type | All Listed Portables |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 8400 |
