Description

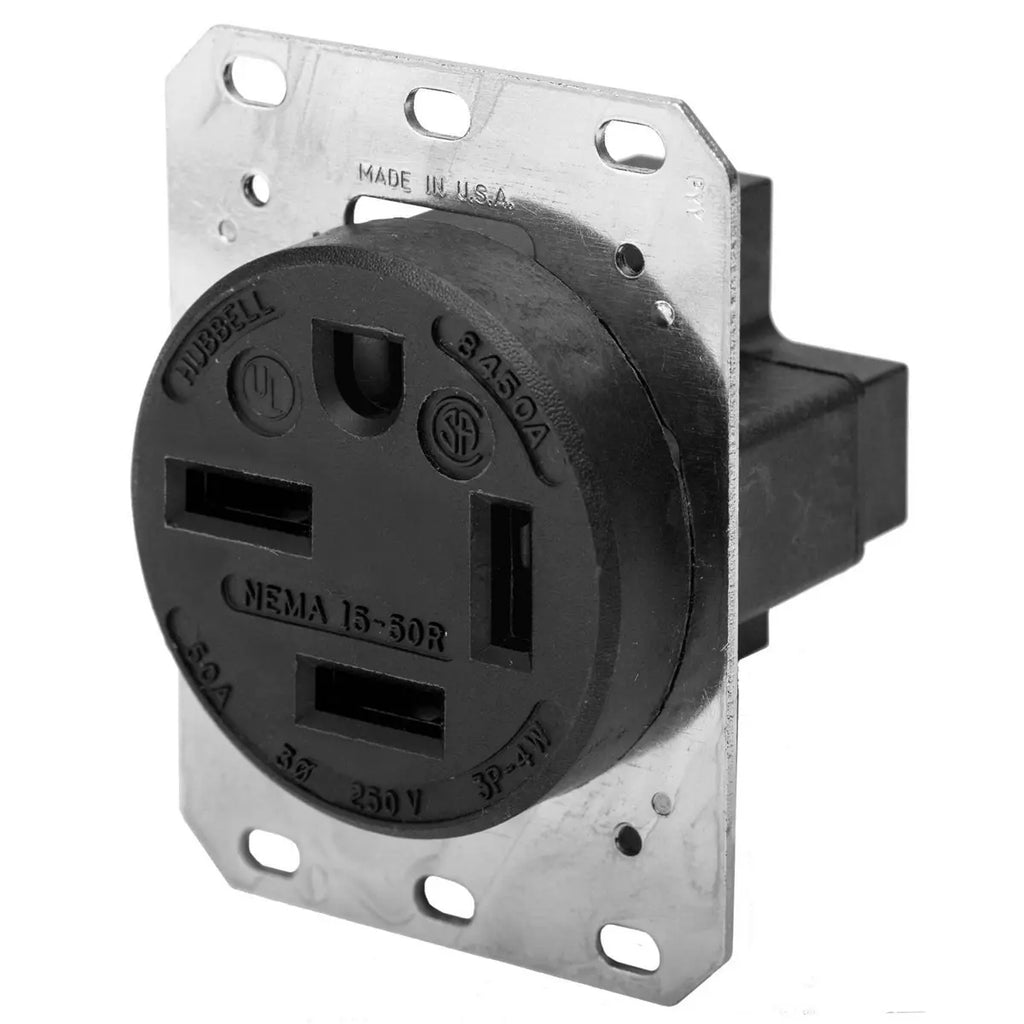

HBL8450A - Hubbell Wiring Device-Kellems 50A 250V 3 Pole 4 Wire Receptacle Straight Blade Devices
Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 3-Pole 4-Wire Grounding, 50A 3 Phase 250V AC, 15-50R, Black, Single Pack.
- Catalog number, ratings and certifications molded in face
- Sequenced contacts assure protection
- One piece design power and ground contacts
Standard
GENERAL SPECIFICATION
| Catalog Number | HBL8450A |
| Color | Black |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 7.5 |
| Item Type | Single |
| Material | Thermoplastic/Composite |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| UPC | 783585015156 |
Dimensions
| Display Size | Standard Sized Product |
| Length | 3.28 in |
| Weight | 0.6 lb |
| Width | 1.81 in |
Electrical Ratings
| Amperage Rating | 50 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Current / Amperage Rating | 50 A |
| Current Rating | 50 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Three Phase |
| Voltage Rating | 250 VAC |
| Voltage Rating Description | 250 VAC |
| Wattage | 12500 W |
Conductor Related
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #12 AWG to #6 AWG |
Operational
| Horsepower - Maximum | 7.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 1800 |
