Description

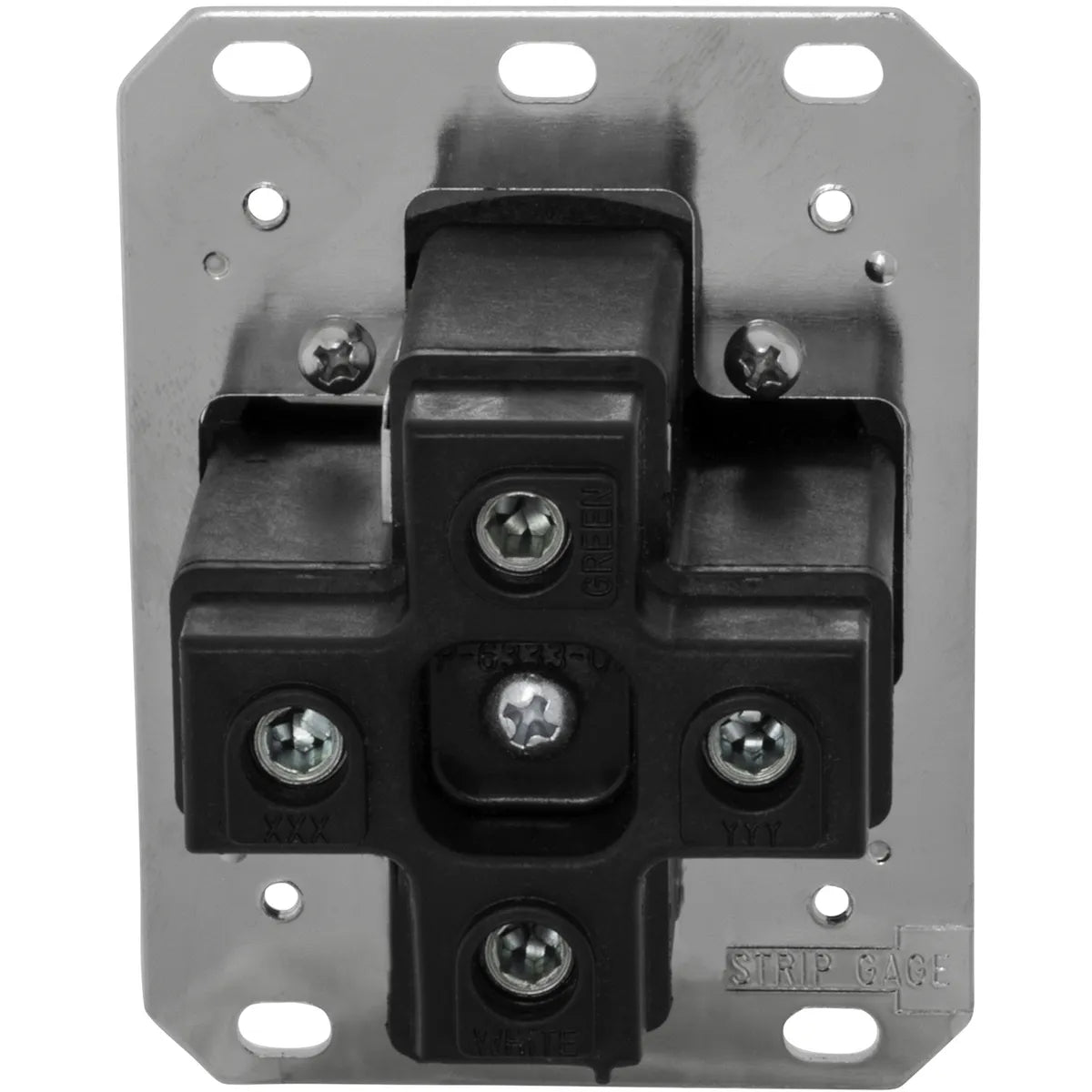

HBL9450A - Hubbell Wiring Device-Kellems 50A 125/250V 3 Pole 4 Wire Receptacle Straight Blade Devices
Designed for plug-in EV charging applications, Hubbell’s 14-50R receptacle is a premium and dependable solution to exceed the requirements of electric vehicle owners. This receptacle ensures a safe and efficient charging experience, providing peace of mind to EV users.
- Tailored for EV Charging: This receptacle is purpose-built to cater to the specific needs of EV charging. It incorporates features and specifications that are optimized for the safe and efficient charging of electric vehicles.
- Industrial-Grade Construction: This EV receptacle boasts a robust and durable construction. It is engineered using high quality materials that can withstand demanding environments, ensuring long-lasting performance and reliability.
- Secure Connection: Terminal box shields against loose wires and external damage with a durable enclosure. Features a clamping mechanism for tight, efficient wire termination, reducing power loss or overheating risks.
- Contact Force & Durability: Thick wall terminal box offers 50% greater contact force for secure connections, minimizing power interruptions. Designed for heavy use, it withstands frequent insertions and removals, ensuring lasting performance.
- Fast & Efficient Charging: Features a 3-pole, 4-wire grounding for secure EV charging, minimizing electrical faults. With a 50A, 125/250V rating, it ensures high-power, faster charging times, promoting safety and efficiency.
- Effortless Installation: This EV Charging Receptacle is designed for easy setup, featuring a straightforward wiring mechanism suitable for both professional electricians and DIY enthusiasts, ensuring a hassle-free installation process.
Standard
GENERAL SPECIFICATION
| Catalog Number | HBL9450A |
| Color | Black |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 3 |
| Item Type | Single |
| Material | Thermoplastic/Composite |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Receptacle |
| UPC | 783585015316 |
Dimensions
| Dimensions | 3.28 in x 2.75 in x 2.44 in |
| Display Size | Standard Sized Product |
| Height | 2.44 in |
| Length | 3.28 in |
| Weight | 0.7 lb |
| Width | 2.75 in |
Electrical Ratings
| Amperage Rating | 50 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Current / Amperage Rating | 50 A |
| Current Rating | 50 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating Description | 125/250 V |
| Voltage Rating |
|
| Wattage | 12500 W |
Conductor Related
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire Grounding |
| Wire Size | #12 AWG to #4 AWG |
Operational
| Horsepower - Maximum | 3 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 5 |
| Pallet Quantity | 1800 |
PRODUCT DATASHEET
