Description

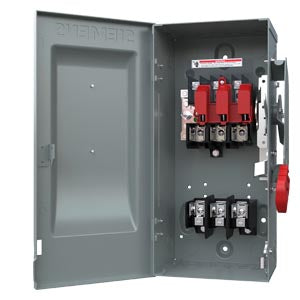

HF362 - Siemens - 60 Amp 3-Pole 600 Volt Fused Heavy Duty Safety Switch
HF362 is a 3-pole, 60 A fusible heavy-duty safety switch rated for up to 600 VAC (and 600 V DC), enclosed in a NEMA 1 indoor steel housing. It features a quick-make/quick-break mechanism, visible double-break blades, UL-98 certification, typical operational life of ~10,000 cycles, and supports up to 25 hp at 600 V AC.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:HF362 |
| MFN | HF362 |
| UPC | 783643151017 |
| Commodity Code | 8536509045 |
Pricing related
| Price Group | N3H |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 14 Day/Days |
| Packaging dimensions (L x W x H) | 16.62 x 10.37 x 8.67 inch |
| Net weight | 18.001 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | No |
| Compliance with the substance restrictions according to RoHS directive | not available |
| SCIP Number | not available |
Siemens specific
| Product Group | 5203 |
| Catalog ID | LV10.1 |
| Group Code | P320 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
