Description

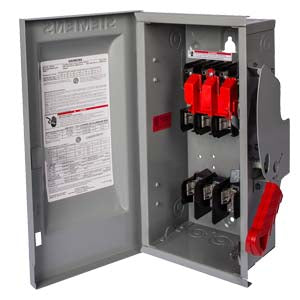

HF363S - Siemens - 3-Pole 600V Heavy Duty Safety Switch
Siemens Heavy Duty Safety Switch features a 3R enclosure, fusible type, accepts class R fuses. The safety switch has a current rating of 100 amps with a voltage rating of 600v has an interrupt rating of 200kA@600V.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:HF363S |
| MFN | HF363S |
| UPC | 783643151994 |
| Commodity Code | 8536509045 |
Pricing related
| Price Group | N3J |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 31 Day/Days |
| Packaging dimensions (L x W x H) | 27.95 x 14.57 x 8.27 inch |
| Net weight | 28.462 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | No |
| Compliance with the substance restrictions according to RoHS directive | not available |
| SCIP Number | not available |
Siemens specific
| Product Group | 5203 |
| Catalog ID | LV10.1 |
| Group Code | P320 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
