Description

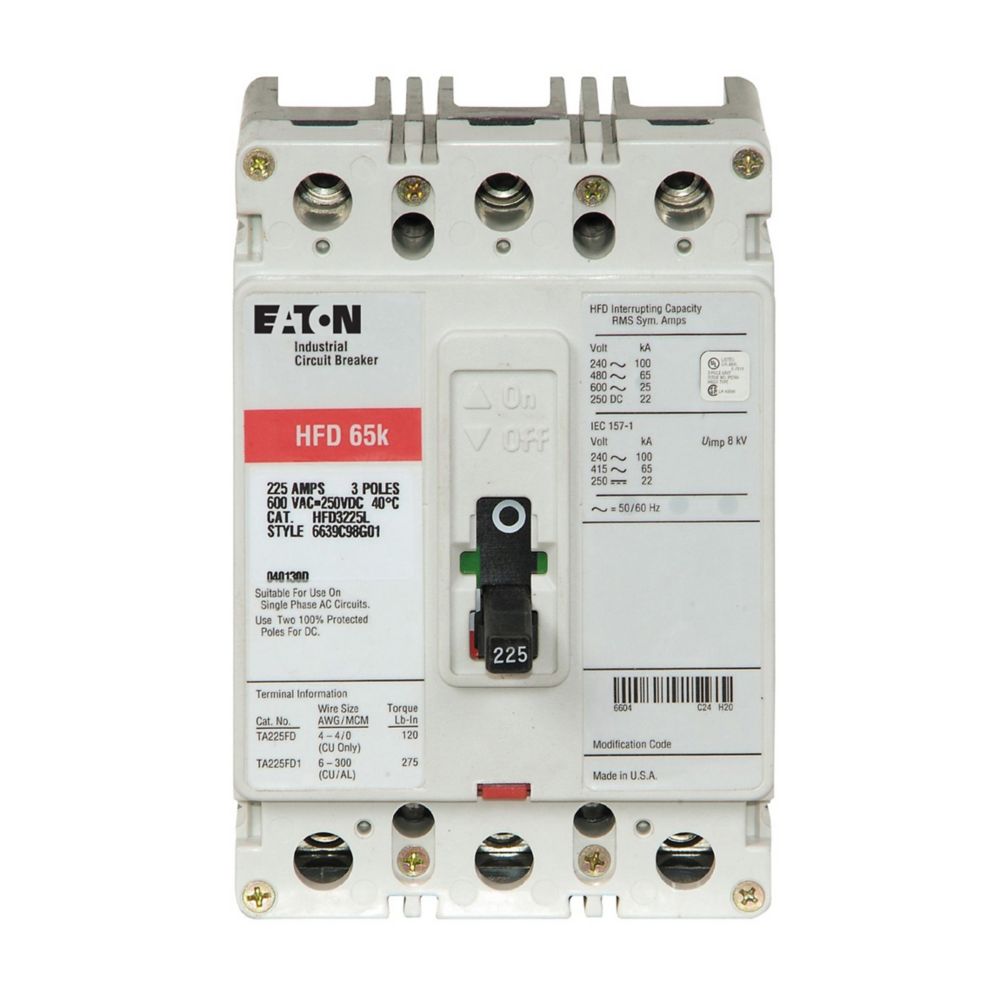

HFD3225L - Eaton Cutler-Hammer - Feed Thru 225 Amp 3 Pole 600 Volt Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, Series C, F-frame molded case circuit breaker, 225A, Three-pole, Line and load terminals, Thermal magnetic trip
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker
|
| Catalog Number |
HFD3225L
|
| UPC |
786679015452
|
| Product Length/Depth |
3.38 in
|
| Product Height |
4.13 in
|
| Product Width |
4.13 in
|
| Product Weight |
5 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
225 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
HFD
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Frame |
F
|
| Frequency rating |
50 to 60 Hz
|
| Interrupt rating |
100 kAIC at 240 Vac
65 kAIC at 480 Vac |
| Number of poles |
Three-pole
|
PRODUCT DATASHEET
