Description

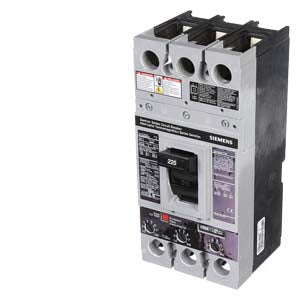

HFXD63B225 - Siemens - 225A 600V 3 Pole Circuit Bolt-On Circuit Breakers
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY AND NON-INTERCHANGEABLE TRIP. MEETS UL 489 / IEC 60947-2 STANDARDS. 225A 3-POLE BREAKER (25KAIC AT 600V) (65KAIC AT 480V). SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 4.5 x 9.5 x 4.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:HFXD63B225 |
| MFN | HFXD63B225 |
| UPC | 783643318502 |
| Commodity Code | 8536200020 |
Pricing related
| Price Group | NJB |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 23 Day/Days |
| Packaging dimensions (L x W x H) | Not available |
| Net weight | 8.501 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 04/03/2009 |
| SCIP Number | not available |
Siemens specific
| Product Group | 3741 |
| Catalog ID | LV10.1 |
| Group Code | P360 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
