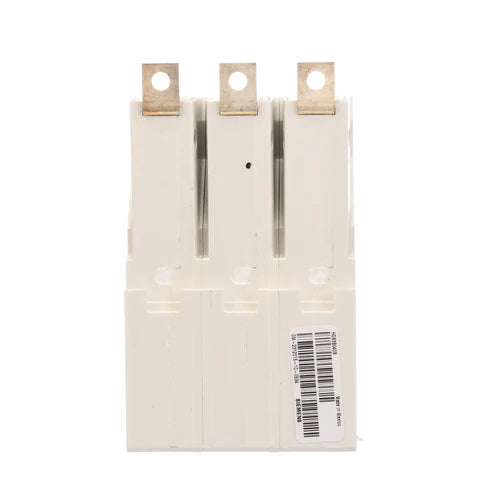

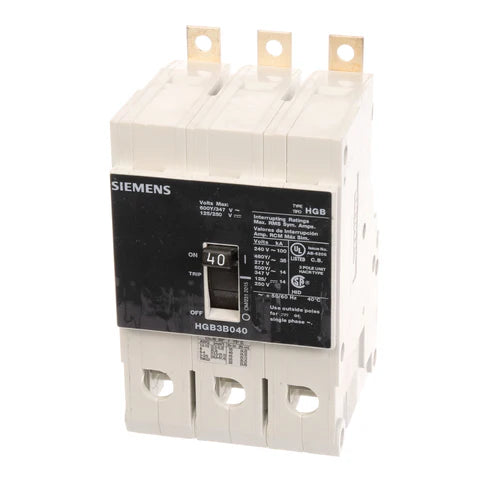

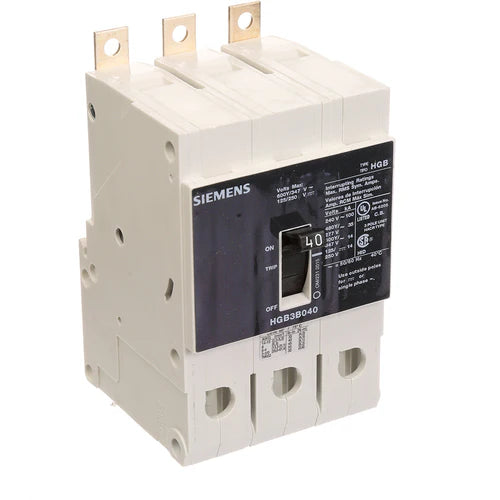

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. UL LISTED HGB FRAME WITH HIGH BREAKING CAPACITY. 40A 3-POLE (14KAIC AT 600Y/347V) (35KAIC AT 480Y/277V). SPECIAL FEATURES: LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE: 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.4 x 2.8.
TECHNICAL SPECIFICATIONS
Product related
Article number
US2:HGB3B040B
MFN
HGB3B040B
UPC
887621219819
Commodity Code
8536200020
Pricing related
Price Group
ND1
Delivery related
Export Control Regulations
ECCN : EAR99 / AL : N
Standard delivery time
18 Day/Days
Packaging dimensions (L x W x H)
Not available
Net weight
2.756 lb
Quantity Unit
1 Piece
Packaging Quantity
1
Dangerous goods
No
Environment related
WEEE (2012/19/EU) Take-Back Obligations
Yes
Compliance with the substance restrictions according to RoHS directive
