Description

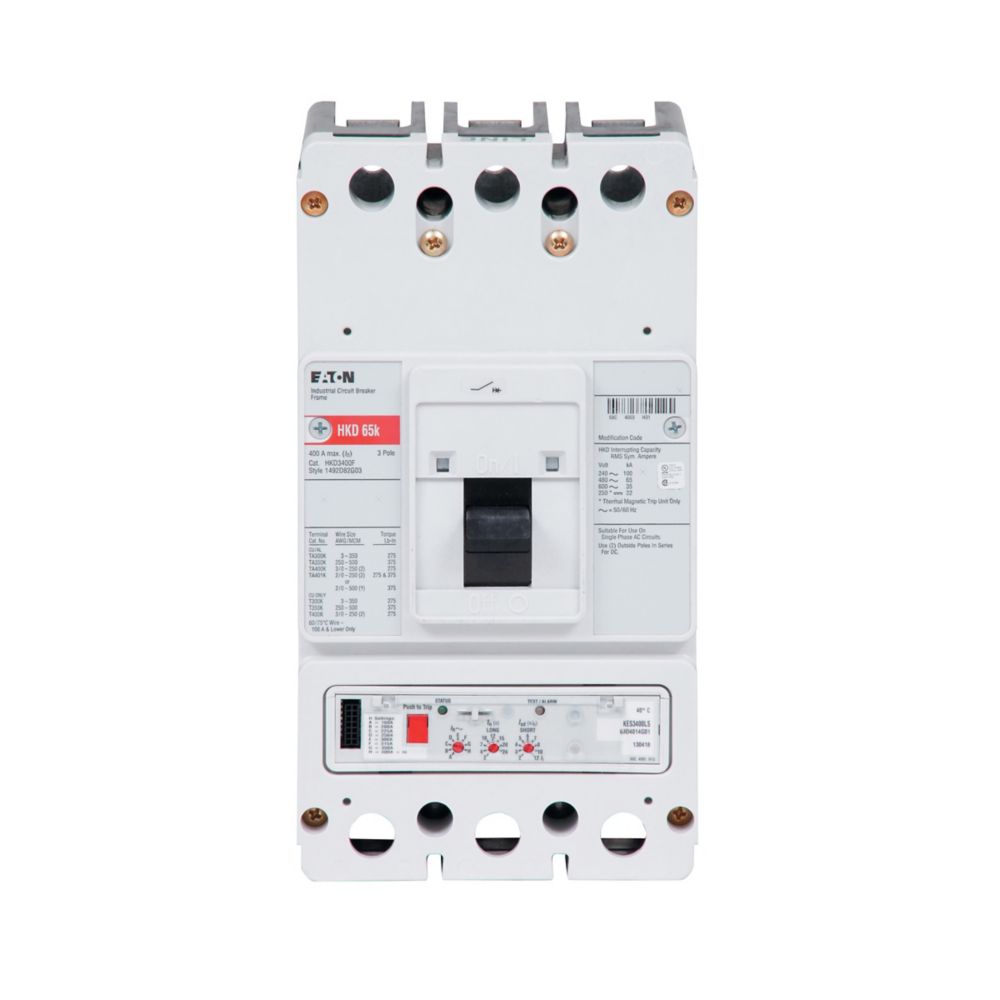

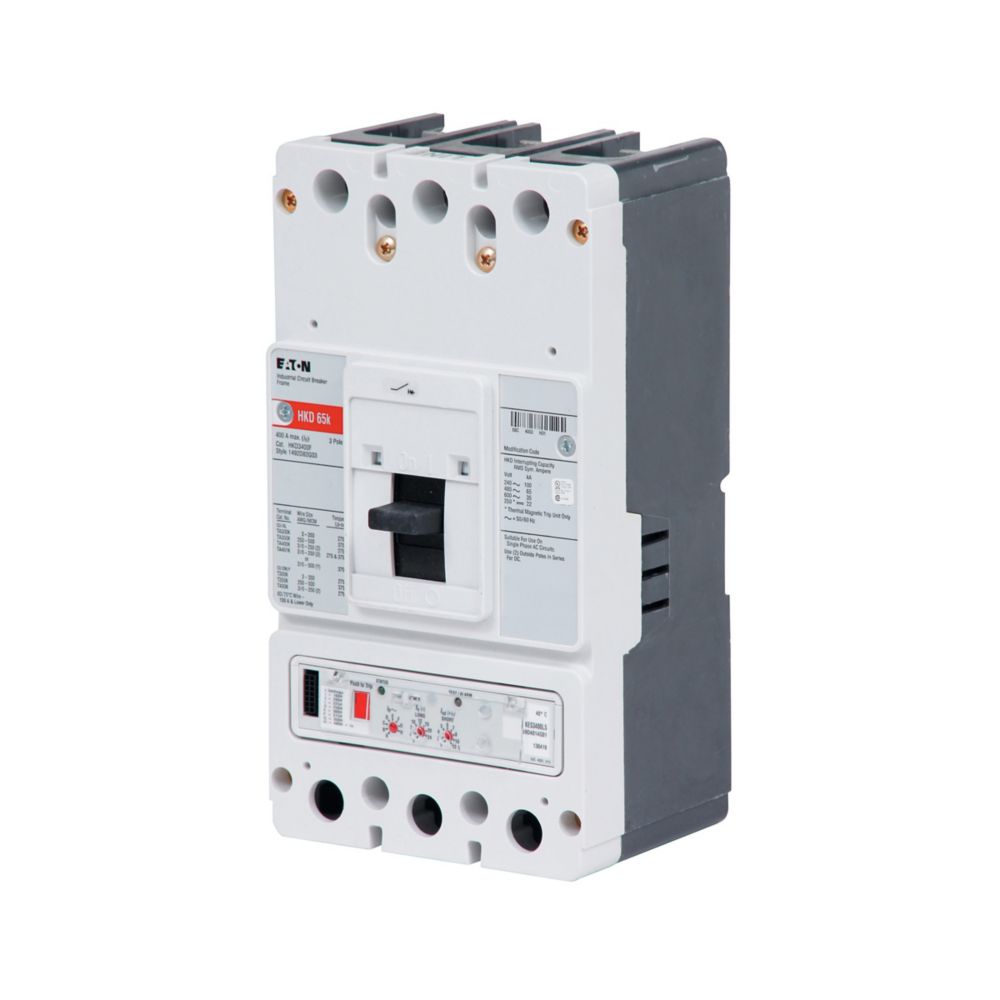

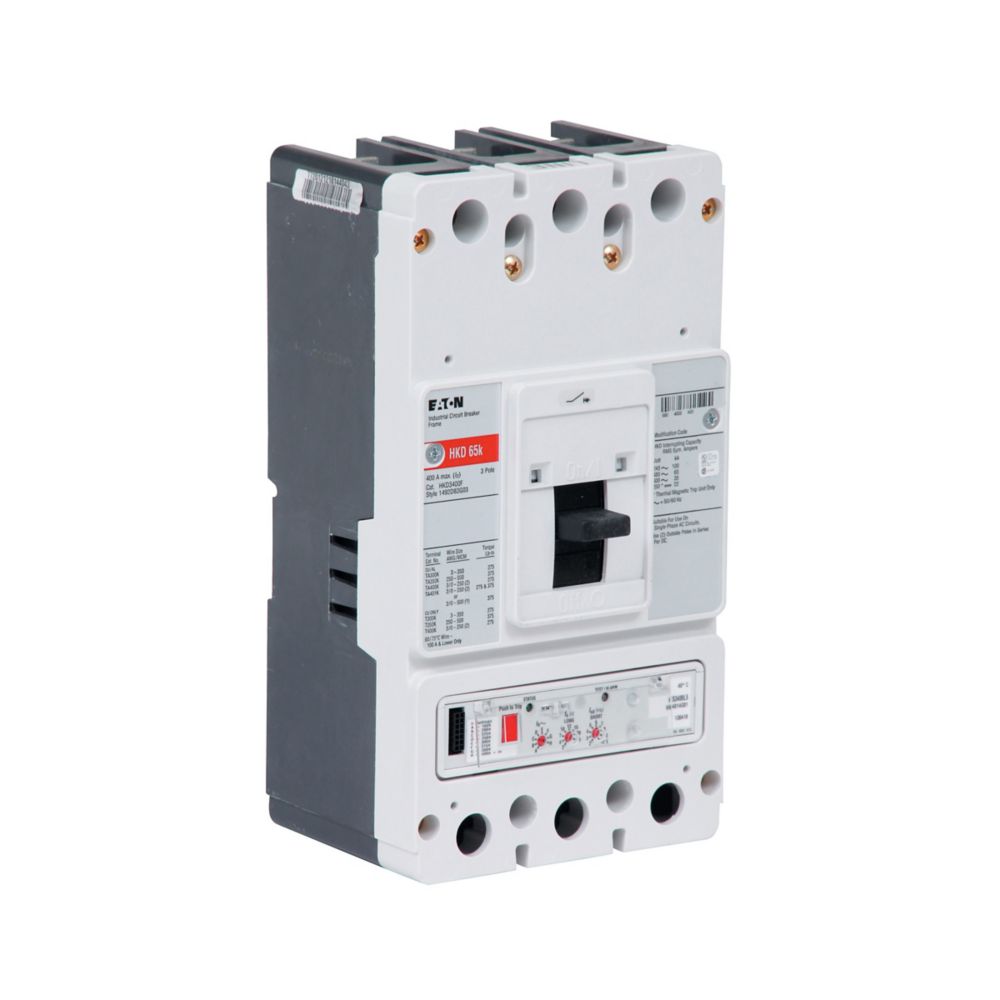

HKD3400F - Eaton Cutler Hammer - 400A 600VAC Three-Pole Molded Case Circuit Breakers
Eaton Series C molded case circuit breaker frame, K-frame, HKD, Frame only, Fixed thermal, Fixed magnetic trip type, Three-pole, 400 A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C molded case circuit breaker frame
|
| Catalog Number |
HKD3400F
|
| UPC |
786679661956
|
| Product Length/Depth |
4.1 in
|
| Product Height |
5.5 in
|
| Product Width |
5.5 in
|
| Product Weight |
9.8 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
400 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
HKD
|
| Circuit breaker frame type |
Frame only
|
| Series |
Series C
|
| Frame |
K
|
| Frequency rating |
50 to 60 Hz
|
| Interrupt rating |
65 kAIC at 480 Vac
100 kAIC at 240 Vac |
| Number of poles |
Three-pole
|
| Type |
Frame only
|
PRODUCT DATASHEET
