Description

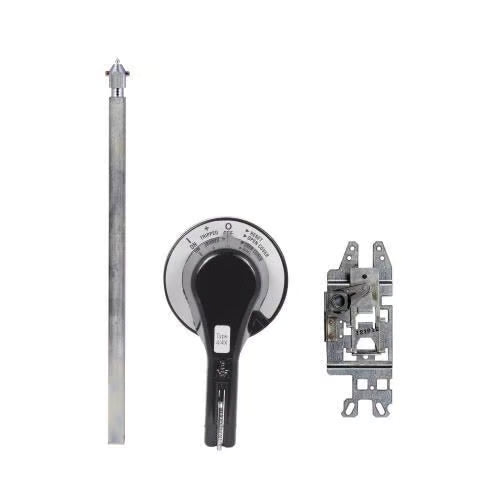

HM2R12 - Eaton Cutler Hammer - 12" NEMA Handle Mechanism
The Eaton HM2R12 is a through-the-door, rotary handle mechanism featuring a 12-inch black lever shaft, specifically designed for Series C J-frame molded case circuit breakers. Built for NEMA 1/3R/12 enclosures, it provides secure, external operation (ON/OFF/tripped/reset) and includes a "lock-off" feature to prevent unwanted switching when in the OFF position. Compact at approximately 4.75" × 19" × 9.25", UL-listed and CSA-certified, this mechanism is ideal for panelboard and motor control center applications.
GENERAL SPECIFICATIONS
| Manufacturer Part Number | HM2R12 |
| Brand | Eaton - Cutler Hammer |
| Series | C Series |
| UPC Code | 786679165102 |
| Primary Type | Operating Mechanisms |
| Type | Handle Kits |
| For Use With | J-frame |
| Enclosure Rating | NEMA 1, NEMA 12, NEMA 3R |
PRODUCT DATASHEET
