Description

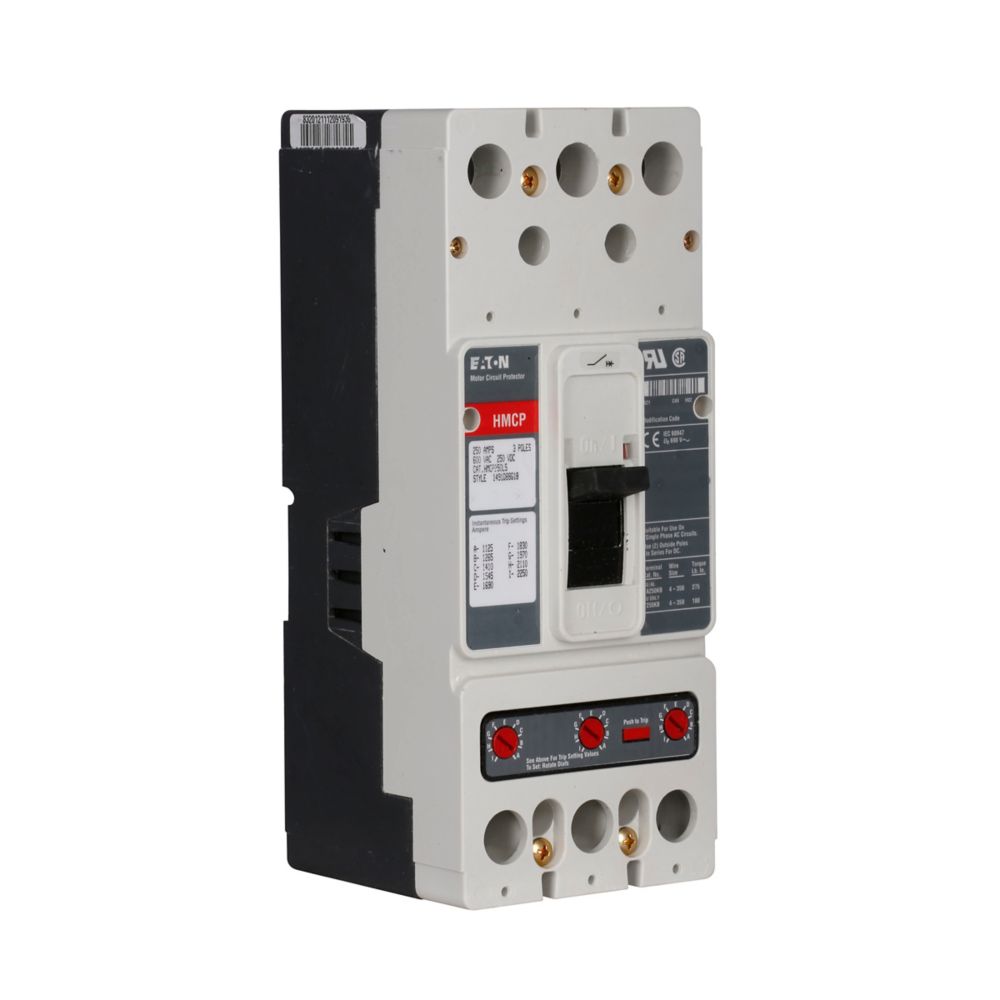

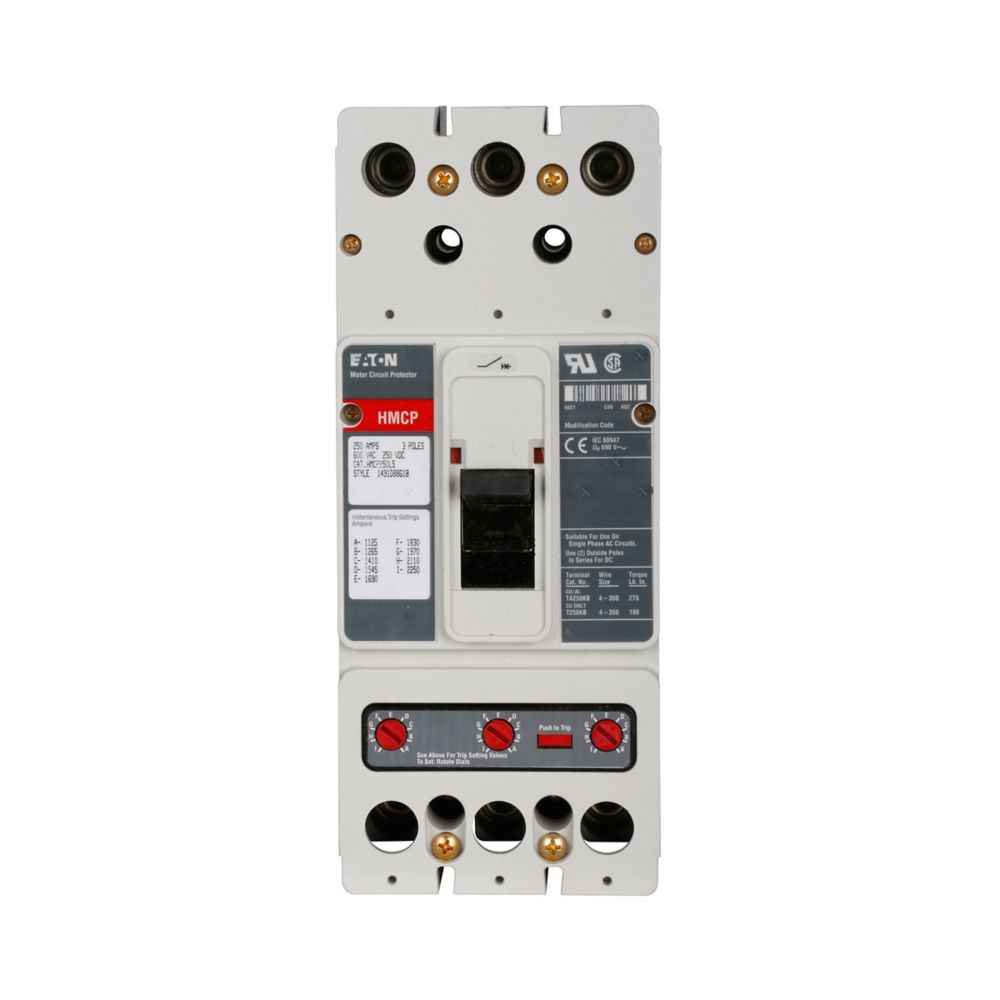

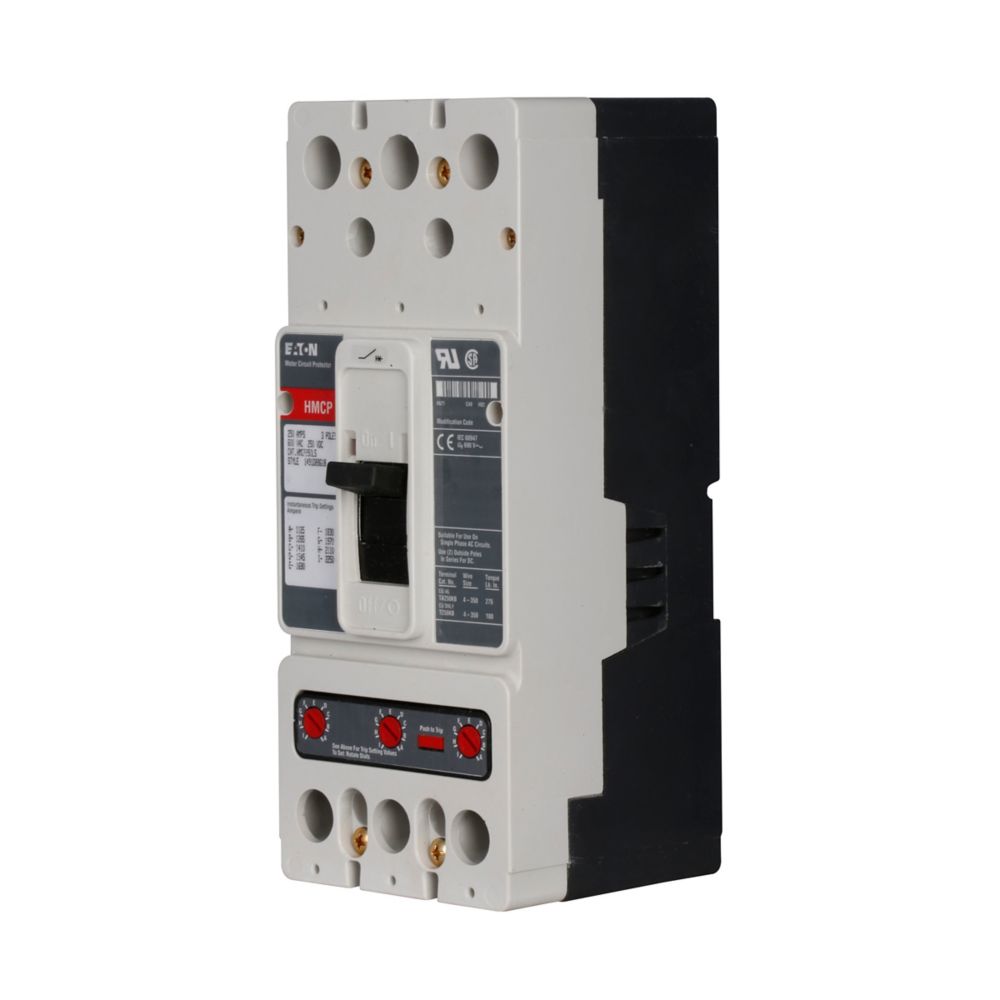

HMCP250W5C - Eaton Cutler Hammer - 250A Three-Pole Motor Circuit Protector
Eaton molded case circuit breaker accessory motor protection, Motor circuit protector, 250 A, Three-pole, Frame J-K, 1250-2500 A, 600 V, 250 Vdc, Series C, Line and load, Non-aluminum
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory motor protection
|
| Catalog Number |
HMCP250W5C
|
| UPC |
786679150368
|
| Product Length/Depth |
4.06 in
|
| Product Height |
10 in
|
| Product Width |
4.13 in
|
| Product Weight |
12.5 lb
|
| Certifications |
CSA Certified
UL Listed |
| Global Catalog |
HMCP250W5C
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
250 A
|
| Frame size |
Frame J-K
|
| Magnetic trip range |
1250-2500 A
|
| Voltage - max |
600 V, 250 Vdc
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Terminal material |
Non-aluminum
|
| Number of poles |
Three-pole
|
| Type |
Motor circuit protector
|
PRODUCT DATASHEET
