Description

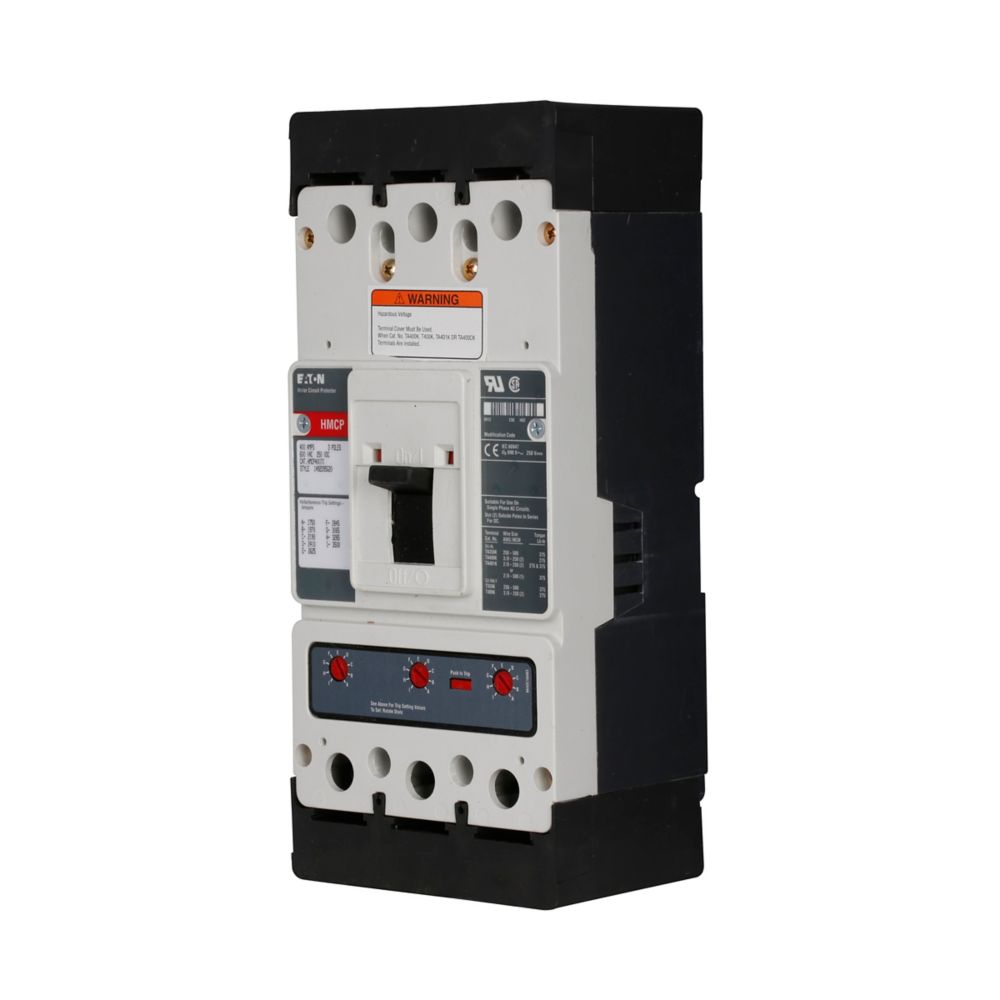

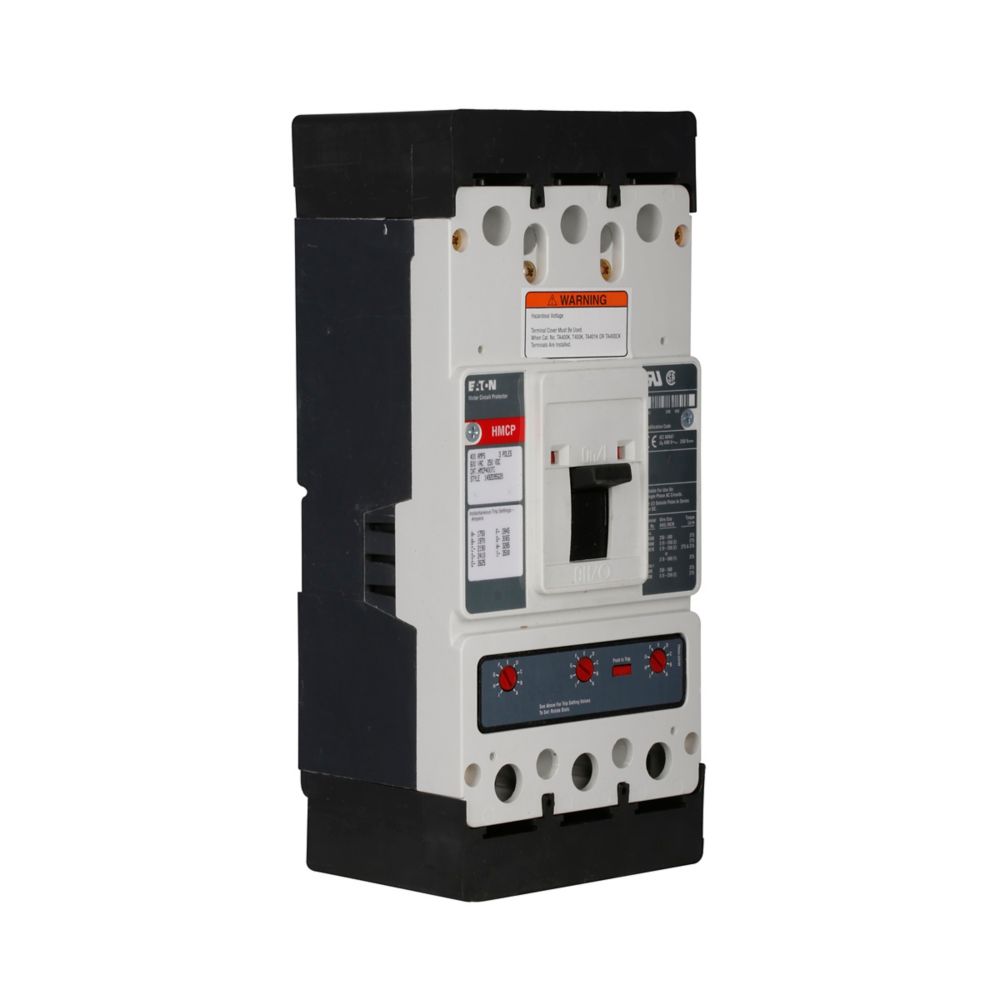

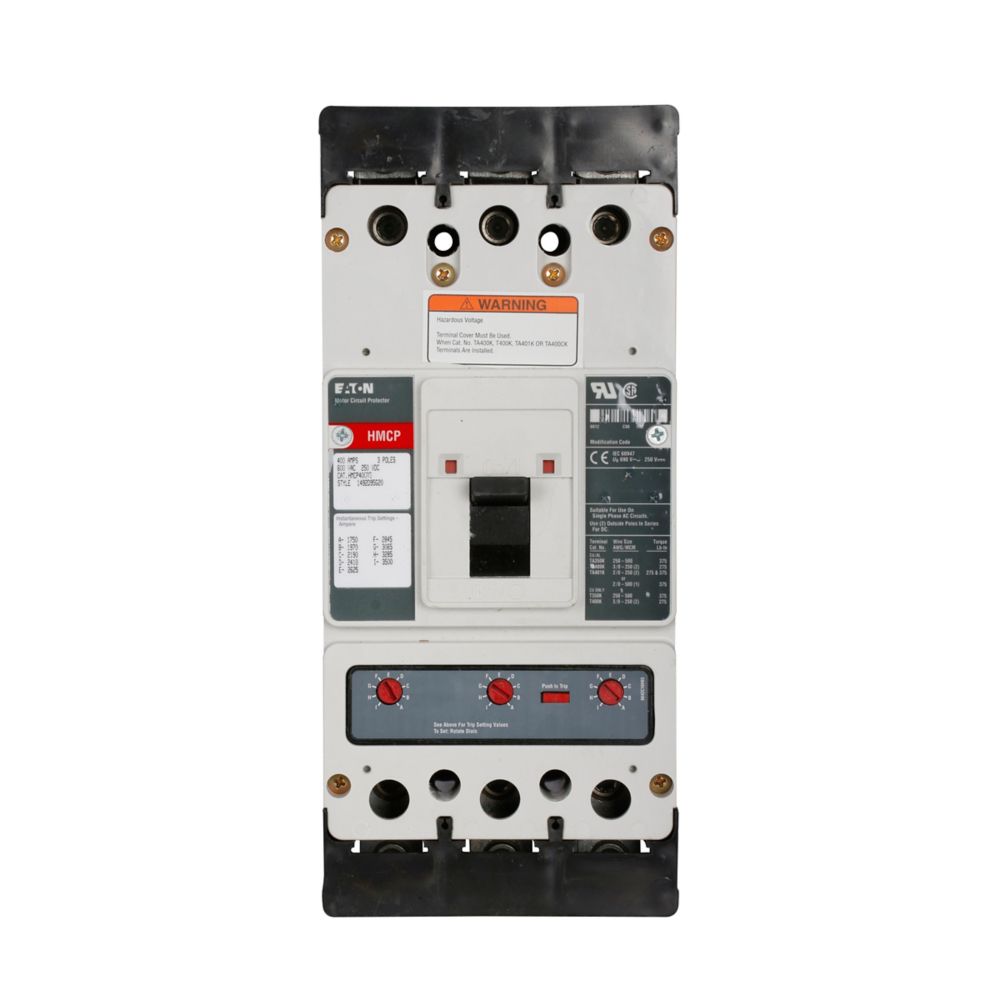

HMCP400X5C - Eaton Cutler Hammer - 400A Three-Pole Motor Circuit Protector
Eaton molded case circuit breaker accessory motor protection, Motor circuit protector, 400 A, Three-pole, Frame J-K, 2000-4000 A, 600 V, 250 Vdc, Series C, Line and load, Non-aluminum
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory motor protection
|
| Catalog Number |
HMCP400X5C
|
| UPC |
786679150382
|
| Product Length/Depth |
4.1 in
|
| Product Height |
10.13 in
|
| Product Width |
5.5 in
|
| Product Weight |
11.5 lb
|
| Certifications |
CSA Certified
UL Listed |
| Global Catalog |
HMCP400X5C
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
400 A
|
| Frame size |
Frame J-K
|
| Magnetic trip range |
2000-4000 A
|
| Voltage - max |
600 V, 250 Vdc
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Terminal material |
Non-aluminum
|
| Number of poles |
Three-pole
|
| Type |
Motor circuit protector
|
PRODUCT DATASHEET
