Description

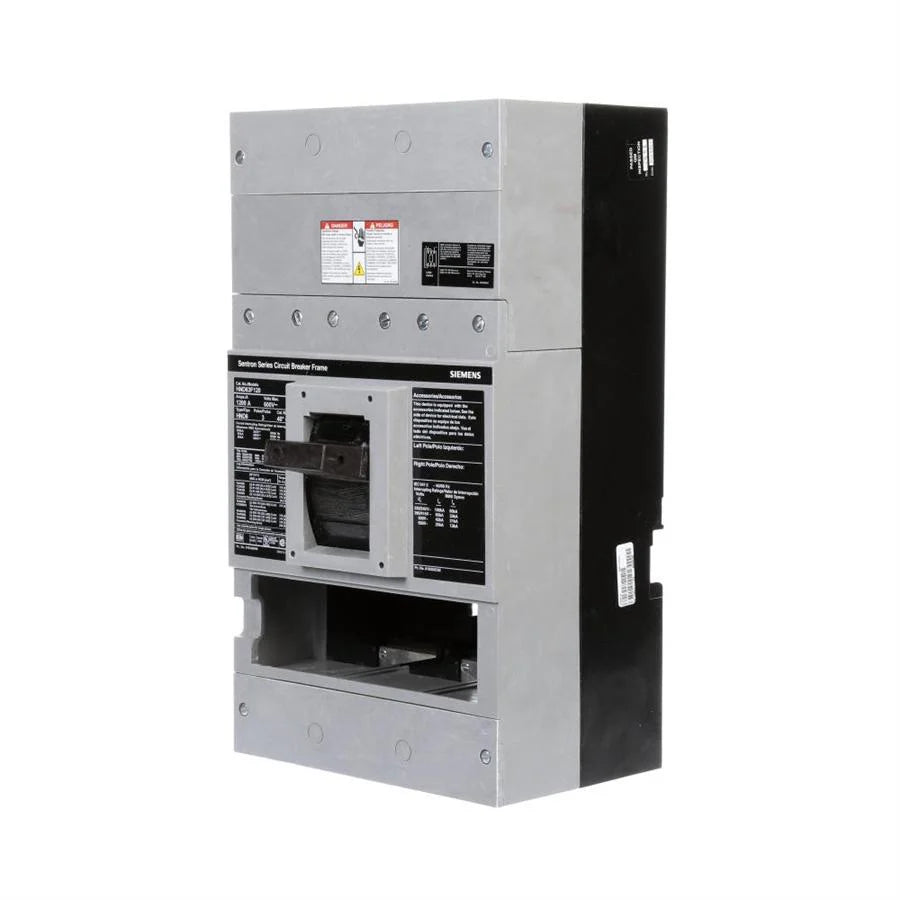

HND63F120 - Siemens - 1200 Amp 3-Pole 600 Volt Circuit Breakers
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. FRAME FOR ND FRAME WITH HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 1200A 3-POLE BREAKER (50KAIC AT 600V) (65KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA4N8500) WIRE RANGE: 250 - 500KCM (CU/AL). DIMENSIONS (W x H x D) IN: 9 x 16 x 6.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:HND63F120 |
| MFN | HND63F120 |
| UPC | 783643215665 |
| Commodity Code | 85389099 |
Pricing related
| Price Group | NJF |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 18 Day/Days |
| Packaging dimensions (L x W x H) | Not available |
| Net weight | 48.601 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | No |
| Compliance with the substance restrictions according to RoHS directive | Since: 04/02/2009 |
| SCIP Number | not available |
Siemens specific
| Product Group | 3741 |
| Catalog ID | LV10.1 |
| Group Code | P360 |
| Country of origin | Mexico |
| Returnable Status | Yes |
