Description

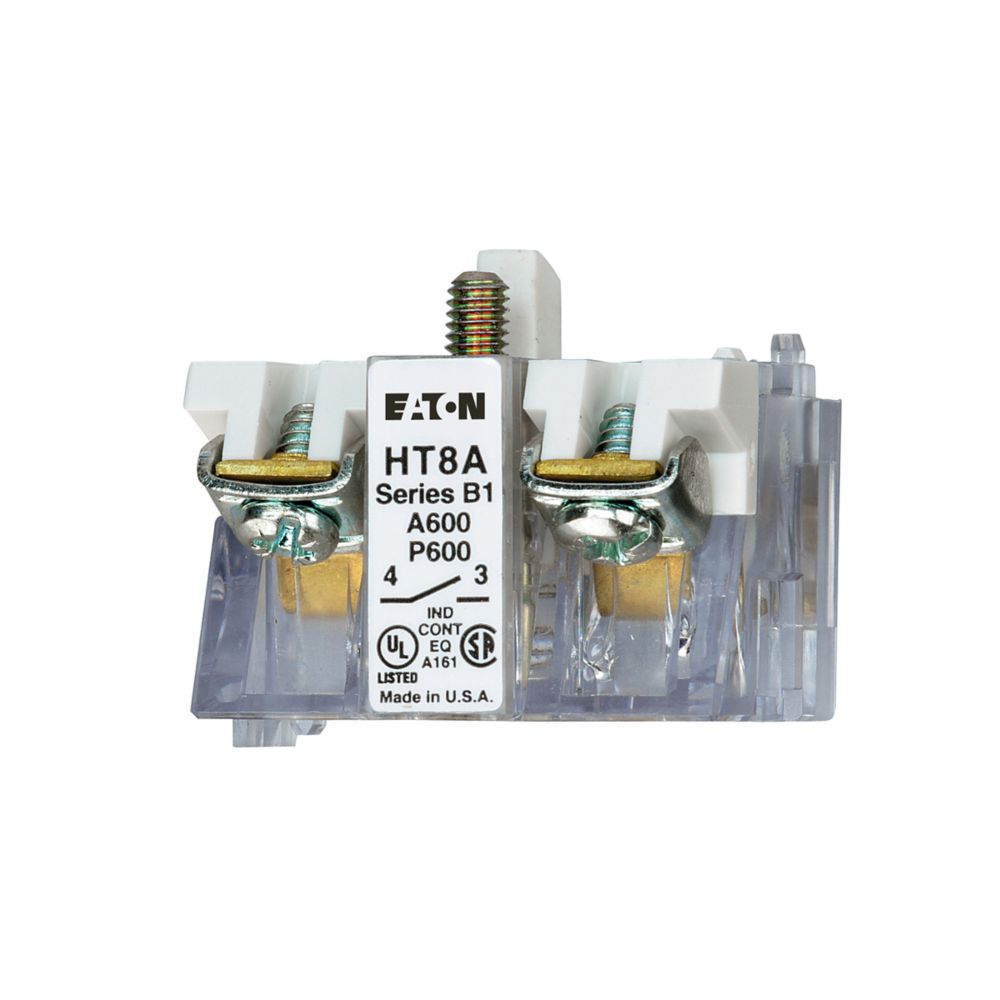

HT8A - Eaton Cutler Hammer - 30.5 mm NO Contact Block
The Eaton HT8A is a 30.5 mm pushbutton contact block from the HT800 heavy-duty series, featuring a normally open (NO) configuration and watertight/oiltight design, without a guard. Compact and lightweight (1.9 × 1.3 × 2.2 in; 0.05 lb), it supports up to eight contact blocks in a stacked arrangement and is UL-listed and CSA-certified.
GENERAL SPECIFICATIONS
| Product Name |
Eaton HT800 pushbutton contact block
|
| Catalog Number |
HT8A
|
| UPC |
782113556444
|
| Product Length/Depth |
1.9 in
|
| Product Height |
2.2 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.05 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Standard normally open contact. A maximum of four contact blocks per side, or a total of eight contact blocks, is recommended
|
| Product Type |
Pushbutton accessory
|
PRODUCT SPECIFICATIONS
| Special features |
Contact block
|
| Type |
30.5 mm, Watertight/Oiltight-HT800
|
| Contact configuration |
NO
|
| Options |
Without guard
|
| Product category |
Contact block
|
