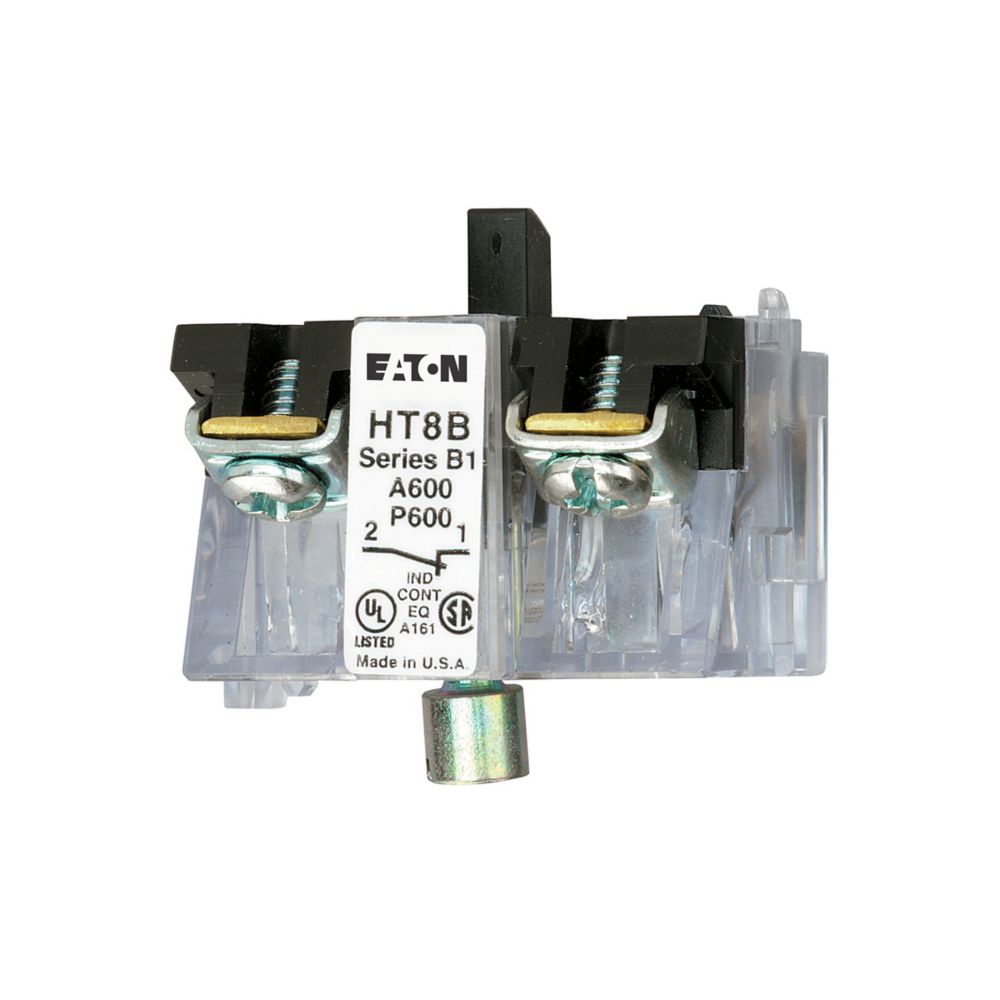

HT8B - Eaton Cutler Hammer - 30.5 mm NC Contact Block
The Eaton HT8B is the counterpart to HT8A—a 30.5 mm, watertight/oiltight contact block configured as normally closed (NC), designed without guard. Sharing the same compact footprint (1.9 × 1.3 × 2.2 in; 0.05 lb) and certs (UL, CSA), it can also be stacked up to four per side.
GENERAL SPECIFICATIONS
| Product Name |
Eaton HT800 pushbutton contact block
|
| Catalog Number |
HT8B
|
| UPC |
782113556451
|
| Product Length/Depth |
1.9 in
|
| Product Height |
2.2 in
|
| Product Width |
1.3 in
|
| Product Weight |
0.05 lb
|
| Warranty |
1 year
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Standard normally closed contact. Maximum of four contact blocks per side or a total of eight contact blocks recommended.
|
| Product Type |
Pushbutton accessory
|
PRODUCT SPECIFICATIONS
| Special features |
Contact block
|
| Type |
30.5 mm, Watertight/Oiltight-HT800
|
| Contact configuration |
NC
|
| Options |
Without guard
|
| Product category |
Contact block
|
