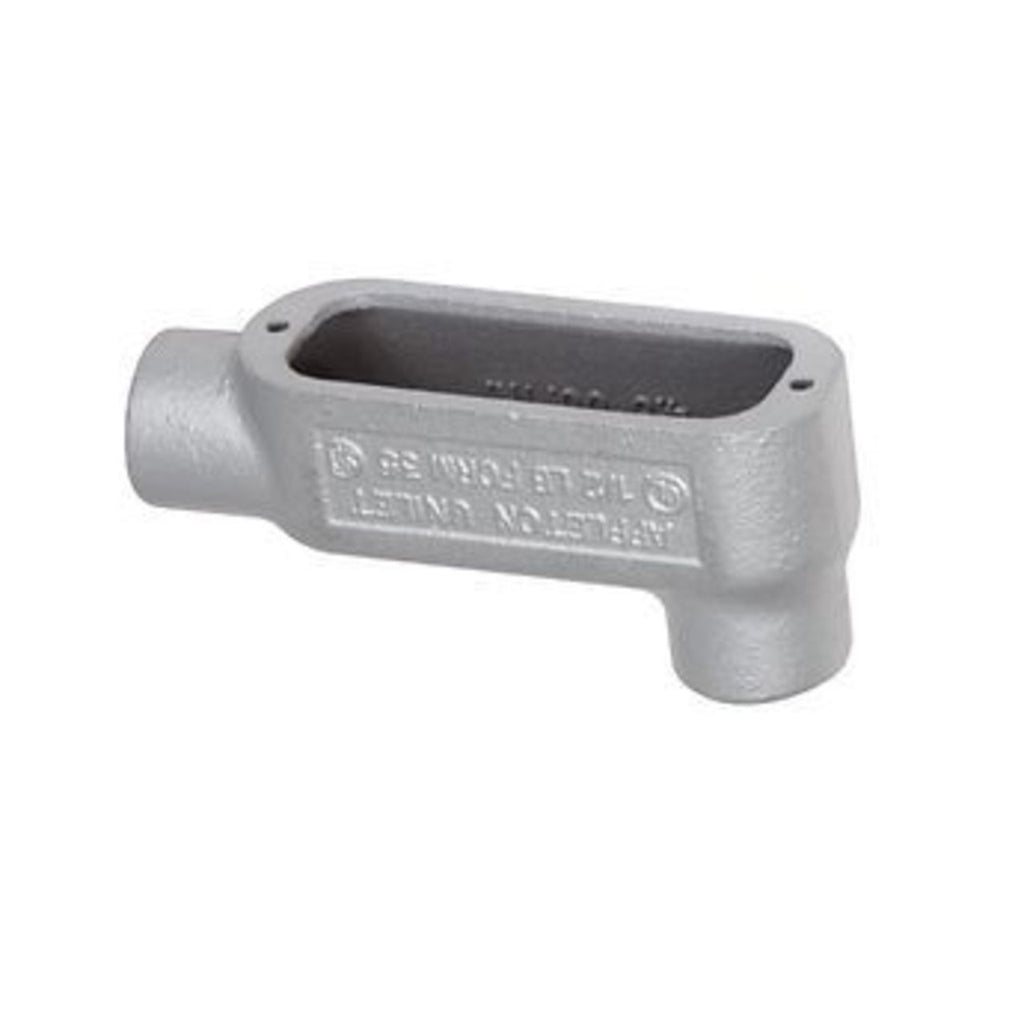

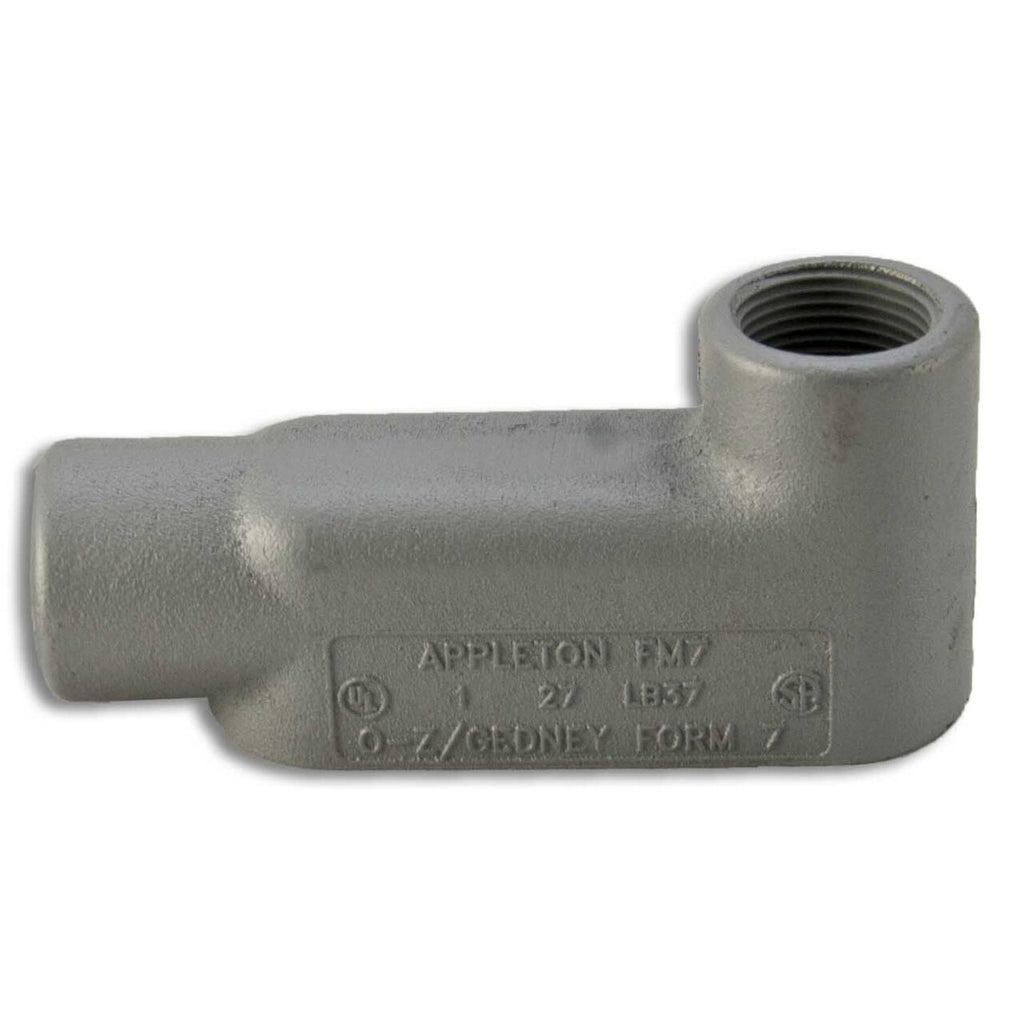

LB100M - Appleton - 1" Form 35 Type LB Malleable Iron Conduit Body
Similar to the previous product but made from malleable iron, this 1" LB conduit body is ideal for heavy-duty settings. The Form 35 build ensures compatibility with standard applications. Its solid structure enhances mechanical protection. Common in both indoor and industrial installations.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials
- Malleable iron bodies; malleable iron, steel or aluminum covers; neoprene or composition fiber gaskets; and stainless steel cover screws
- Standard Finishes
- Malleable iron bodies and covers have triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; steel covers have zinc electroplate
