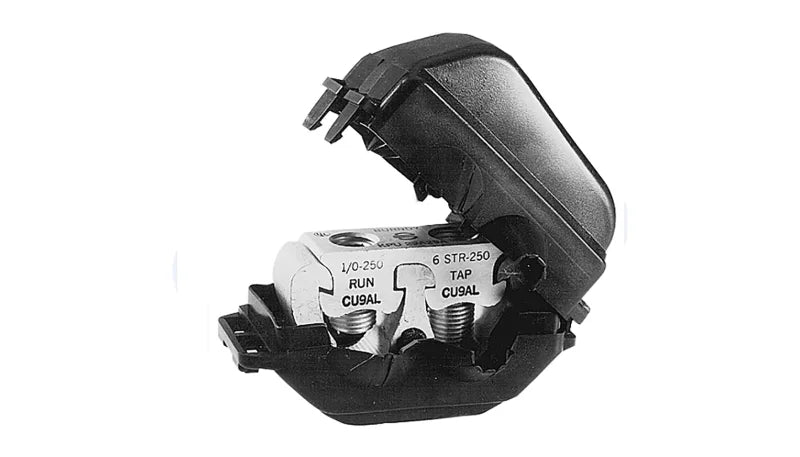

KPU39A39AC - Burndy - 1/0 AWG Str 500-750 kcmil Tin Plated Gutter Tap
Gutter Tap, 500-750 kcmil (Run), 1/0 AWG (Str)-750 kcmil (Tap), Al/Cu Rated. Features: Wide range-taking tin-plated aluminum parallel clamp and insulating cover assembly for industrial and multiple story structure applications. Only six connectors cover the entire 14 AWG solid to 750 KCMIL range. Covers having flexible fingers that conform to conductor, fully insulating the connection. UL486B listed for 600 V maximum 90 DEG C service. Cover and connector are packaged together, no taping required. Conductor size (run - range): 500 - 750 KCMIL. Conductor size (tap range): 1/0 AWG - 750 KCMIL. Torque: 600 IN-LB.
GENERAL SPECIFICATIONS
| Application |
For All Copper And Aluminum Combinations |
| Connector Type |
Tap |
| Installation Torque Recommended in-lb |
600 LBS/in |
| Material |
Aluminum |
| Plated |
N |
| Plating Type |
Tin |
| Sub Brand |
POLYTAP |
| Temperature Rating |
194 |
| Trade Name |
POLYTAP™ |
| Type |
KPU-AC |
| UPC |
781810624524 |
| UPC 12 Digit |
7818106245244 |
Dimensions
| Dimension - Height fraction |
3-83/100 in |
| Dimension - Height inch |
3.82 in |
| Dimension - L Length Overall mm |
129 mm |
| Dimension - Length Overall inch |
5.06 in |
| Dimension - Width fraction |
3-1/2 in |
| Dimension - Width inch |
3.50 in |
| Dimension - Width mm |
89 mm |
Electrical Ratings
| Rating - Minimum Voltage |
110 |
| Voltage - Maximum |
600 V |
Conductor Related
| Conductor - AL Str Run |
500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil |
| Conductor - AL Str Run Range |
500 kcmil-750 kcmil |
| Conductor - AL Str Tap |
1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil |
| Conductor - AL Str Tap Range |
1/0 AWG-750 kcmil |
| Conductor - Copper Str Run |
500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil |
| Conductor - Copper Str Run Range |
500 kcmil-750 kcmil |
| Conductor - Copper Str Tap |
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil |
| Conductor - Copper Str Tap Range |
1/0 -750 kcmil |
| Conductor Type |
- AL C Str-Run
- CU C Str-Run
- AL C Str-Tap
- CU C Str-Tap
|
Logistics
| Minimum Pack Quantity 1 |
1 |
PRODUCT DATASHEET
KPU39A39AC
