Description

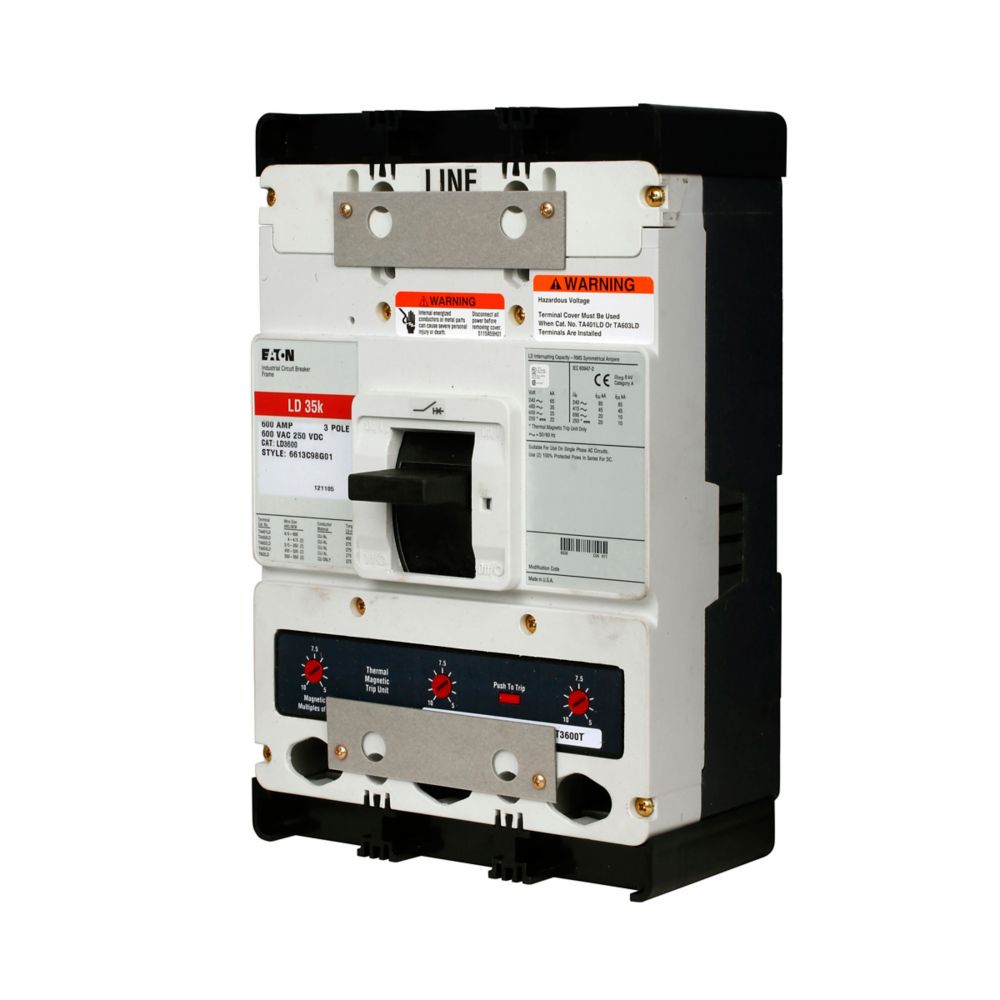

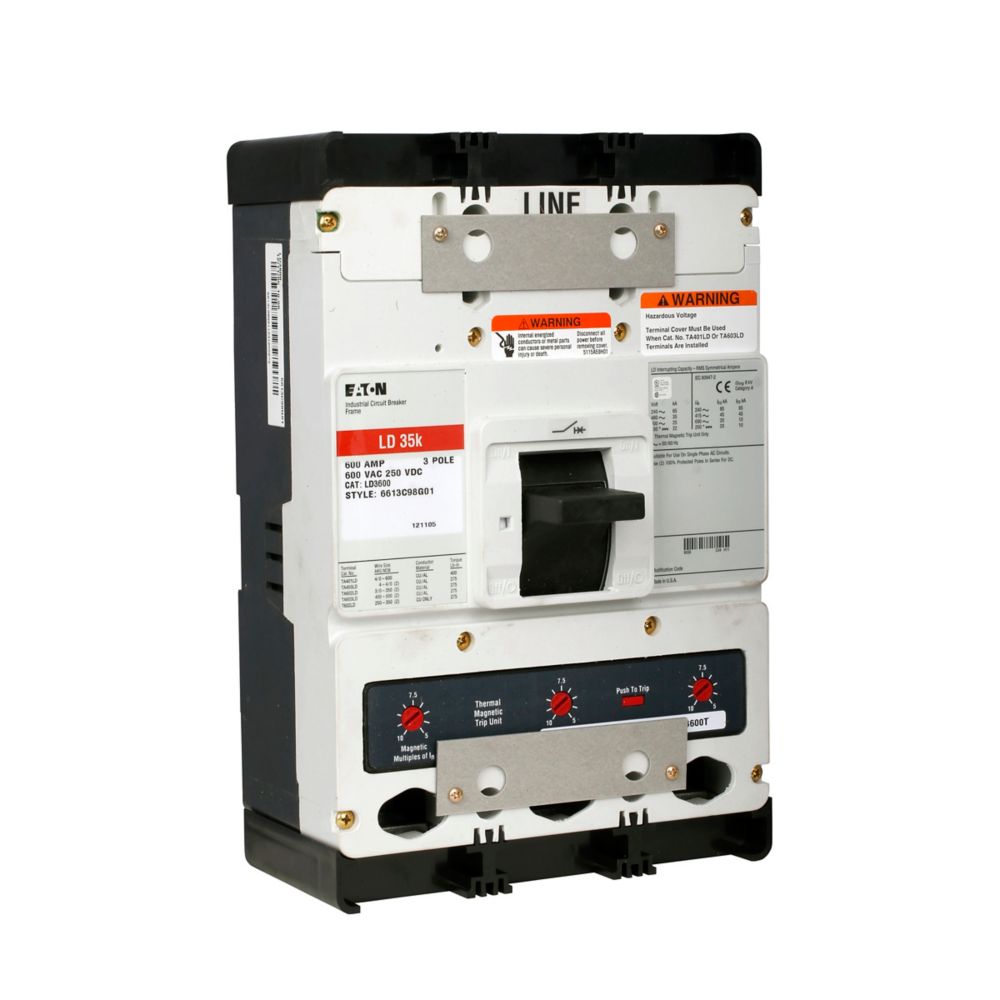

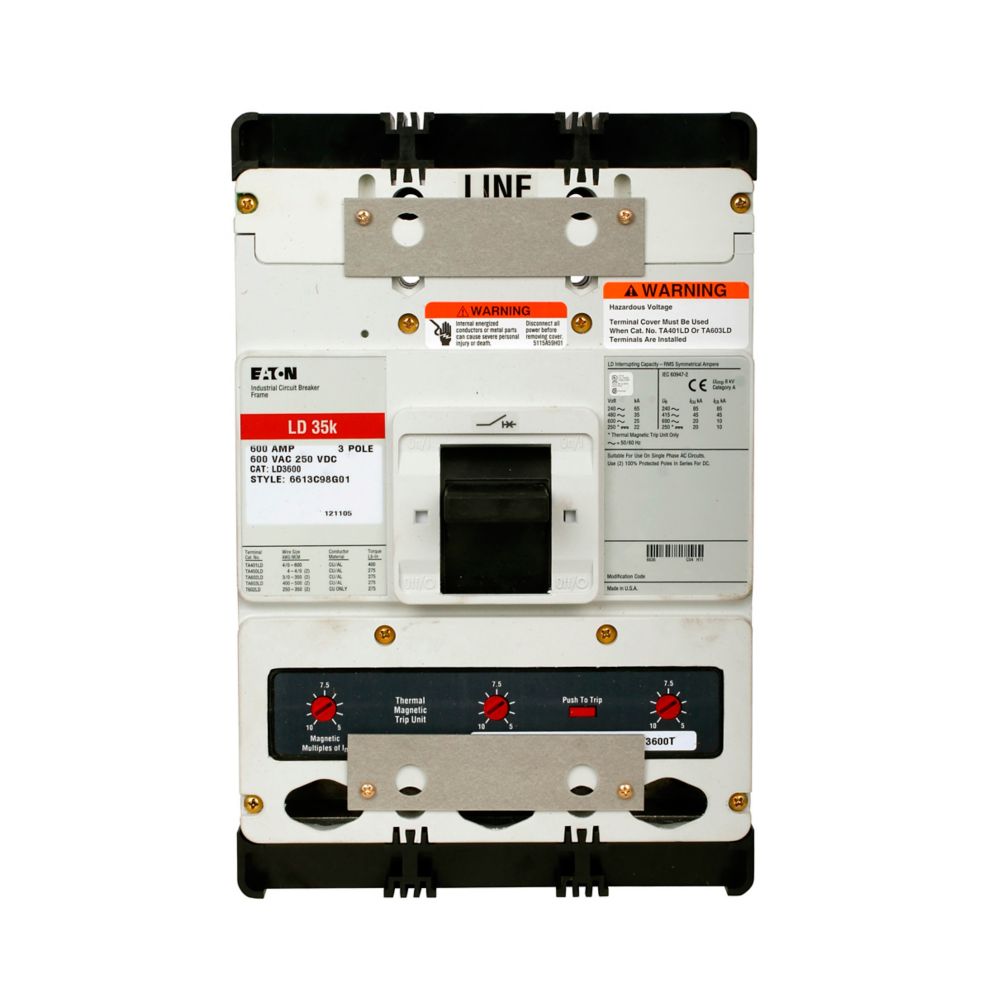

LD3400 - Eaton Cutler Hammer - 400A Three-Pole Circuit Breakers
Eaton Series C complete molded case circuit breaker, L-frame, LD, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 400 A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, Aluminum, Line and load, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker
|
| Catalog Number |
LD3400
|
| UPC |
786679013038
|
| Product Length/Depth |
4.06 in
|
| Product Height |
8.25 in
|
| Product Width |
8.25 in
|
| Product Weight |
20.05 lb
|
| Certifications |
UL 489
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
400 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
LD
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Frame |
L
|
| Frequency rating |
50 to 60 Hz
|
| Terminal material |
Aluminum
|
| Interrupt rating |
35 kAIC at 480 Vac
65 kAIC at 240 Vac |
| Number of poles |
Three-pole
|
