Description

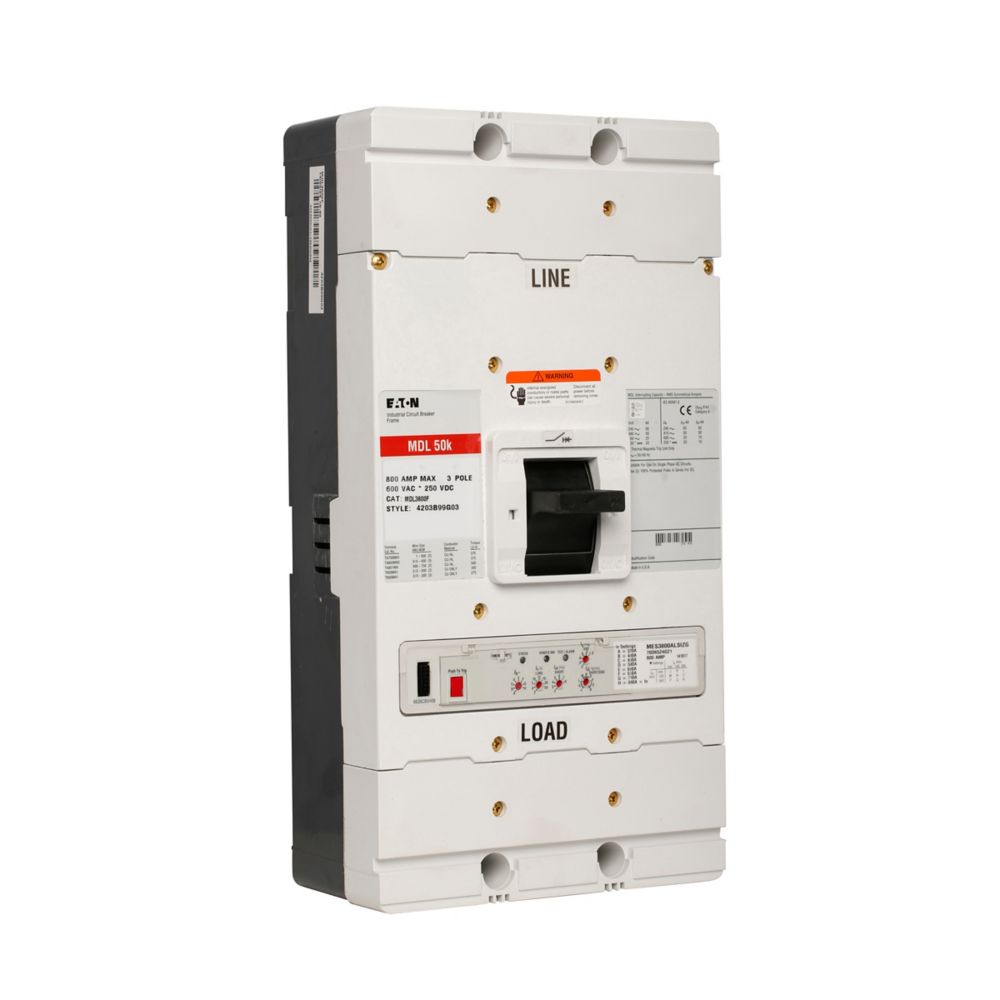

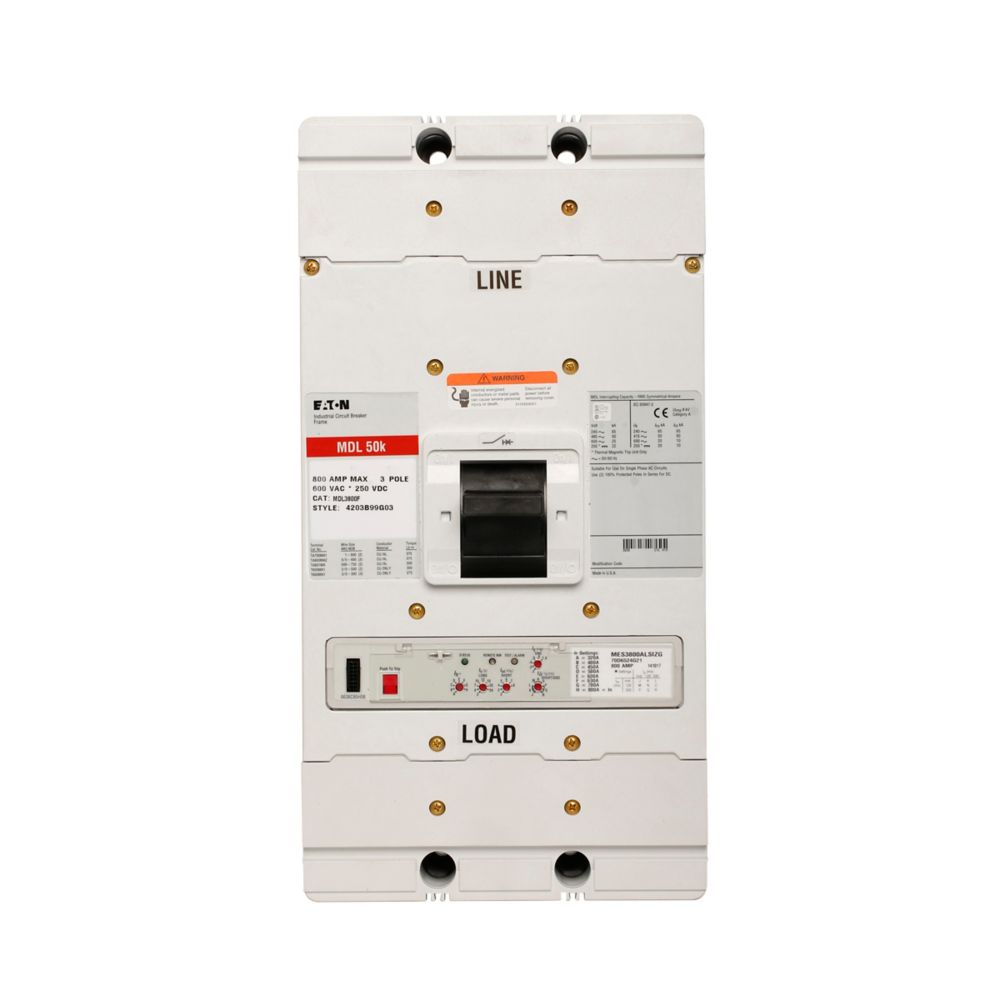

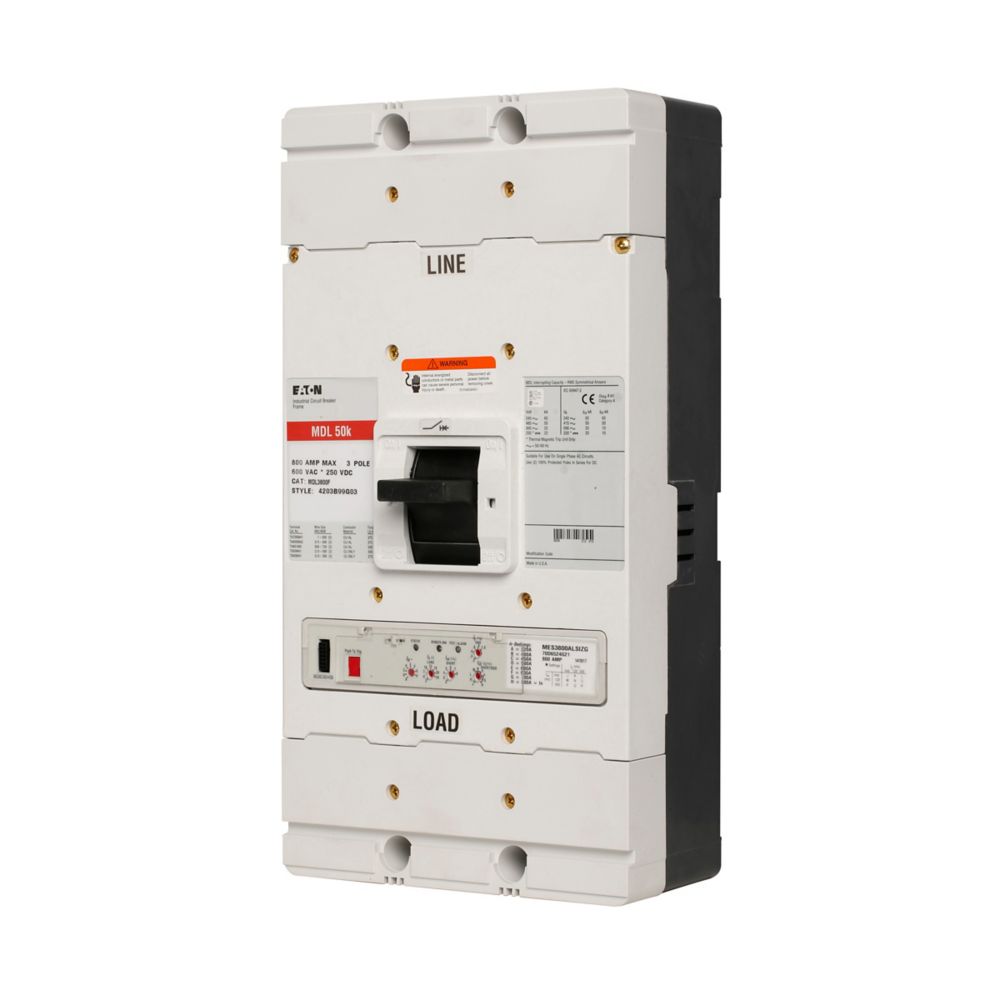

MDL3800 - Eaton Cutler Hammer - 800A Three-Pole Circuit Breakers
Eaton Series C complete molded case circuit breaker, MDL-frame, MDL, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 800A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker
|
| Catalog Number |
MDL3800
|
| UPC |
782114586006
|
| Product Length/Depth |
18 in
|
| Product Height |
8 in
|
| Product Width |
11 in
|
| Product Weight |
30 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
800 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
MDL
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Frame |
MDL
|
| Interrupt rating |
50 kAIC at 480 Vac
65 kAIC at 240 Vac |
| Number of poles |
Three-pole
|
