Description

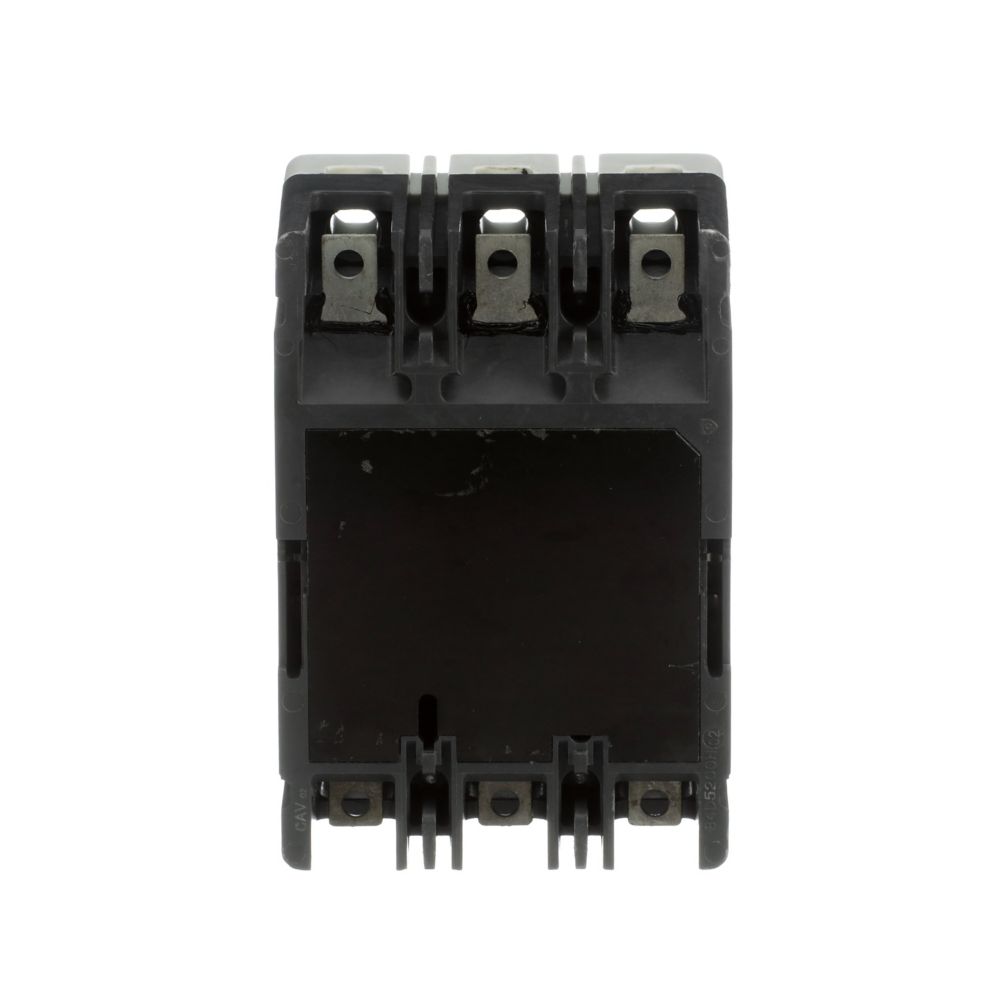

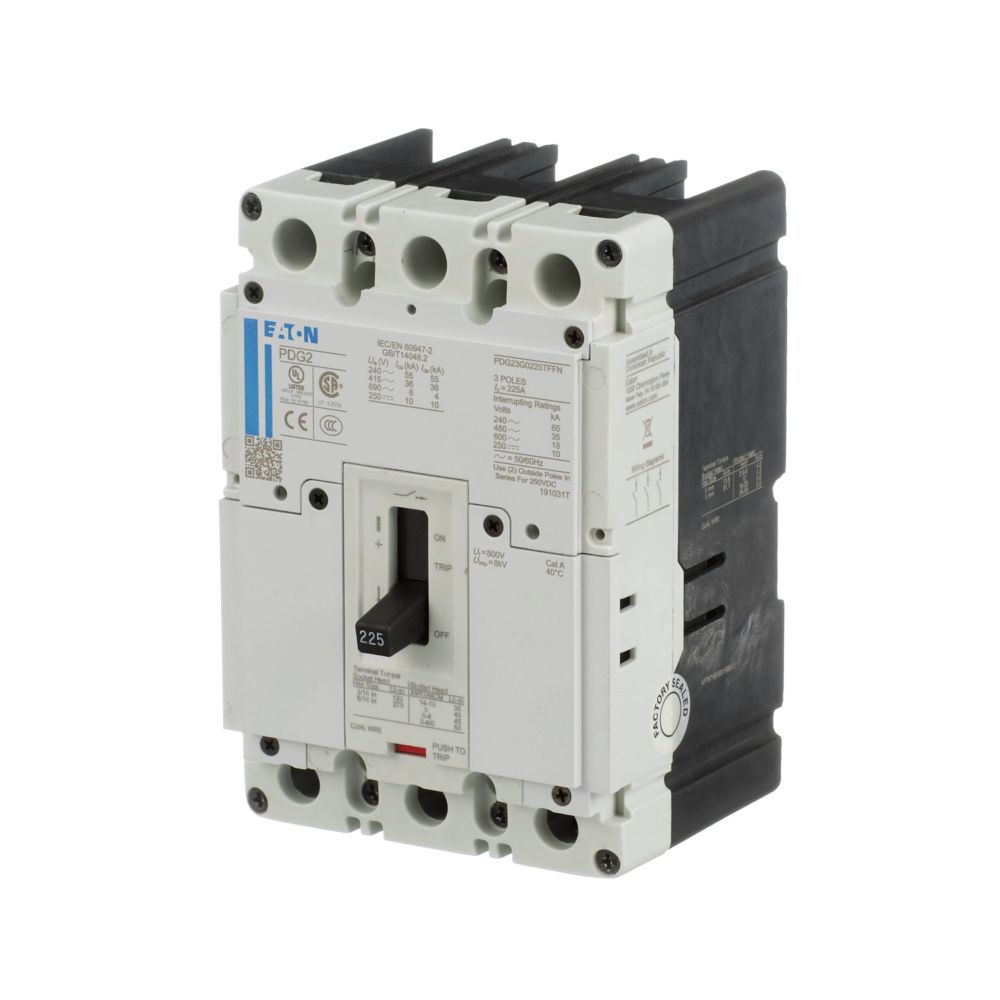

PDG23G0050TFFJ - Eaton Cutler Hammer - 50A Three-Pole Power Defense Circuit Breakers
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Three Pole, 50A, 35kA/480V, T-M (Fxd-Fxd) TU, Standard Line and Load (PDG2X3T100)
GENERAL SPECIFICATIONS
| Product Name |
Eaton Power Defense molded case circuit breaker
|
| Catalog Number |
PDG23G0050TFFJ
|
| UPC |
786679325971
|
| Product Length/Depth |
88.9 mm
|
| Product Height |
152.4 mm
|
| Product Width |
104.6 mm
|
| Product Weight |
1.82 kg
|
| Compliances |
RoHS Compliant
|
| Certifications |
IEC 60947-2
CSA CCC Marked UL 489 |
| Product Type |
Molded case circuit breaker
|
DELIVERY PROGRAM
| Amperage Rating |
50 A
|
| Circuit breaker frame type |
Complete breaker
|
| Frame |
2
|
| Number of poles |
Three-pole
|
GENERAL INFORMATION
| Circuit breaker type |
PD2 Global
|
| Class |
Class A
|
| Trip Type |
T298
|
TECHNICAL DATA - ELECTRICAL
| Voltage rating |
600 Vac
|
TECHNICAL DATA - MECHANICAL - TERMINAL
| Terminals |
Standard Line and Load
|
TECHNICAL INFORMATION
| Interrupt rating |
35 kAIC at 480 Vac
|
| Interrupt rating range |
35 kAIC @480V (UL)
10 kAIC Icu @125 Vdc 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC) 18 kAIC @600V (UL/CSA) 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC) 10 kAIC Icu @250 Vdc 65 kAIC @240V (UL) 36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC) 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 20 kAIC Icu/ 15/13 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC) 8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC) |
PRODUCT DATASHEET
