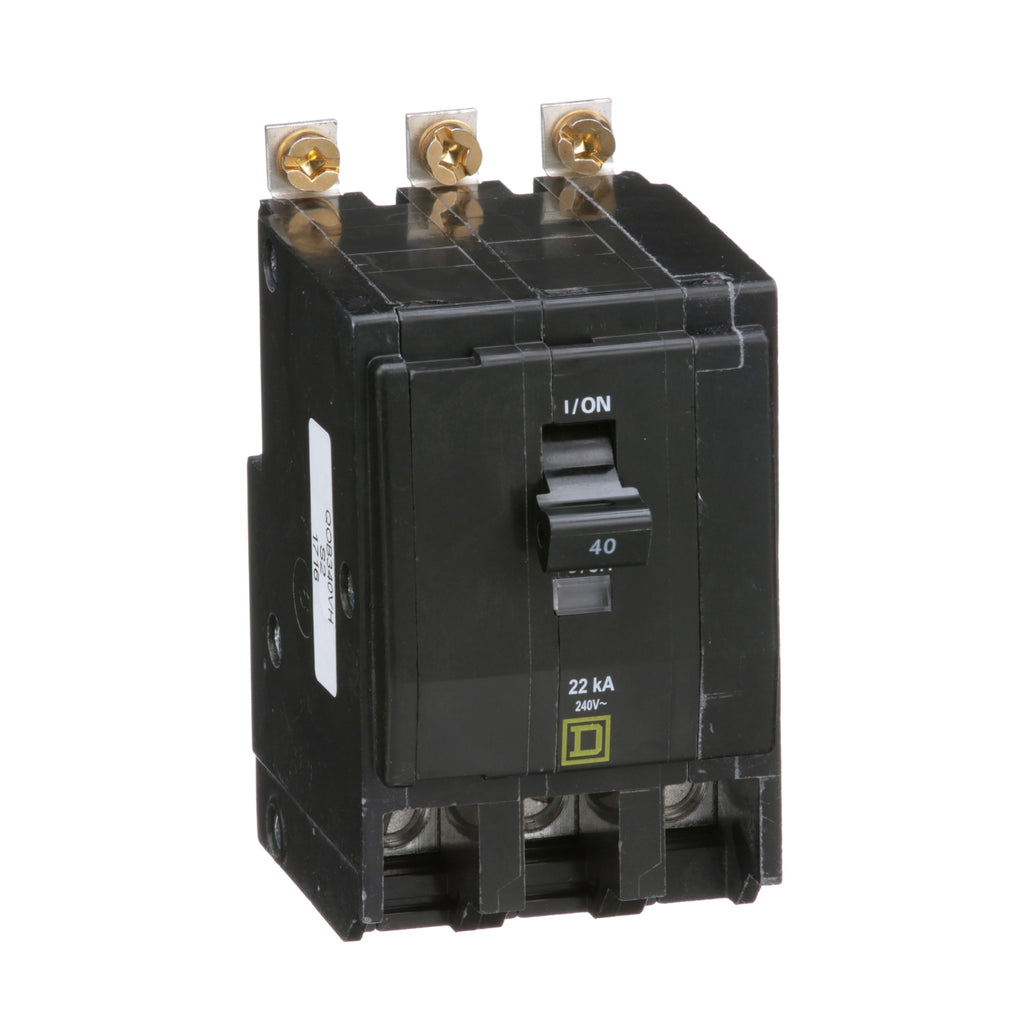

QOB340VH - Schneider Electric - Bolt-On 40 Amp 3 Pole 240 Volt Square D Circuit Breaker
Roll over image to zoom in Click on image to zoom
QOB340VH - Schneider Electric - Bolt-On 40 Amp 3 Pole 240 Volt Square D Circuit Breaker

QOB340VH - Schneider Electric - Bolt-On 40 Amp 3 Pole 240 Volt Square D Circuit Breaker

Square DSKU: SQDQOB340VH
Price:
$152.06
Stock:
Sold out

Description

QOB340VH - Schneider Electric - Bolt-On 40 Amp 3 Pole 240 Volt Square D Circuit Breaker

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

GENERAL SPECIFICATIONS

Main
Product Miniature circuit-breaker
Range QO
Current Rating 40 A
Voltage Rating 240 V AC
Mounting Type Bolt-on
Number of Poles 3P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Pressure plate
Complementary
Interrupt Rating 22 kA 240 V AC
Number of Panel Spaces 3
Wire Size AWG 8...AWG 2 copper or aluminium
Tightening Torque 49.6 lbf.in (5.6 N.m)
Height 3.1 in (79 mm)
Width 2.2 in (57 mm)
Depth 2.9 in (74 mm)
Net Weight 1.049 lb(US) (0.476 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104 °F (40 °C)
Ordering and shipping details
Category US10DE200015
Discount Schedule 0DE2
GTIN 785901054818
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 3.400 in (8.636 cm)
Package 1 Width 2.500 in (6.350 cm)
Package 1 Length 3.900 in (9.906 cm)
Package weight(Lbs) 17.600 oz (498.951 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 33
Package 2 Height 4.000 in (10.160 cm)
Package 2 Width 13.800 in (35.052 cm)
Package 2 Length 20.800 in (52.832 cm)
Package 2 Weight 36.689 lb(US) (16.642 kg)


PRODUCT DATASHEET

Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QOB340VH
