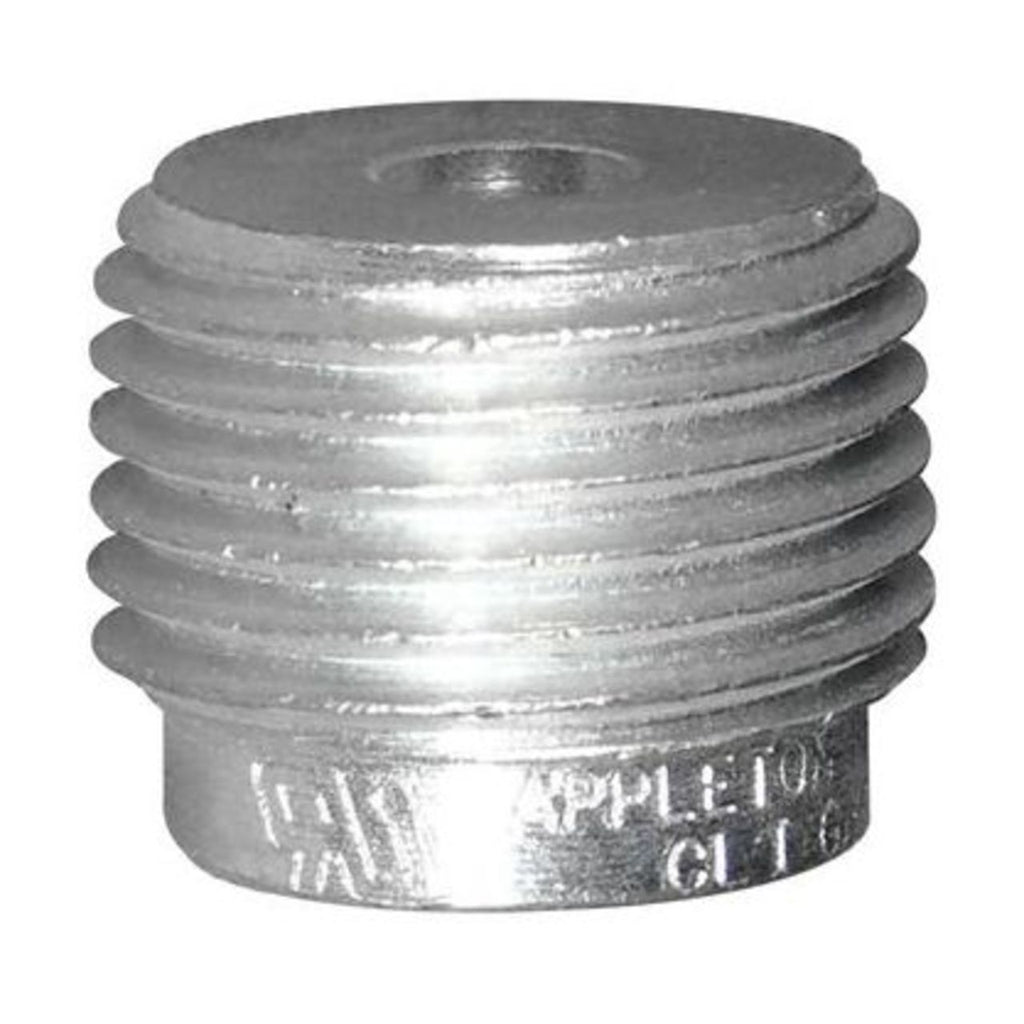

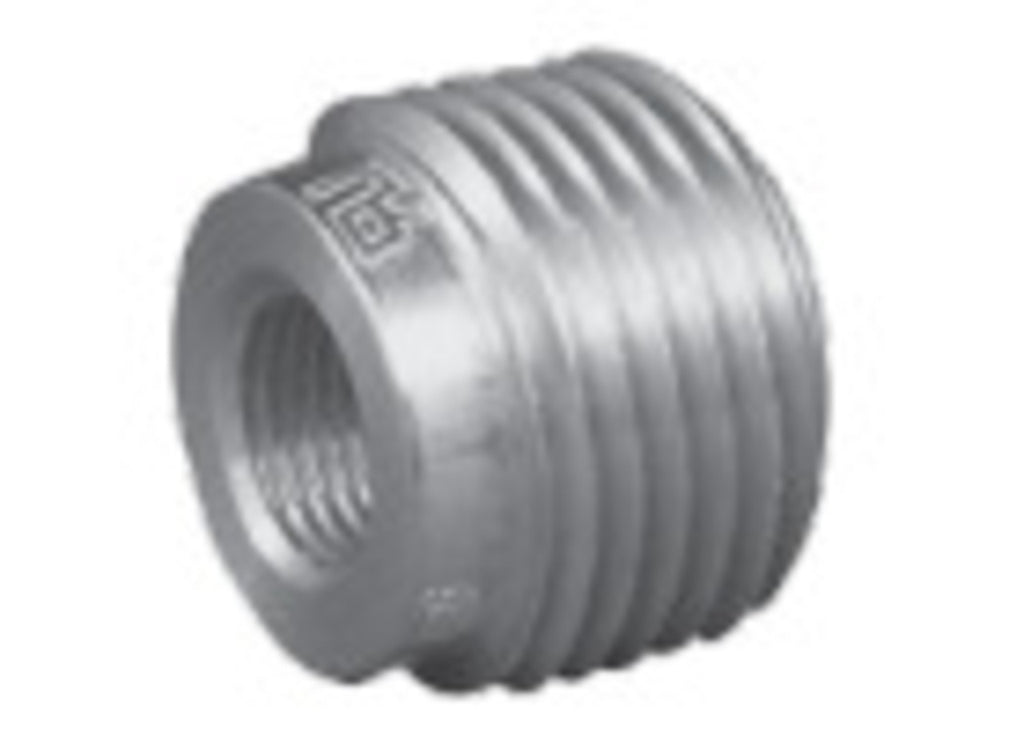

RB15050 - Appleton - 1‑1/2" x 1/2" Threaded Reducing Bushing
This explosionproof reducer transitions a 1-1/2" conduit to a 1/2" hub. Ideal for installations needing a significant size drop, it ensures a tight seal with its NPT threading and is built for hazardous or corrosive environments.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- RB75-50 thru RB200-150 all materials: Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and, 2, Groups IIA, IIB, IIC; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- RB-200-100 thru RB400-350: Class I, Division 1 and 2, Groups B, C, D; Class I, Zone 1 and 2, Groups IIA, IIB + H2; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Material and Finishes
- Steel with zinc electroplate. Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat. Aluminum with natural finish
