Description

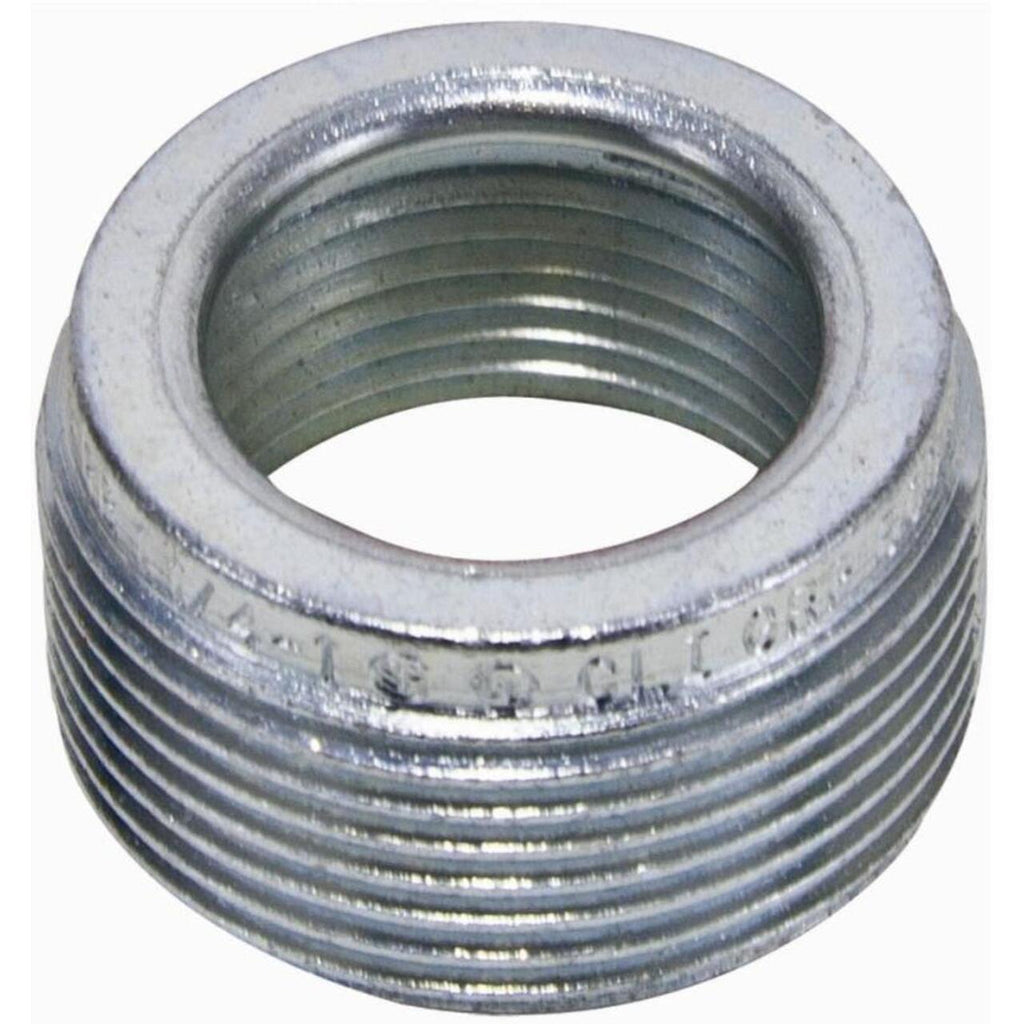

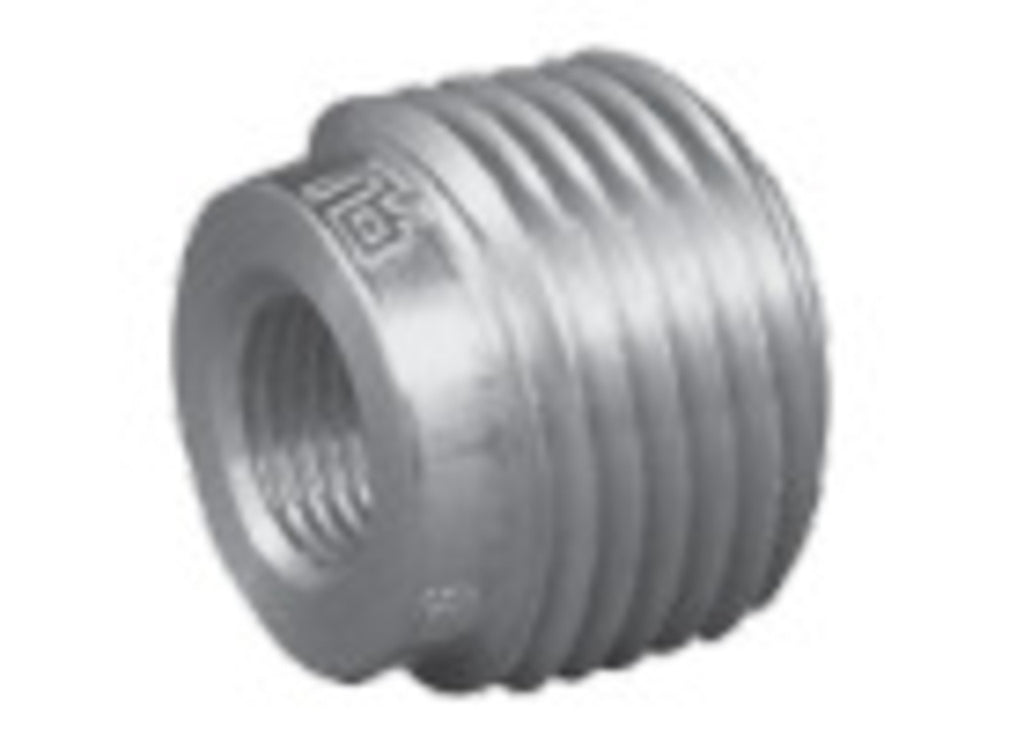

RB200150A - Appleton - 2" x 1‑1/2" Threaded Aluminum Reducing Bushing
The Appleton RB200150A is a high-quality threaded aluminum reducing bushing designed to securely reduce conduit size from 2 inches to 1-1/2 inches. Engineered for use in hazardous and corrosive environments, this bushing offers excellent durability and corrosion resistance. Its lightweight, copper-free aluminum construction makes it ideal for industrial applications where explosion-proof performance is essential.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- RB75-50 thru RB200-150 all materials: Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and, 2, Groups IIA, IIB, IIC; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- RB-200-100 thru RB400-350: Class I, Division 1 and 2, Groups B, C, D; Class I, Zone 1 and 2, Groups IIA, IIB + H2; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Material and Finishes
- Steel with zinc electroplate. Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat. Aluminum with natural finish
