Description

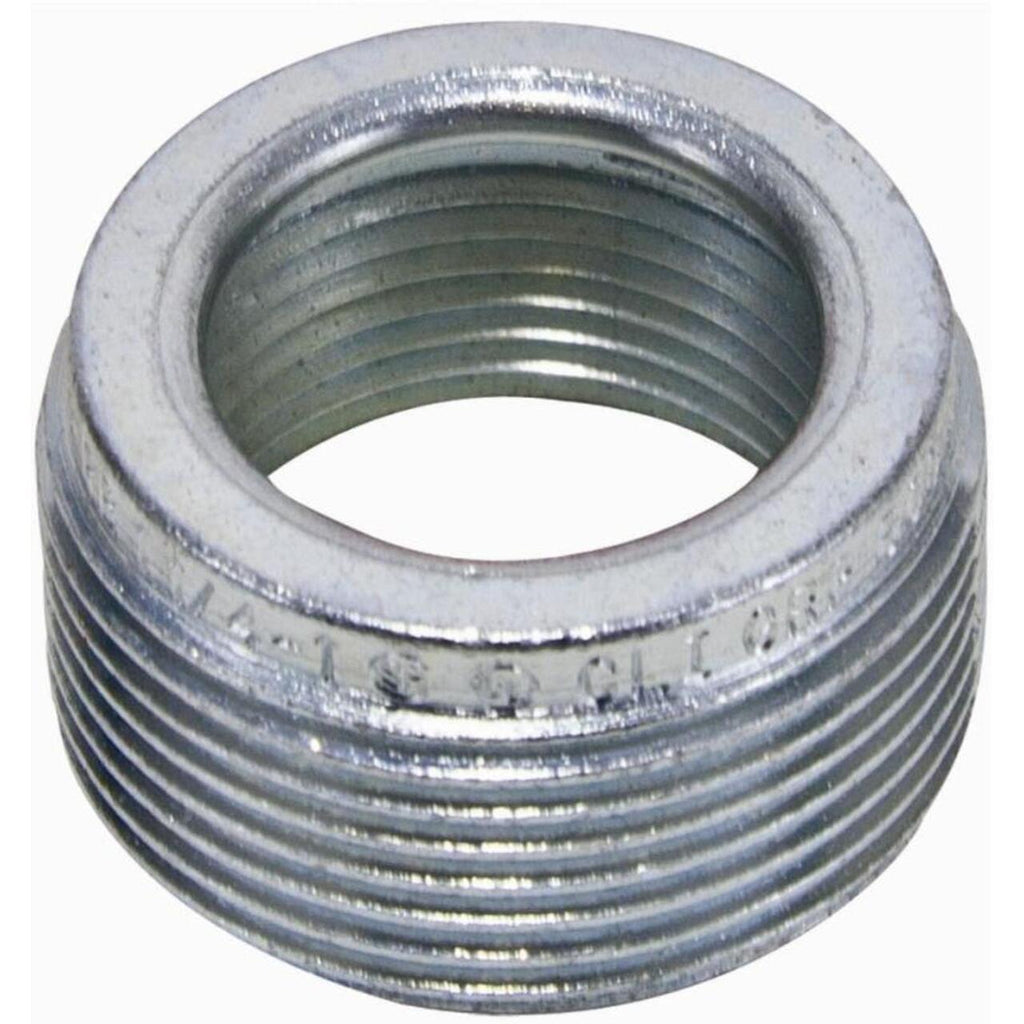

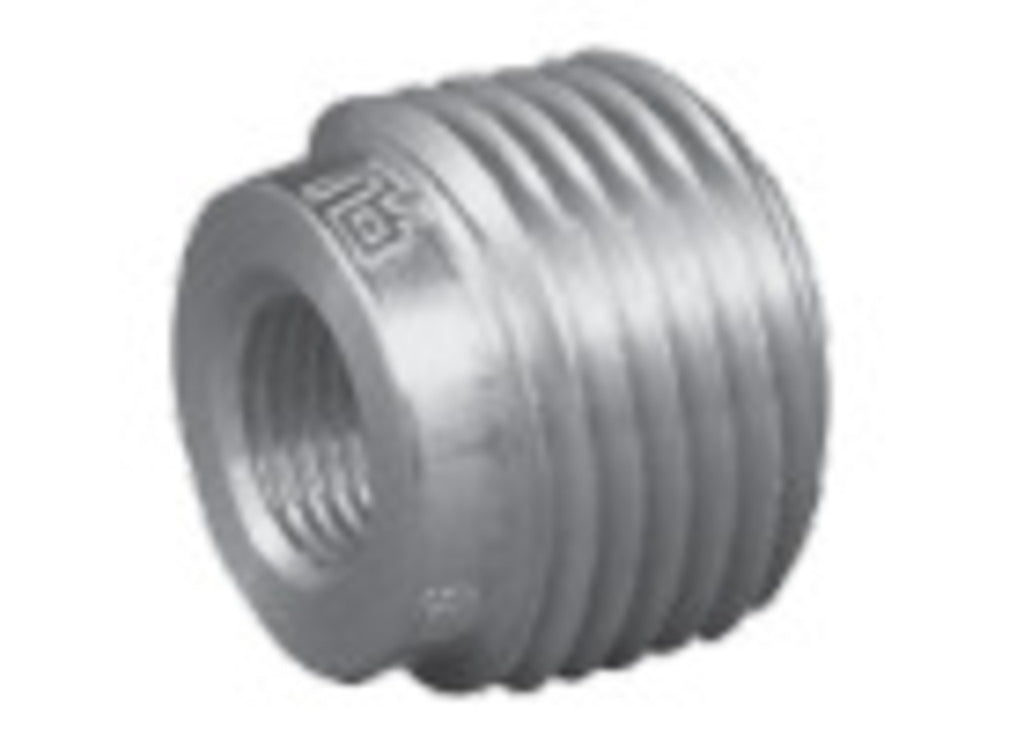

RB12575A - Appleton - 1‑1/4" x 3/4" Threaded Aluminum Reducing Bushing
An aluminum version of RB12575, this reducer handles conduit size adjustments from 1-1/4" to 3/4". It's lightweight, corrosion-resistant, and explosionproof—suitable for both indoor and outdoor hazardous locations.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- RB75-50 thru RB200-150 all materials: Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and, 2, Groups IIA, IIB, IIC; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- RB-200-100 thru RB400-350: Class I, Division 1 and 2, Groups B, C, D; Class I, Zone 1 and 2, Groups IIA, IIB + H2; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Material and Finishes
- Steel with zinc electroplate. Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat. Aluminum with natural finish
