Description

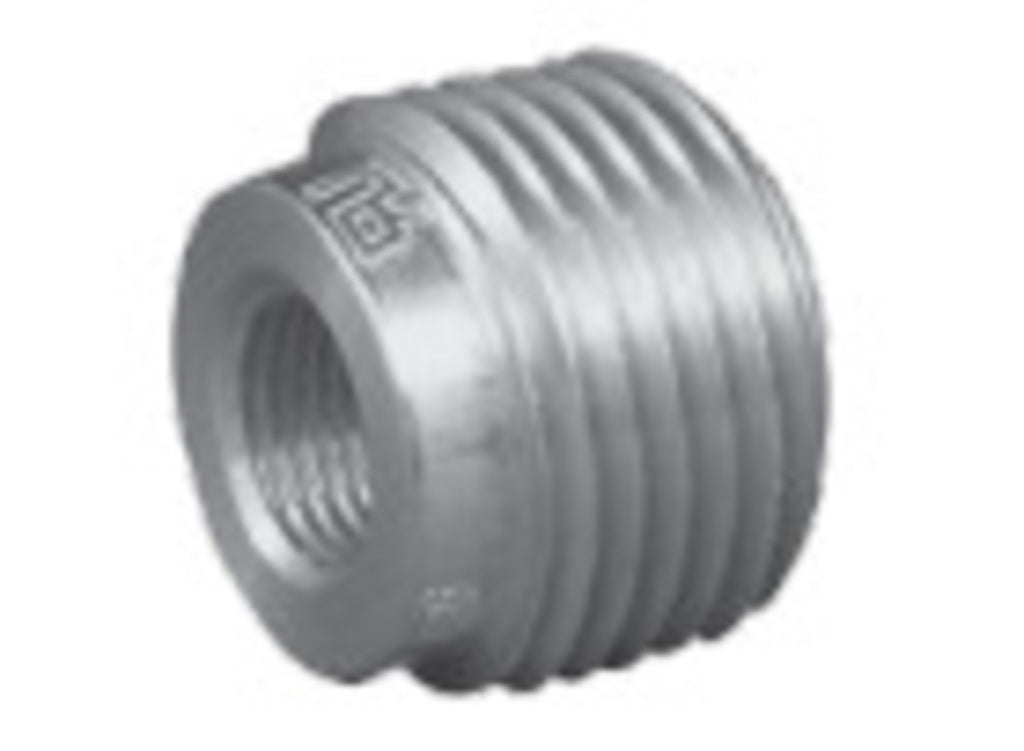

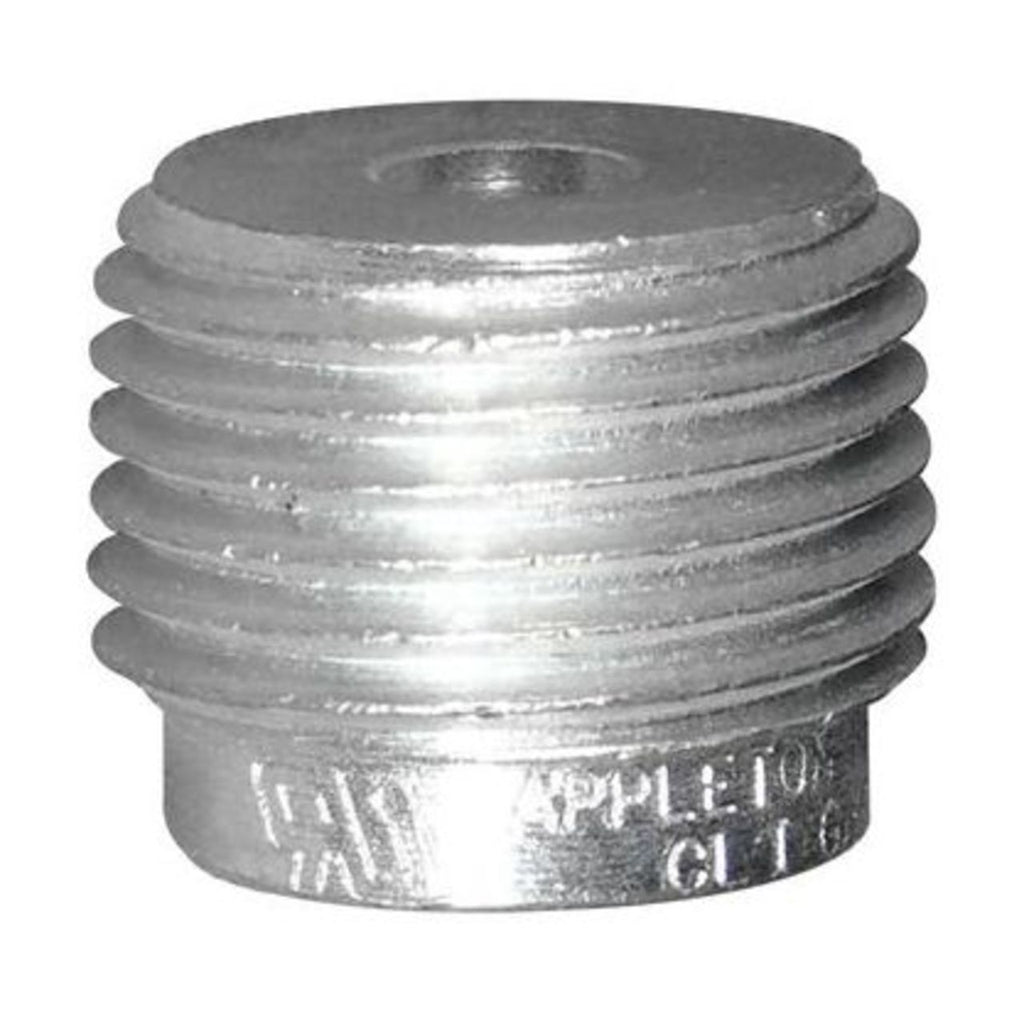

RB300200 - Appleton - 3" x 2" Threaded Malleable Iron Reducing Bushing
The Appleton RB300200 is a heavy-duty reducing bushing designed to transition conduit sizes from 3 inches to 2 inches. It ensures a secure, threaded connection while maintaining the mechanical integrity of the system. Ideal for use in hazardous and industrial environments, this bushing provides reliable grounding continuity and smooth wire pulling. Its durable construction supports long-term performance in challenging conditions.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- RB75-50 thru RB200-150 all materials: Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and, 2, Groups IIA, IIB, IIC; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- RB-200-100 thru RB400-350: Class I, Division 1 and 2, Groups B, C, D; Class I, Zone 1 and 2, Groups IIA, IIB + H2; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Material and Finishes
- Steel with zinc electroplate. Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat. Aluminum with natural finish
PRODUCT DATASHEET
