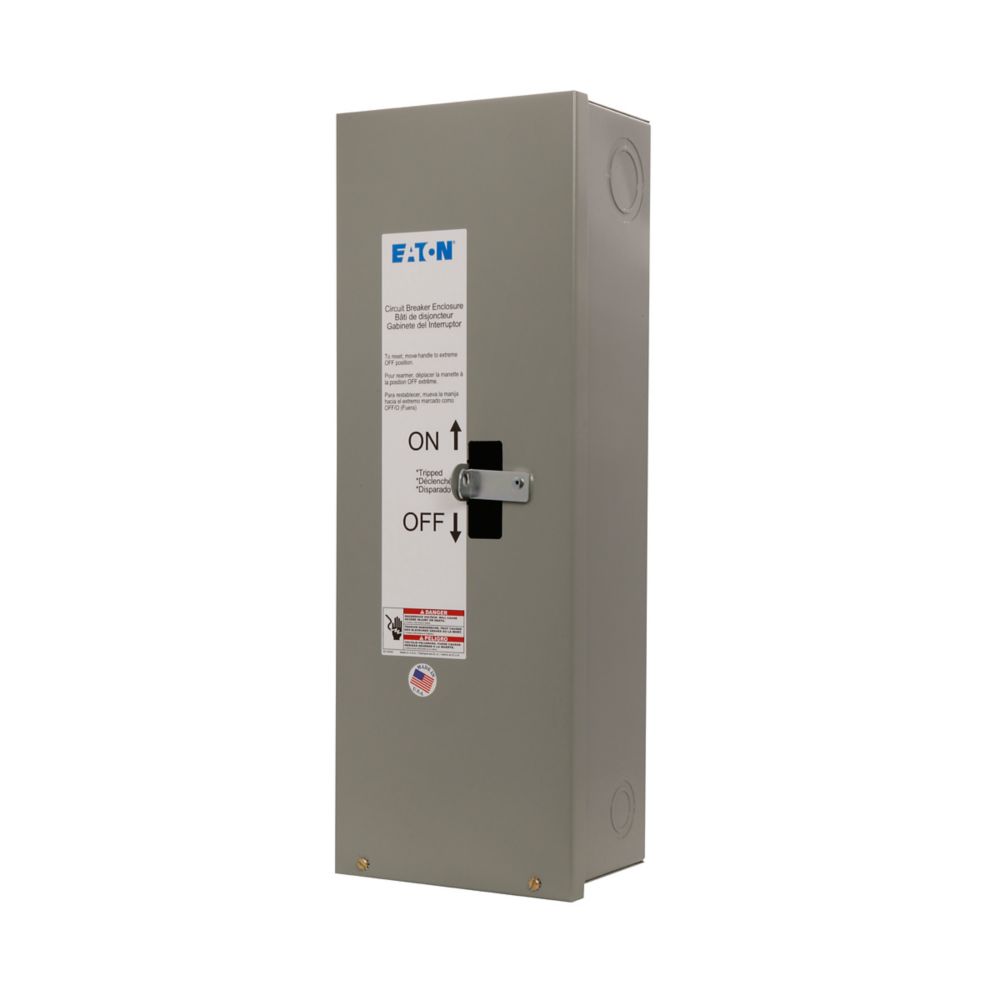

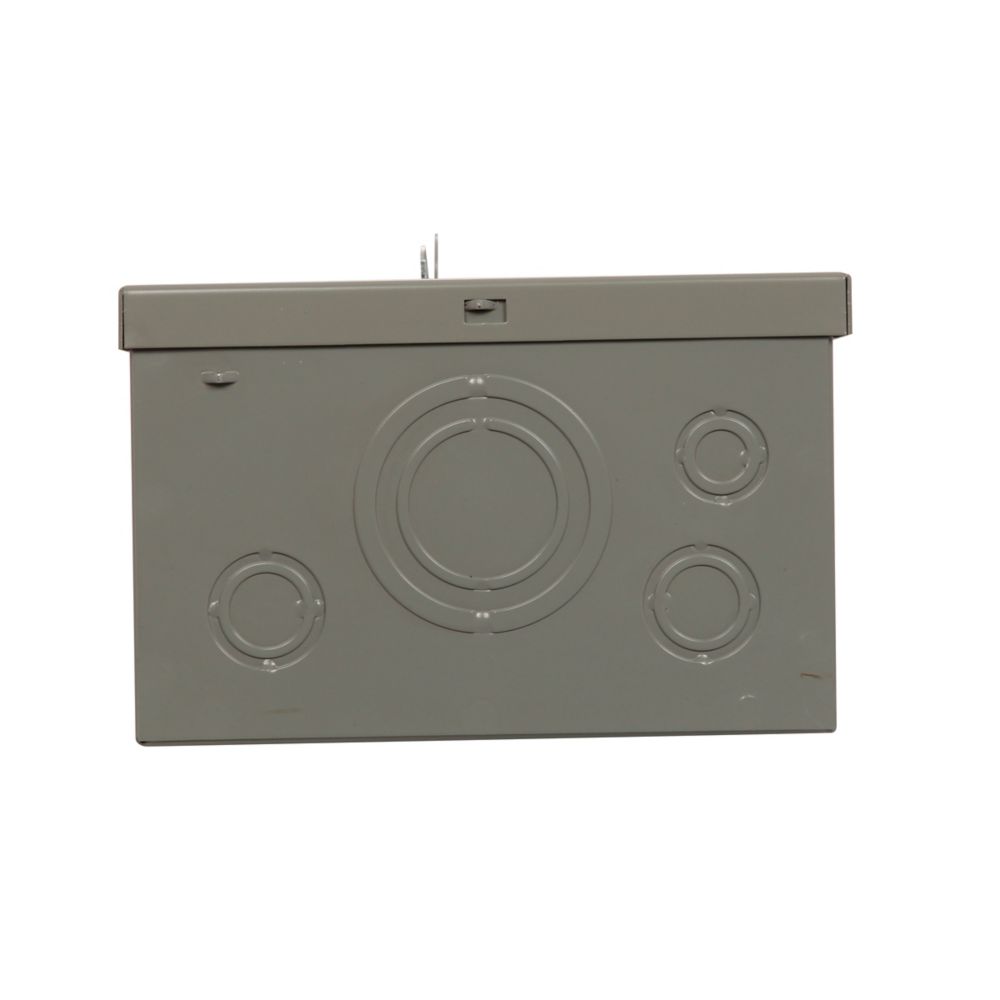

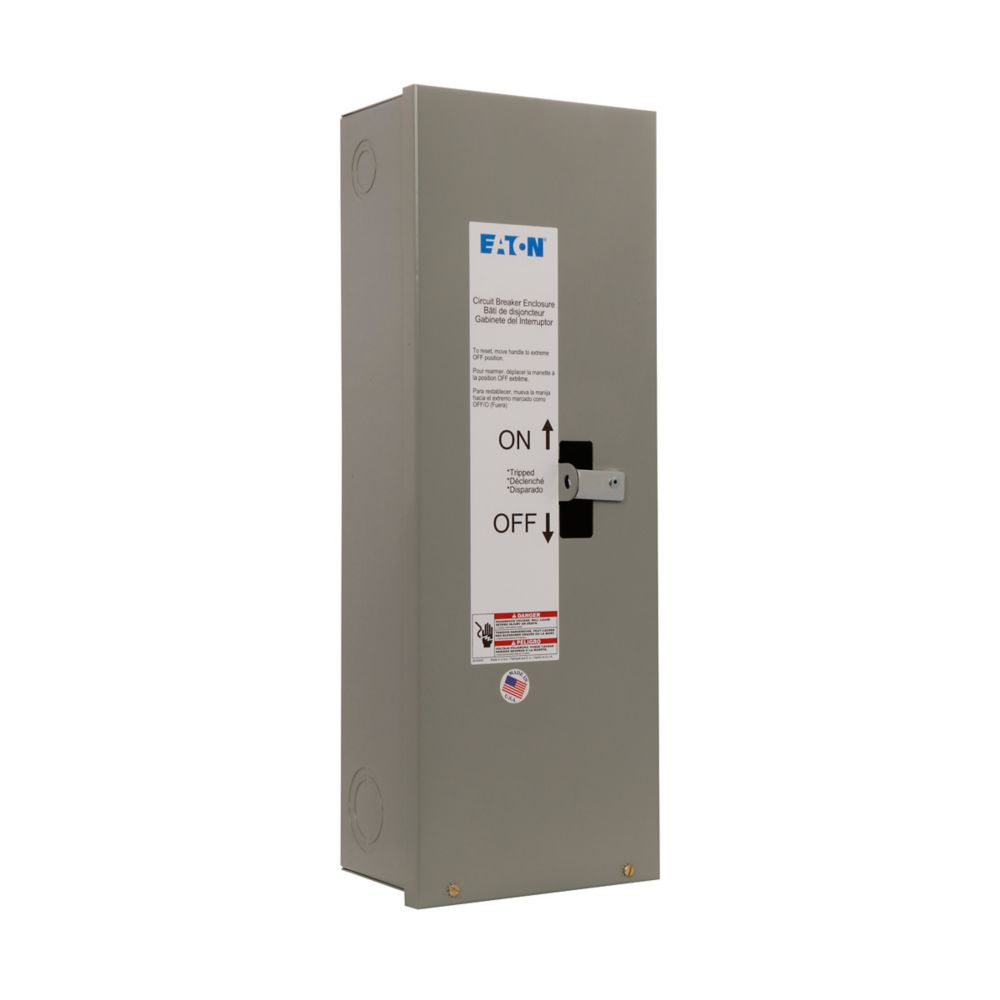

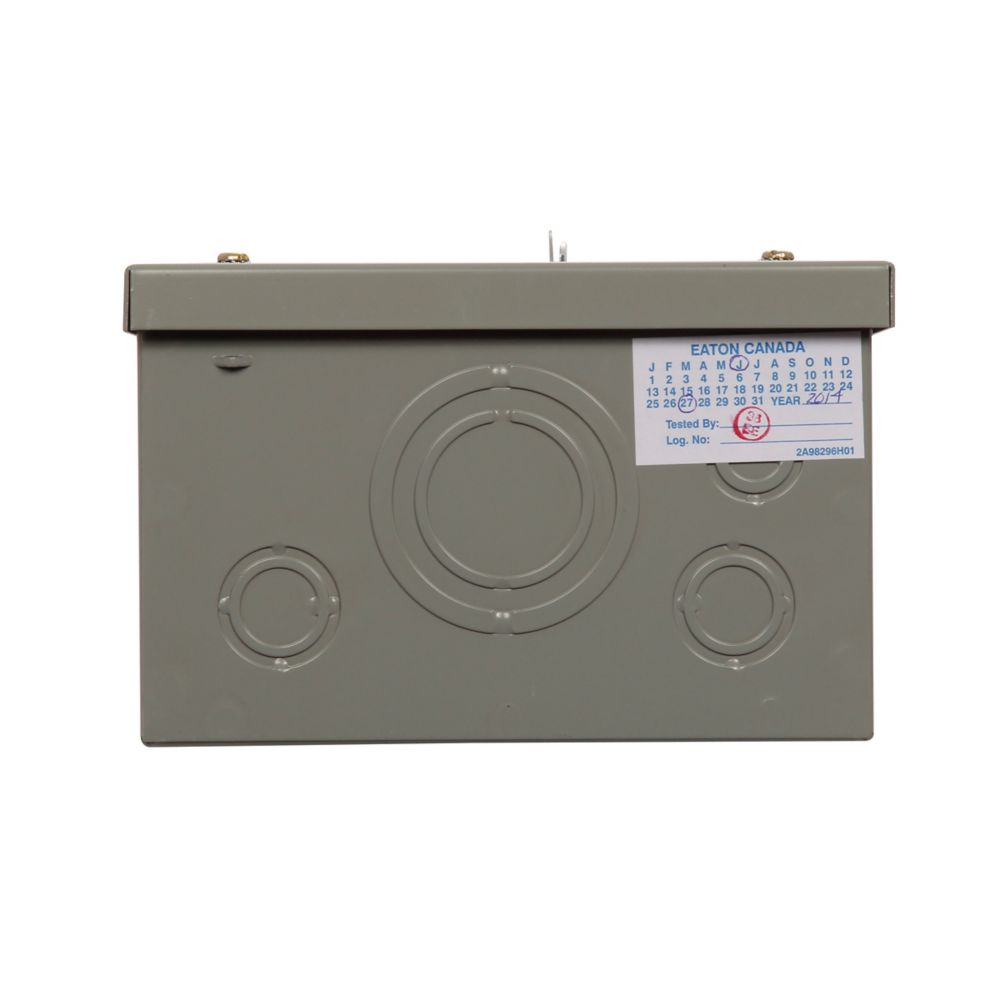

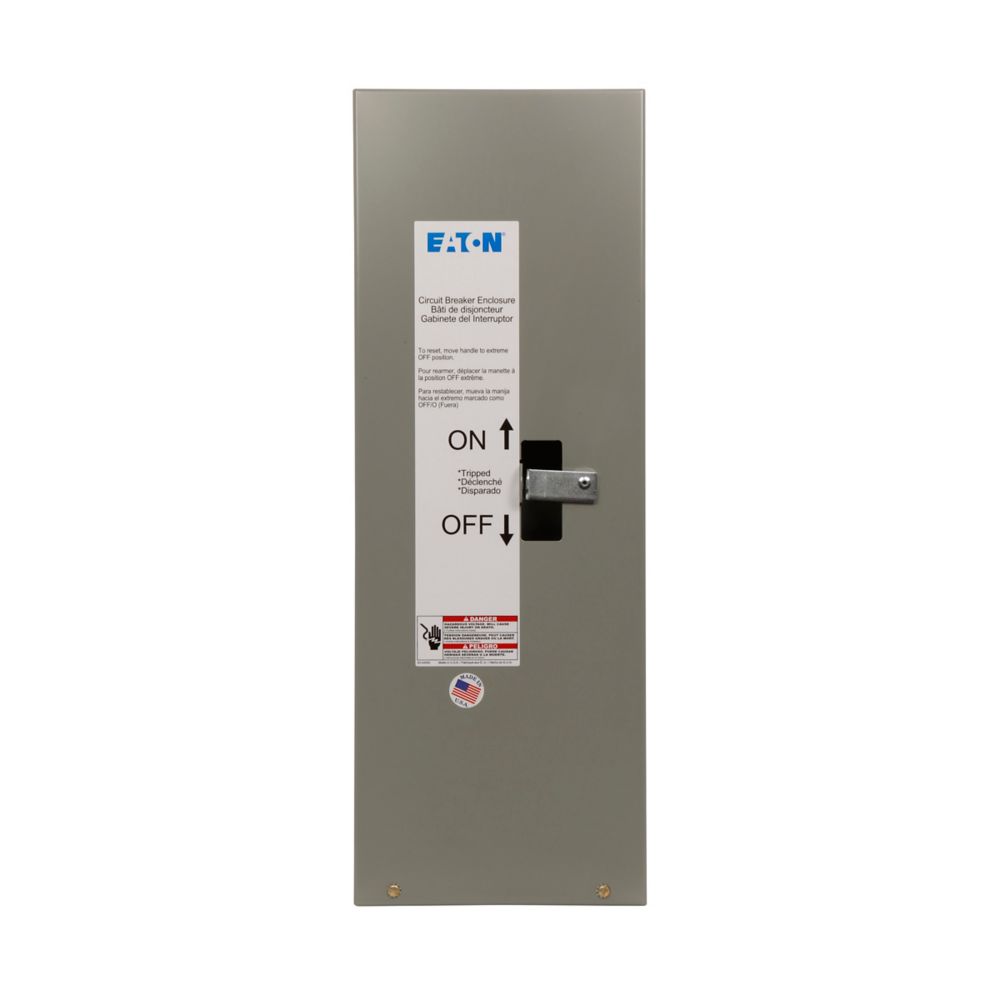

SFDN225 - Eaton Cutler Hammer - 125-225A Enclosed Circuit Breakers
The Eaton SFDN225 is a surface-mounted NEMA 1 enclosure for Series C molded-case breakers, compatible with frame sizes from 15 to 225 A (ED, FD, HFD, FDC series). Constructed from steel and equipped with knockouts, it measures 6.28″ deep × 8.56″ wide × 23.25″ high and weighs about 15 lb, offering robust indoor protection. UL-listed and CSA-certified for residential and light commercial panel applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton enclosed circuit breaker
|
| Catalog Number |
SFDN225
|
| UPC |
786679002339
|
| Product Length/Depth |
6.28 in
|
| Product Height |
23.25 in
|
| Product Width |
8.56 in
|
| Product Weight |
15 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
With knockouts.
|
| Global Catalog |
SFDN225
|
| Product Type |
Enclosed circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
125-225A
|
| Circuit breaker type |
FD, FDB, HFD, FDC, ED, EDH, EDC, FDC
|
| Enclosure |
NEMA 1
|
| Series |
Series C
|
| Mounting Method |
Surface mounting
|
| Type |
Circuit Breaker Enclosure
|
