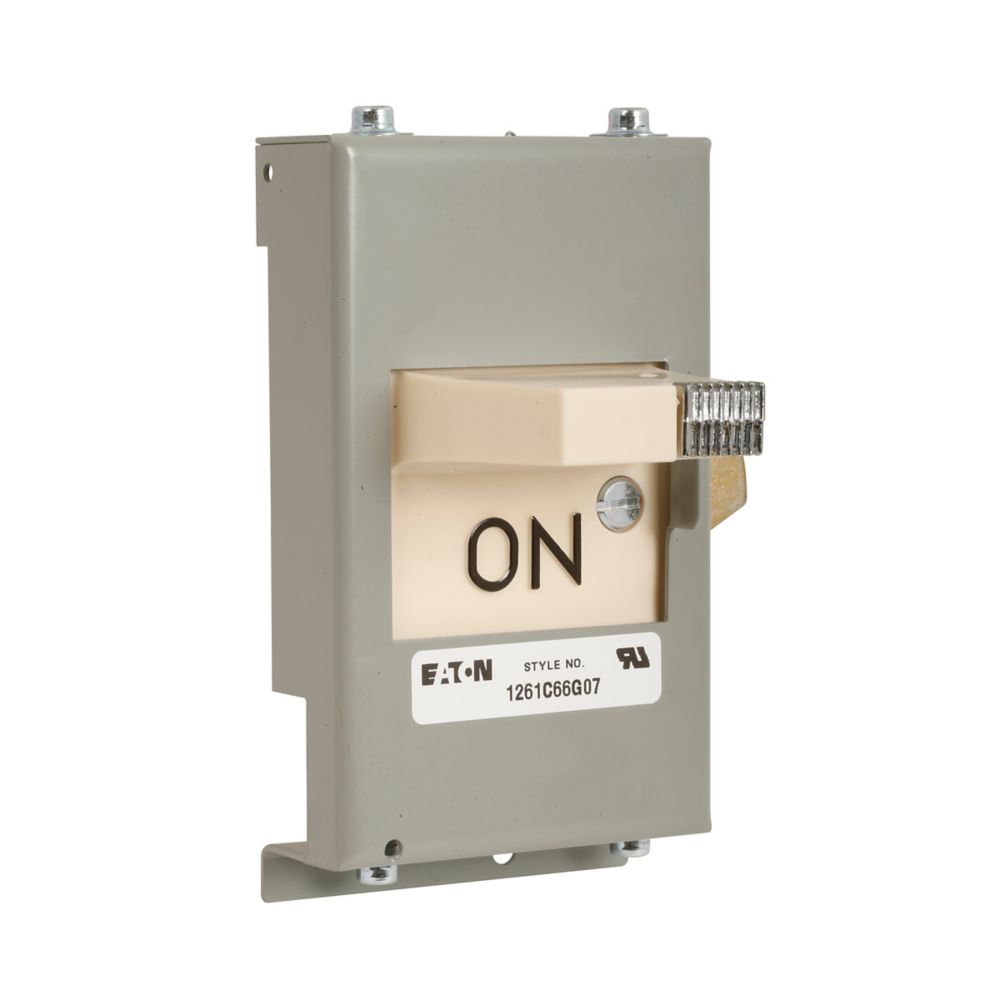

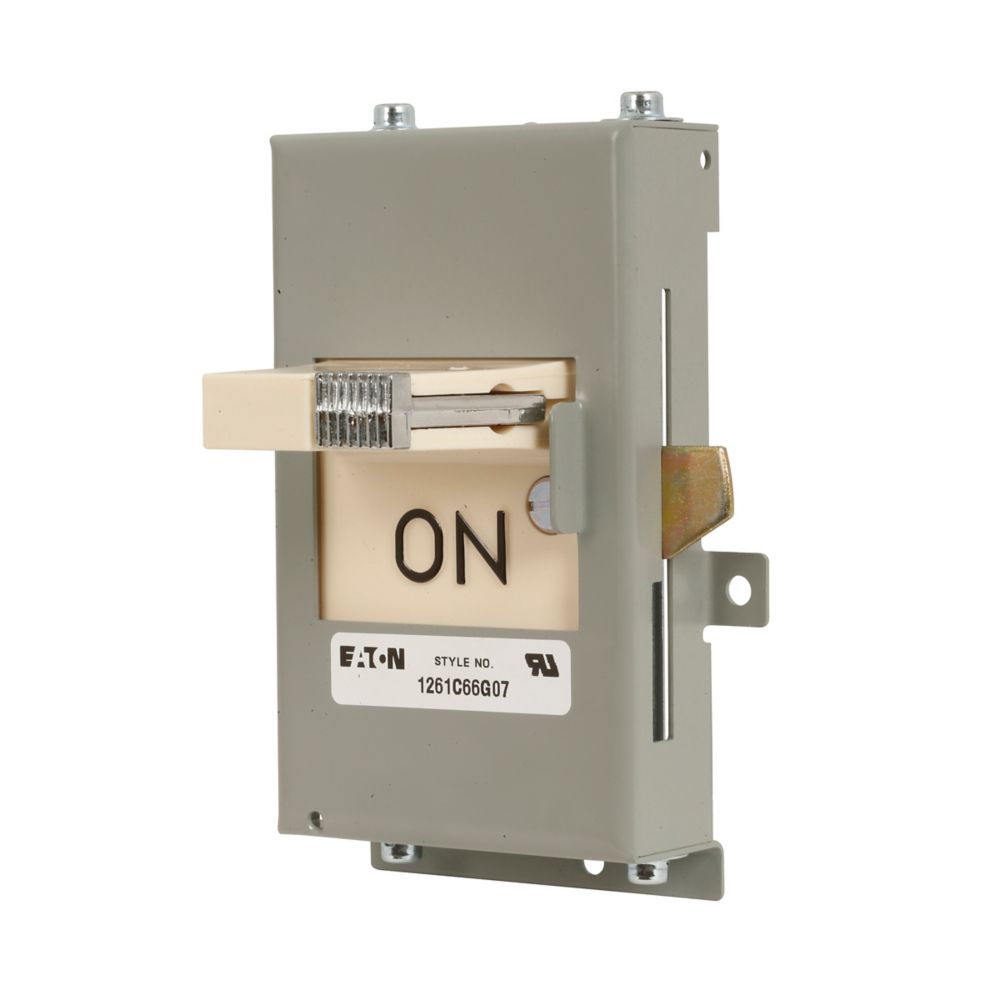

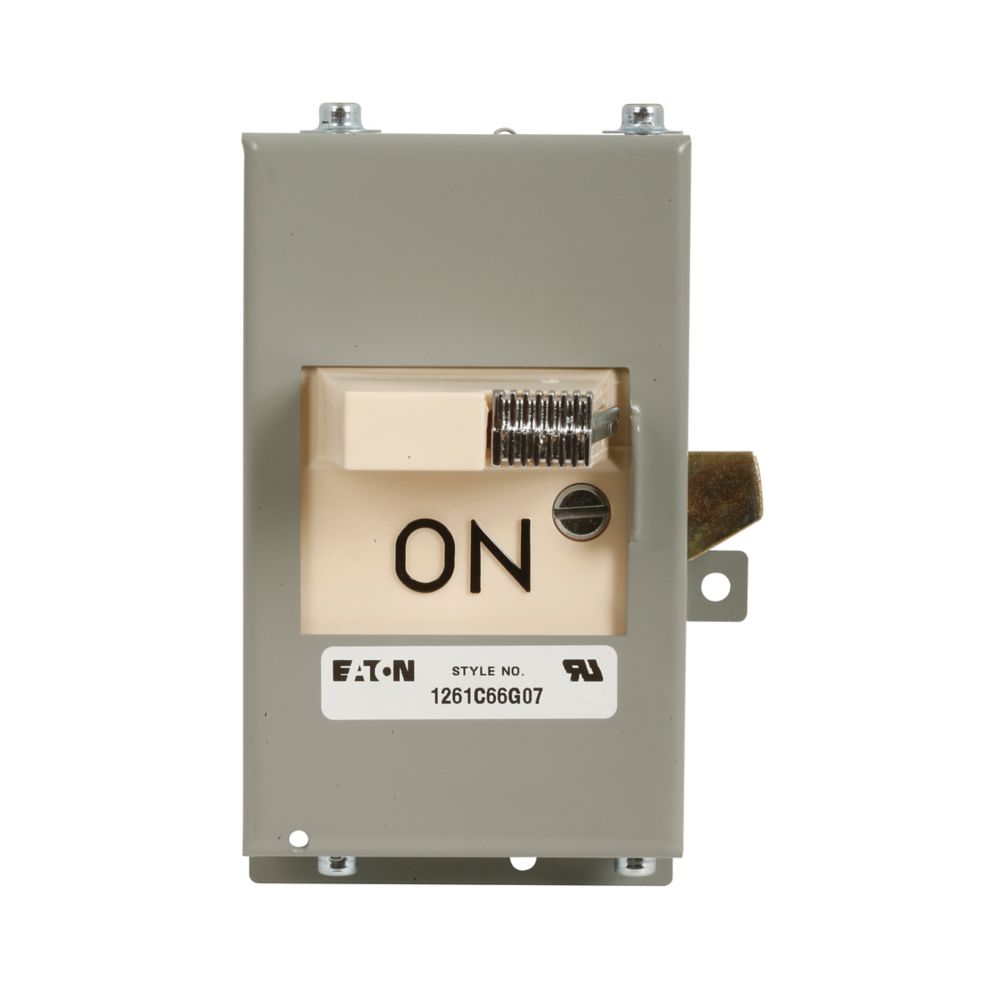

SMCU150FD - Eaton Cutler Hammer - Handle Mechanism F-Frame Series G J-K Frame
The Eaton SMCU150FD is a type MC handle mechanism designed for through-door operation of F-frame molded case circuit breakers (Series G, J–K frames) in NEMA 1 enclosures. Compact (5″ deep × 3″ high × 6.1″ wide), weighing 1.15 lb, it provides reliable manual control in industrial panel systems. This accessory is backed by Eaton’s one-year installation warranty.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory handle mechanism
|
| Catalog Number |
SMCU150FD
|
| UPC |
786679808498
|
| Product Length/Depth |
5 in
|
| Product Height |
3 in
|
| Product Width |
6.1 in
|
| Product Weight |
1.15 lb
|
| Compliances |
Contact Manufacturer
|
| Global Catalog |
SMCU150FD
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Used with |
F-frame
|
| Frame size |
Frame J-K
|
| Series |
Series G
|
| Type |
Handle mechanism
|
