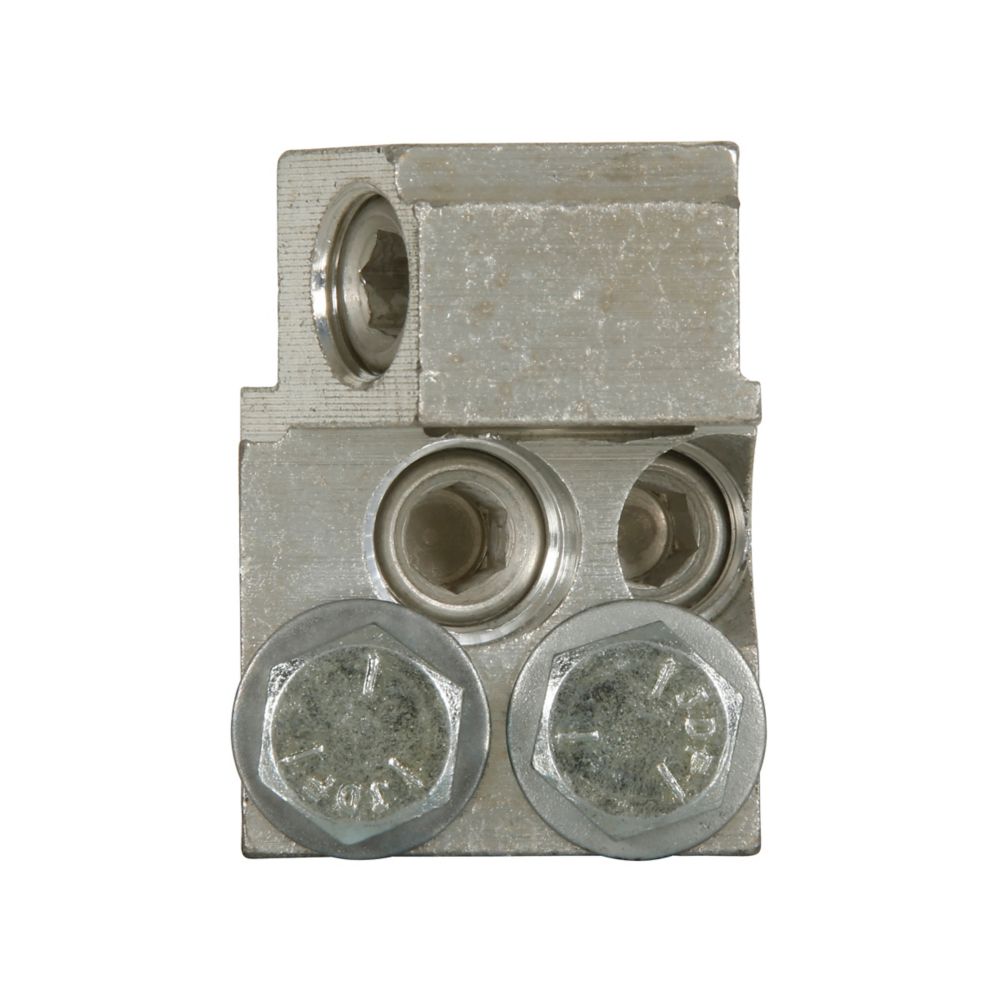

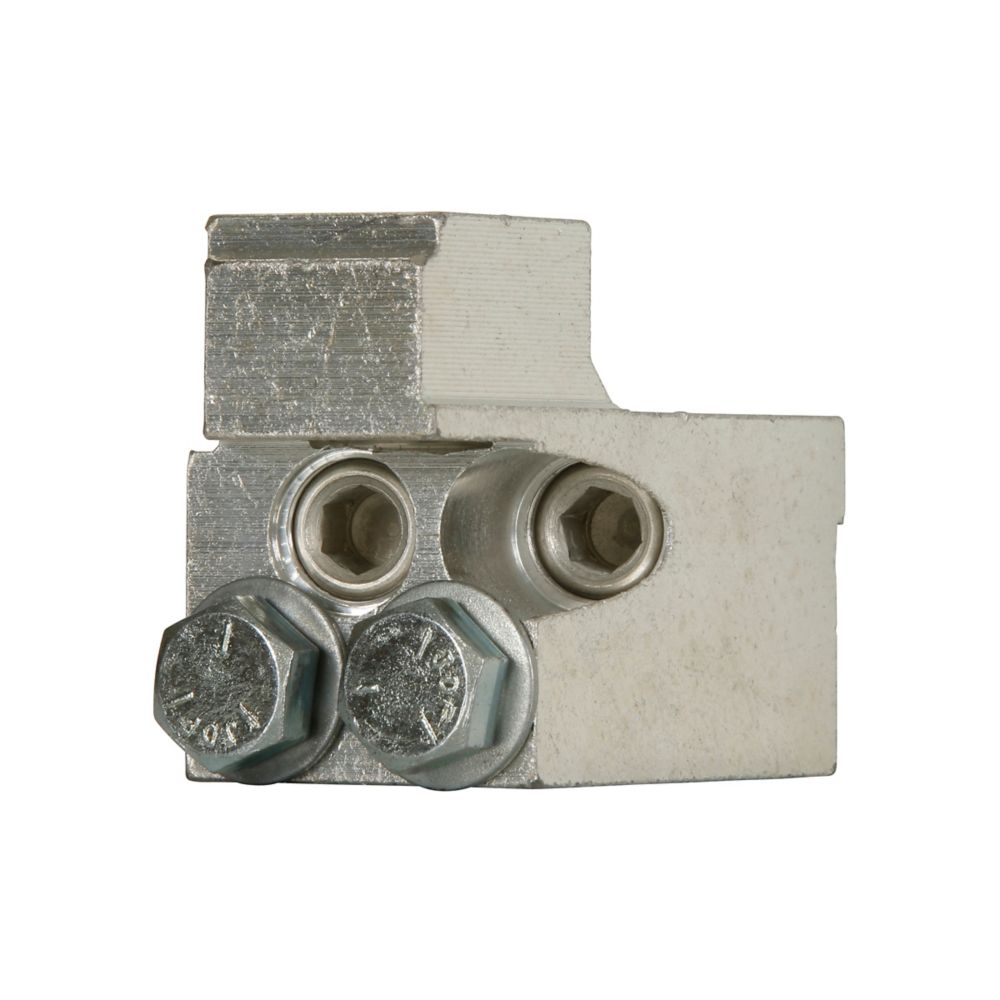

TA1201NB1 - Eaton Cutler Hammer - 1200A - Molded Case Circuit Breaker Accessory Terminal
The Eaton TA1201NB1 terminal kit supports 1200 A N-Frame circuit breakers (Series G, Frame J-K) and uses standard Cu/Al pressure lugs for three conductors ranging from 500–750 kcmil. Its compact form factor is approximately 3.2″ × 2.5″ × 4.4″, with a weight of 1.25 lb, and it's field-installable for flexible installation. Reliable UL-listed accessory for high-current panel resilience.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory terminal
|
| Catalog Number |
TA1201NB1
|
| UPC |
786679612347
|
| Product Length/Depth |
3.2 in
|
| Product Height |
4.4 in
|
| Product Width |
2.5 in
|
| Product Weight |
1.25 lb
|
| Compliances |
Contact Manufacturer
|
| Global Catalog |
TA1201NB1
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Used with |
N-frame
|
| Amperage Rating |
1200 A
|
| Frame size |
Frame J-K
|
| Series |
Series G
|
| Wire size |
(3) 500-750 kcmil
|
| Type |
Standard Cu/Al pressure terminals
|
