Description

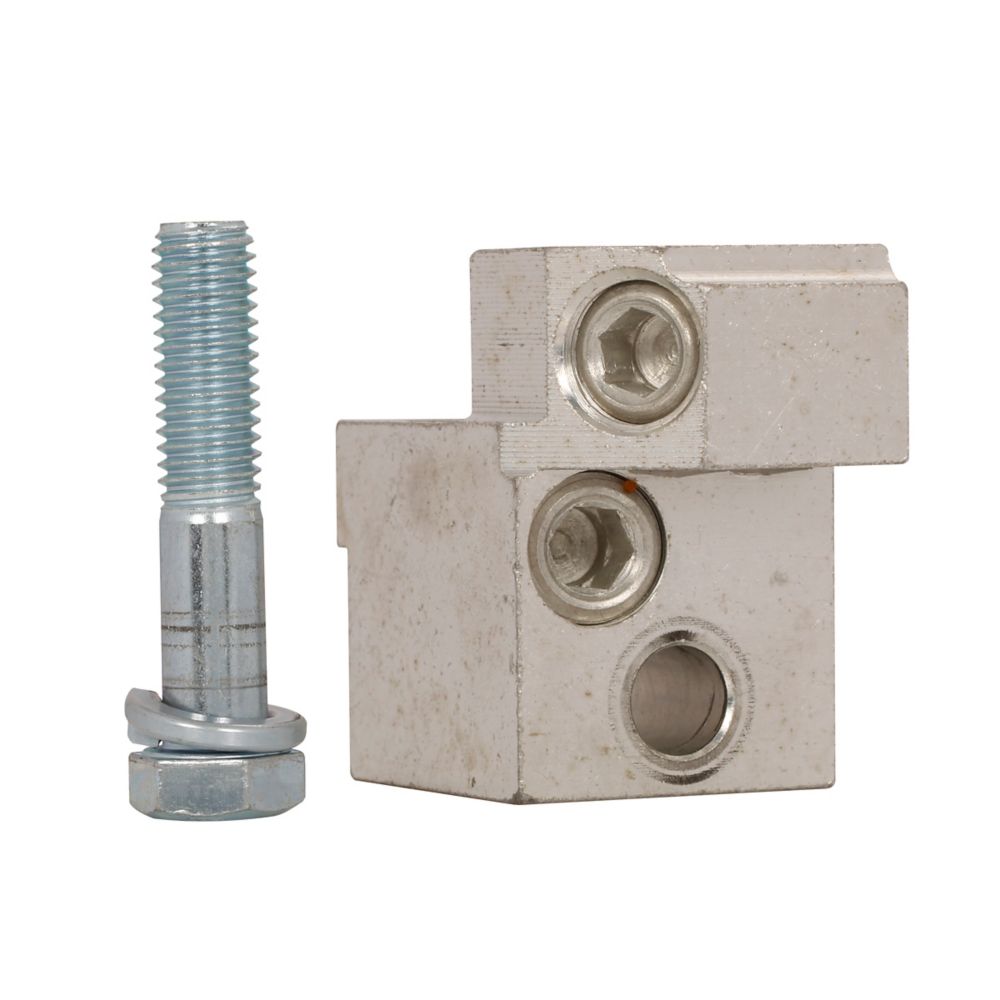

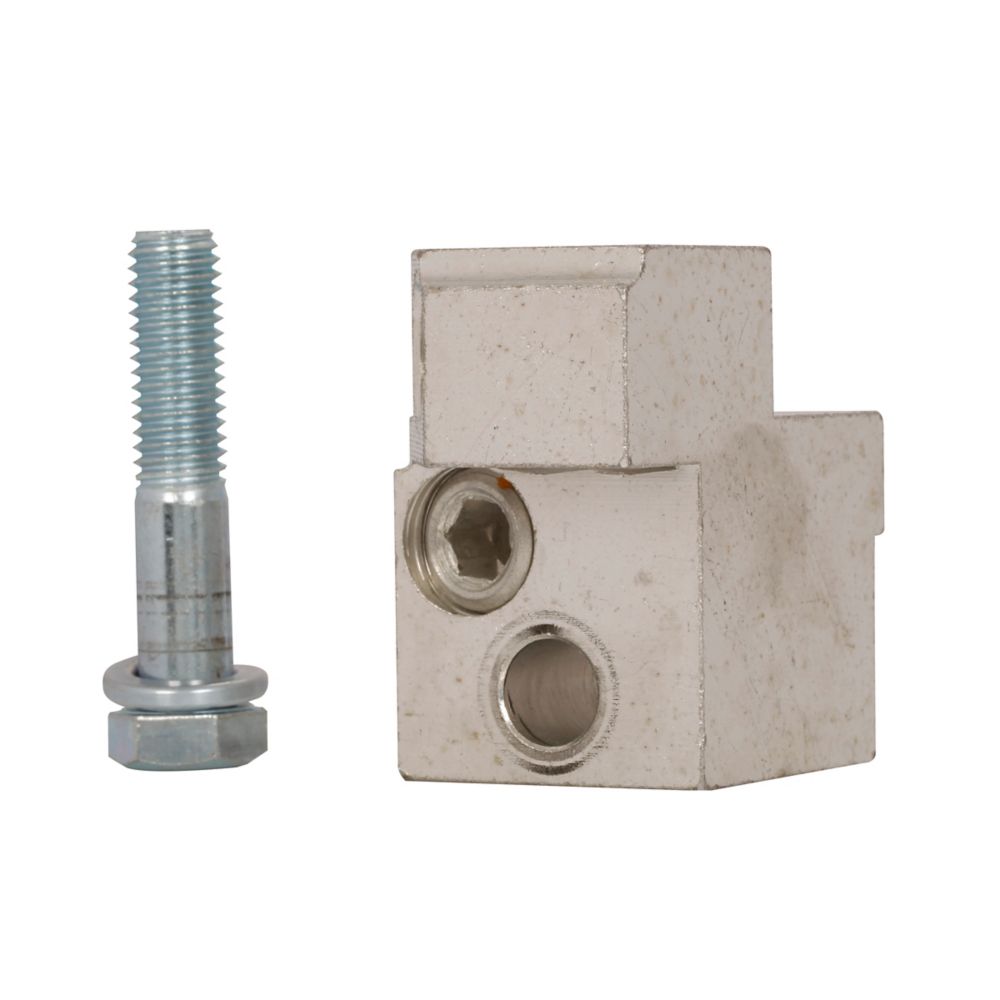

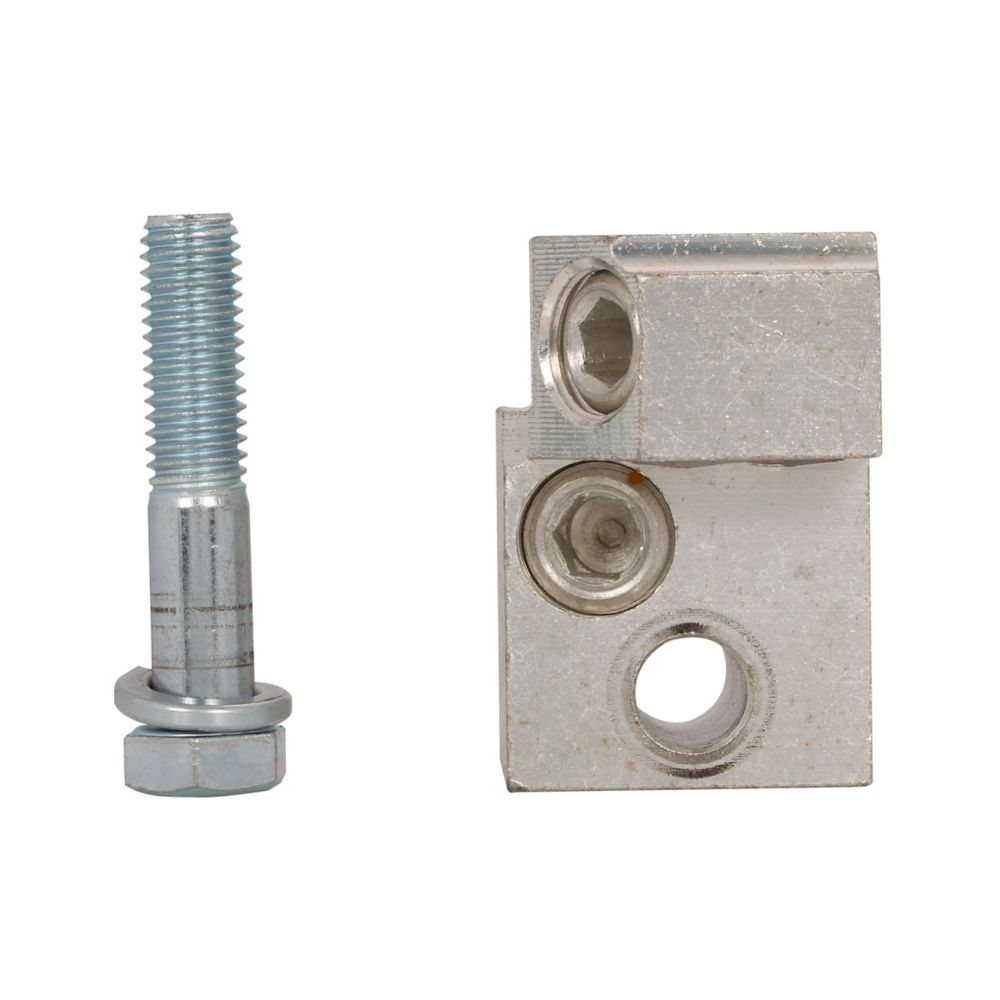

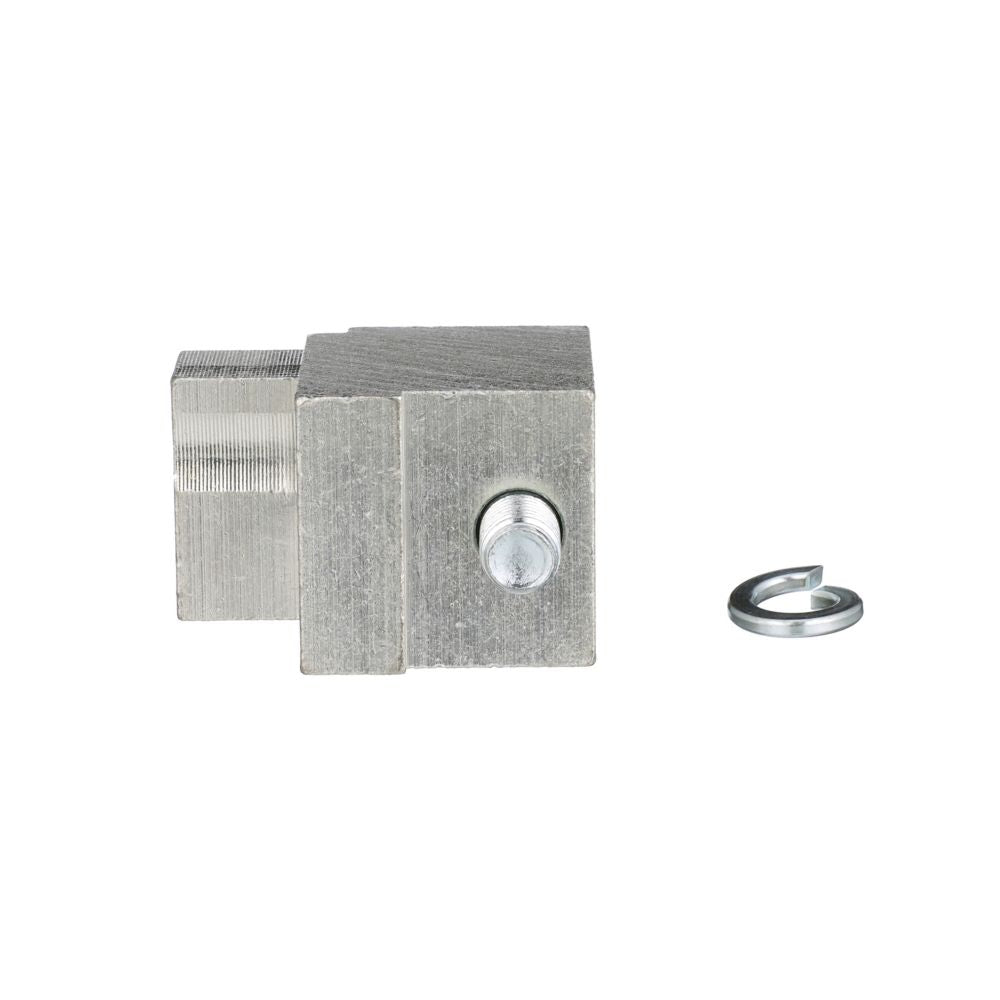

TA801MA - Eaton Cutler Hammer - 800A Accessory Terminal Molded Case Circuit Breakers
Eaton molded case circuit breaker accessory terminal, Optional Al/Cu pressure terminals, 800 A, (2) 500-750 kcmil Cu/Al, For type MAM, HMAM, MAMH breakers, Frame J-K.
GENERAL SPECIFICATIONS
| Product Name |
Eaton molded case circuit breaker accessory terminal
|
| Catalog Number |
TA801MA
|
| UPC |
786679679289
|
| Product Length/Depth |
3.2 in
|
| Product Height |
4.5 in
|
| Product Width |
2.5 in
|
| Product Weight |
0.75 lb
|
| Certifications |
UL Listed
|
| Global Catalog |
TA801MA
|
| Product Type |
Molded case circuit breaker accessory
|
PRODUCT SPECIFICATIONS
| Used with |
For type MAM, HMAM, MAMH breakers
|
| Amperage Rating |
800 A
|
| Frame size |
Frame J-K
|
| Wire size |
(2) 500-750 kcmil Cu/Al
|
| Type |
Optional Al/Cu pressure terminals
|
PRODUCT DATASHEET
