Description

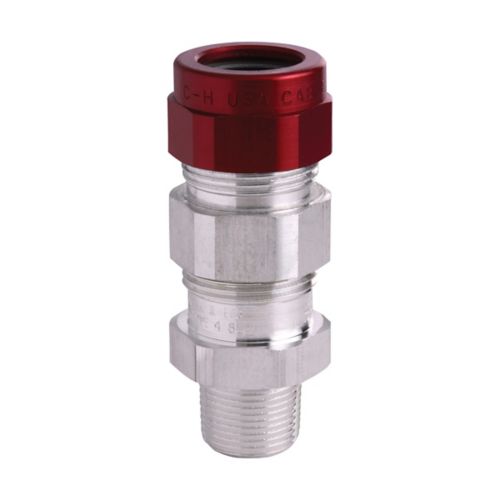

TMCX8302 - Eaton Crouse-Hinds Series - 3" TMCX Cable Gland
Eaton Crouse-Hinds series TMCX cable gland,Metal-cladcorrugated,TECK armoured and tray cable,Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:2.52-3.28", 3" NPT,Armor Range:2.45-3.02"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMCX cable gland
|
| Catalog Number |
TMCX8302
|
| UPC |
782274414744
|
| Product Length/Depth |
7.5 in
|
| Product Height |
4.88 in
|
| Product Width |
4.88 in
|
| Product Weight |
7.55 lb
|
PRODUCT SPECIFICATIONS
| Protection type |
Explosion-proof
|
| Cable type |
Metal-clad with interlocked or continuously welded corrugated armoured
TECK armoured Tray cable |
| Gland type |
Armoured Barrier and Non-armoured Barrier
|
| Material |
Aluminum
|
| Thread Size |
3"
|
| Thread type |
NPT
|
| Armor (min/max) |
2.45-3.02"
|
| Outer sheath (min/max) |
2.52-3.28"
|
