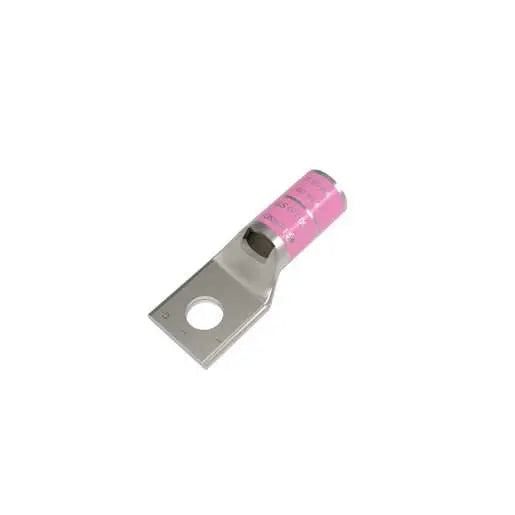

YA25LBOX - Burndy - 5/16" Stud 1-Hole Standard Barrel Compression Terminal
CU Compression Terminal Code Conductor, Beveled Entry, 1 Hole W/InspWindow, 1/0AWG (Code) 100 (Navy), 600V-35kV, 5/16" Stud, Standard Barrel, Electro-Tin Plated.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
GENERAL SPECIFICATIONS
| Application |
For Code Conductor |
| Catalog Number |
YA25LBOX |
| Color Code |
Pink |
| Connector Type |
STANDARD BARREL |
| Die Index |
12 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
|
| Feature - Barrel Type |
Standard |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
1 |
| Physical Attribute - Tongue Type |
Standard |
| Plated |
Y |
| Plating type |
Tin - Electro Plated |
| Sub Brand |
HYLUG |
| Trade Name |
HYLUG™ |
| Type |
Standard Barrel, Tin Plated |
| UPC |
781810553251 |
| UPC 14 Digit GTIN |
00781810553251
|
Dimensions
| Dimension - B Length fraction |
7/8 in |
| Dimension - B Length inch |
0.88 in |
| Dimension - Bolt Size fraction |
5/16 |
| Dimension - Bolt Size inch |
0.3125 |
| Dimension - D inch |
0.58 in |
| Dimension - Hole Size fraction |
5/16 |
| Dimension - Hole Size inch |
0.38 |
| Dimension - Hole Size mm |
10 mm |
| Dimension - L Length Overall mm |
50 mm |
| Dimension - Length Overall inch |
1.96 in |
| Dimension - N inch |
0.34 in |
| Dimension - Outside Diameter inch |
0.51 in |
| Dimension - Pad Width inch |
0.75 in |
| Dimension - Strip Length inch |
15/16 |
| Dimension - Stud Size fraction |
5/16 |
| Dimension - Stud Size inch |
5/16 |
| Dimension - Z (inch) |
0.33 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
Conductor Related
| Conductor - Copper Str Size |
1/0 AWG |
| Conductor - Copper Str Size Range |
1/0 AWG |
| Conductor - Material |
COPPER |
| Conductor Size |
1/0 AWG |
| Conductor Type |
CODE |
Configuration
|
|
STANDARD BARREL |
| Physical Attribute - Number of Holes |
1 |
Logistics
| Carton Quantity |
10 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YA25LBOX
