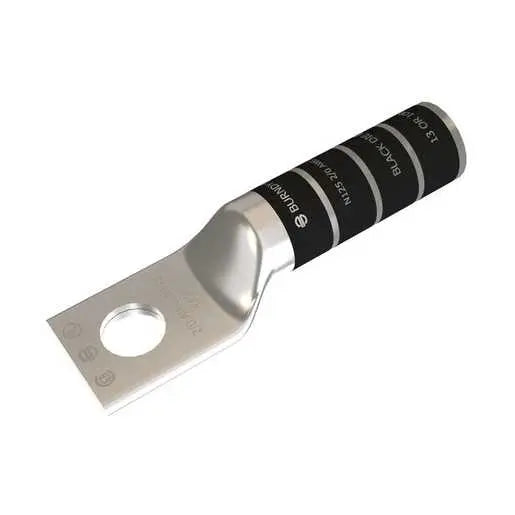

YA26 - Burndy - 3/8" Stud 1-Hole Long Barrel Compression Terminal
2/0 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,BLACK Color Code, 13 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
GENERAL SPECIFICATIONS
| Application |
Wire Termination |
| Catalog Number |
YA26 |
| Color Code |
Black |
| Connector Type |
Long Barrel |
| Die Index |
13 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Chamfered |
| Feature - Barrel Type |
Long |
| Finish Type |
Tin Plated |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
1 |
| Physical Attribute - Tongue Type |
Standard |
| Plated |
Y |
|
|
Tin Electro Plated |
| Sub Brand |
HYLUG |
| Trade Name |
HYLUG™ |
| Type |
Long Barrel, Tin Plated |
| UPC |
781810502600 |
| UPC 14 Digit GTIN |
00781810502600
|
Dimensions
| Dimension - B Length fraction |
1-1/2 in |
| Dimension - B Length inch |
1.50 in |
| Dimension - Bolt Hole Size inch |
0.39 in |
| Dimension - Bolt Size fraction |
3/8 |
| Dimension - Bolt Size inch |
0.38 |
| Dimension - D inch |
0.83 in |
| Dimension - Hole Size fraction |
3/8 |
| Dimension - Hole Size inch |
0.41 |
| Dimension - Hole Size mm |
10.4 mm |
| Dimension - L Length Overall mm |
70 mm |
| Dimension - Length Overall inch |
2.77 in |
| Dimension - N inch |
0.41 in |
| Dimension - Outside Diameter inch |
0.56 in |
| Dimension - Pad Width inch |
0.83 in |
| Dimension - Strip Length inch |
1-9/16 |
| Dimension - Stud Size fraction |
3/8 |
| Dimension - Stud Size inch |
3/8 |
| Dimension - Z (inch) |
0.42 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper Str Navy Size |
125 (61) Navy |
| Conductor - Copper Str Navy Size Range |
125 (61) Navy |
| Conductor - Copper Str Size |
2/0 AWG |
| Conductor - Copper Str Size Range |
2/0 AWG |
| Conductor - Material |
COPPER |
| Conductor Size |
2/0 AWG |
| Conductor Type |
CODE |
Configuration
| Connector Type |
LONG BARREL |
| Physical Attribute - Number of Holes |
1 |
Logistics
| Carton Quantity |
10 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YA26
