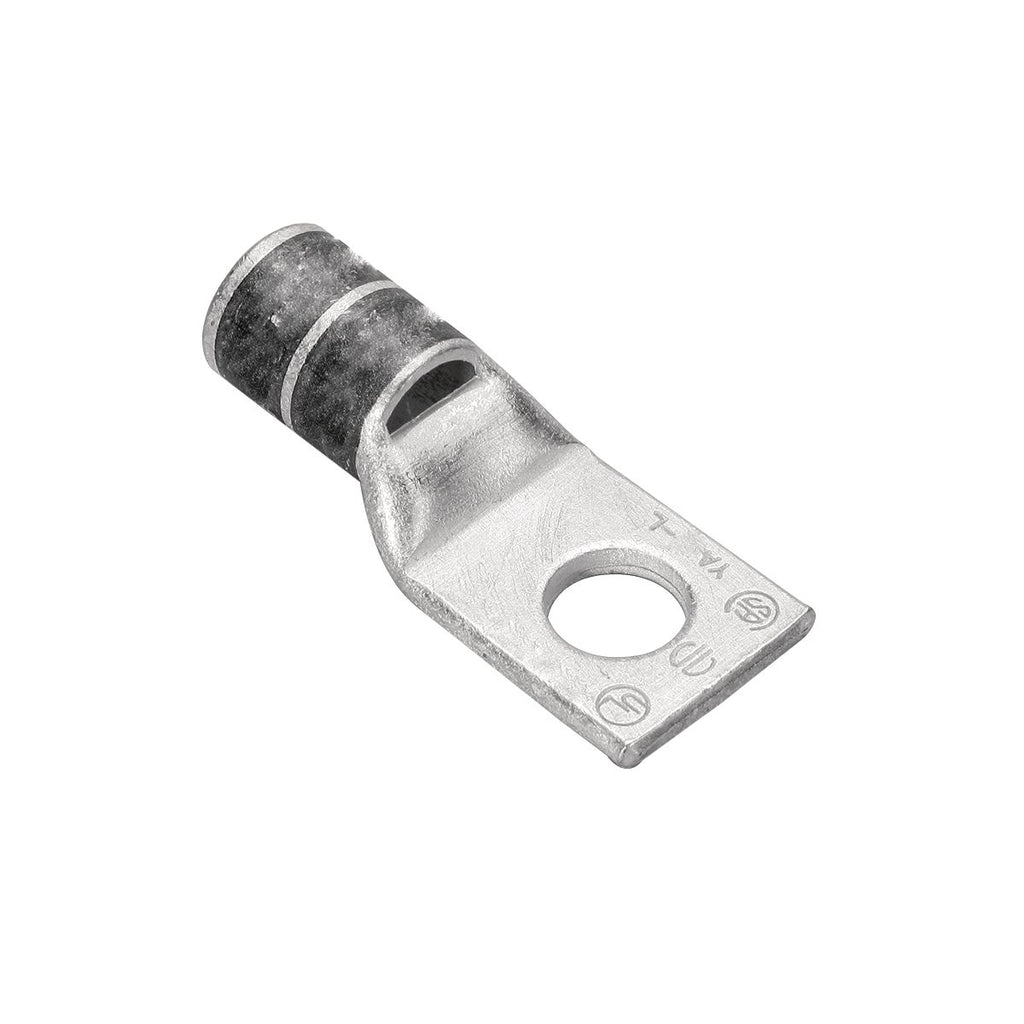

YA26L - Burndy - 1-Hole 3/8" Stud CopperTerminal
Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/InspWindow, 2/0 AWG Str Code, 125 Navy, 600 V-35 kV, 3/8" Stud, Std bbl, Black, 13 Index. UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight.
GENERAL SPECIFICATIONS
| Application For Code Conductor |
For Code Conductor |
| Color Code |
Black |
| Connector Type |
Terminal |
| Die Index |
13 |
| Feature - Barrel Style |
|
| Feature - Barrel Type |
Standard |
| Material |
Copper |
| Physical Attribute - Number of Holes |
1 |
| Plated |
Y |
| Plating Type |
Tin - Electro Plated |
| Sub Brand |
TERMINALS, HYLUG |
| Trade Name |
HYLUG™ |
| Type |
Standard Barrel, Tin Plated |
| UPC |
781810143827 |
Dimensions
| Dimension - B Length fraction |
15/16 in |
| Dimension - B Length inch |
0.94 in |
| Dimension - Bolt Hole Size inch |
0.39 in |
| Dimension - Bolt Size fraction |
3/8 |
| Dimension - D inch |
0.83 in |
| Dimension - Hole Size mm |
10 mm |
| Dimension - L Length Overall mm |
56 mm |
| Dimension - Length Overall inch |
2.19 in |
| Dimension - N inch |
0.41 in |
| Dimension - Outside Diameter inch |
0.56 in |
| Dimension - Pad Width inch |
0.83 in |
| Dimension - Strip Length inch |
1 in |
| Dimension - Stud Size inch |
3/8 |
| Dimension - Z inch |
0.42 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Rating - KVA |
35 kV |
| Rating - Minimum Voltage |
600 |
| Voltage - Maximum |
35000 |
Conductor Related
| Conductor - Copper DLO Size Range |
N/A |
| Conductor - Copper Str Navy Size |
125 (61) Navy |
| Conductor - Copper Str Size Range |
125 (61) Navy |
| Conductor - Copper Str Size |
2/0 AWG |
| Conductor - Copper Str Size Range |
2/0 AWG |
| Conductor Type |
CODE |
Logistics
| Minimum Pack Quantity |
100 |
PRODUCT DATASHEET
YA26L
