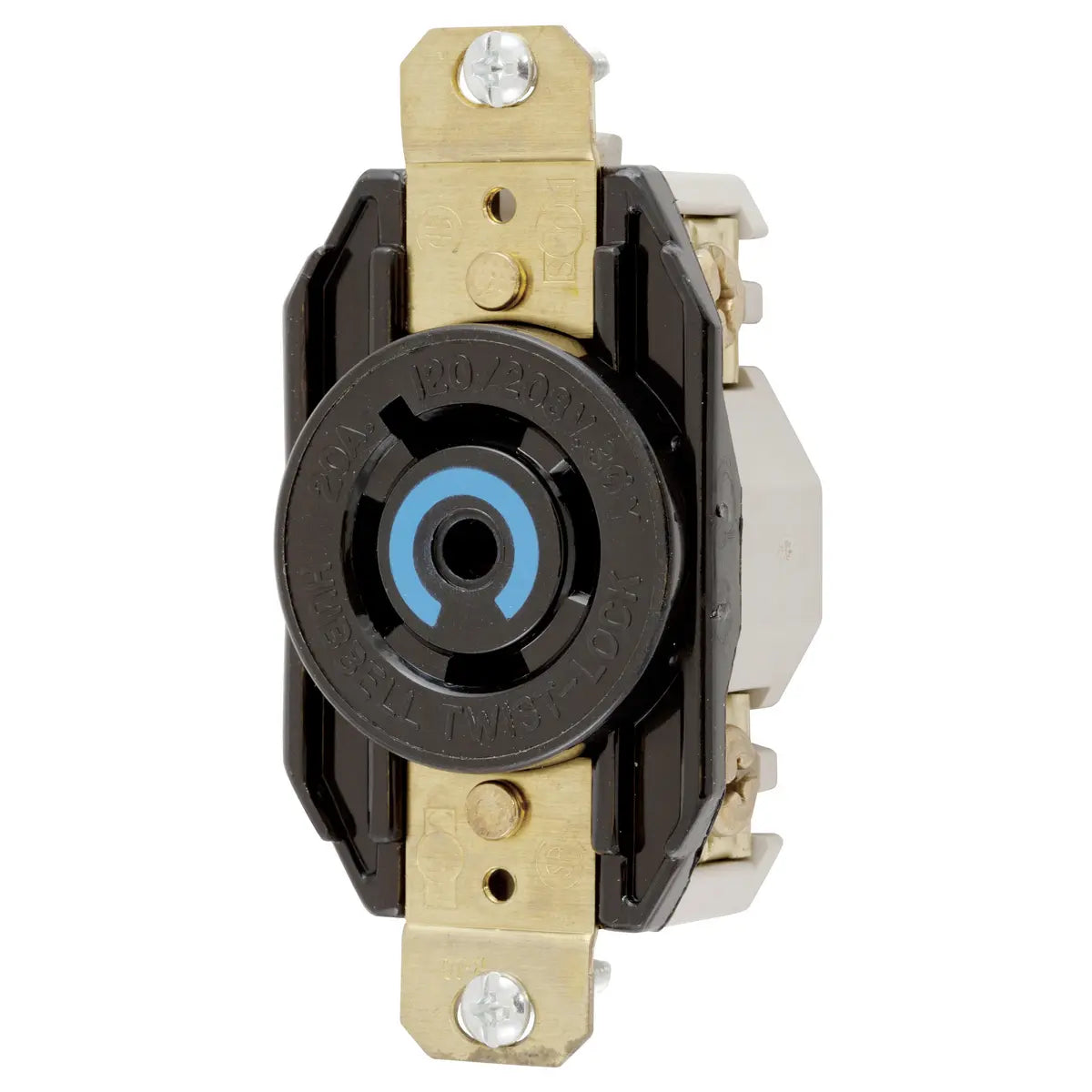

HBL2510 - Hubbell Wiring Device-Kellems - 120/208V AC 4-Pole 5-Wire Grounding Twist-Lock Locking Devices
Roll over image to zoom in Click on image to zoom
HBL2510 - Hubbell Wiring Device-Kellems - 120/208V AC 4-Pole 5-Wire Grounding Twist-Lock Locking Devices

HBL2510 - Hubbell Wiring Device-Kellems - 120/208V AC 4-Pole 5-Wire Grounding Twist-Lock Locking Devices

HubbellSKU: HUBHBL2510
Price:
$35.78
Stock:
Sold out

Description

HBL2510 - Hubbell Wiring Device-Kellems - 120/208V AC 4-Pole 5-Wire Grounding Twist-Lock Locking Devices

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, Nylon face, Back and side wire, Black.

  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

Standard

GENERAL SPECIFICATIONS

Catalog Number HBL2510
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Horsepower - Maximum 2
Item Type Single Flush Receptacles
Material Nylon
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Base - Glass-Reinforced thermoplastic polyester (RTP)
  • Contacts - Brass
  • Face - Nylon
  • Mounting Strap - Brass
  • Terminal Screws - #10 - 32 Brass
Type Single Flush Receptacle
UPC 783585235851



Dimensions

Dimensions  3.28 in x 1.70 in x 1.23 in
Display Size Standard Sized Product
Height 1.23 in
Length 3.28 in
Weight 0.3 lb
Width 1.7 in


Electrical Ratings

Amperage Rating 20 A
Connectivity Back and Side Wired Screw Terminals
Current / Amperage Rating 20 A
Current Rating 20 A
Dielectric Strength Withstands 2,000V minimum
Phase 3 Phase WYE
Voltage Rating 3 Phase WYE 120/208 VAC
Voltage Rating Description 3 Phase WYE 120/208 VAC



Conductor Related

Number Of Poles 4-Pole
Number of Wires 5-Wire
Wire Size #16 AWG to #8 AWG



Operational

Horsepower - Maximum  2
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498



Logistics

Carton Quantity 10
Pallet Quantity 2520



PRODUCT DATASHEET

Wiring HBL2510 Specification Sheet
