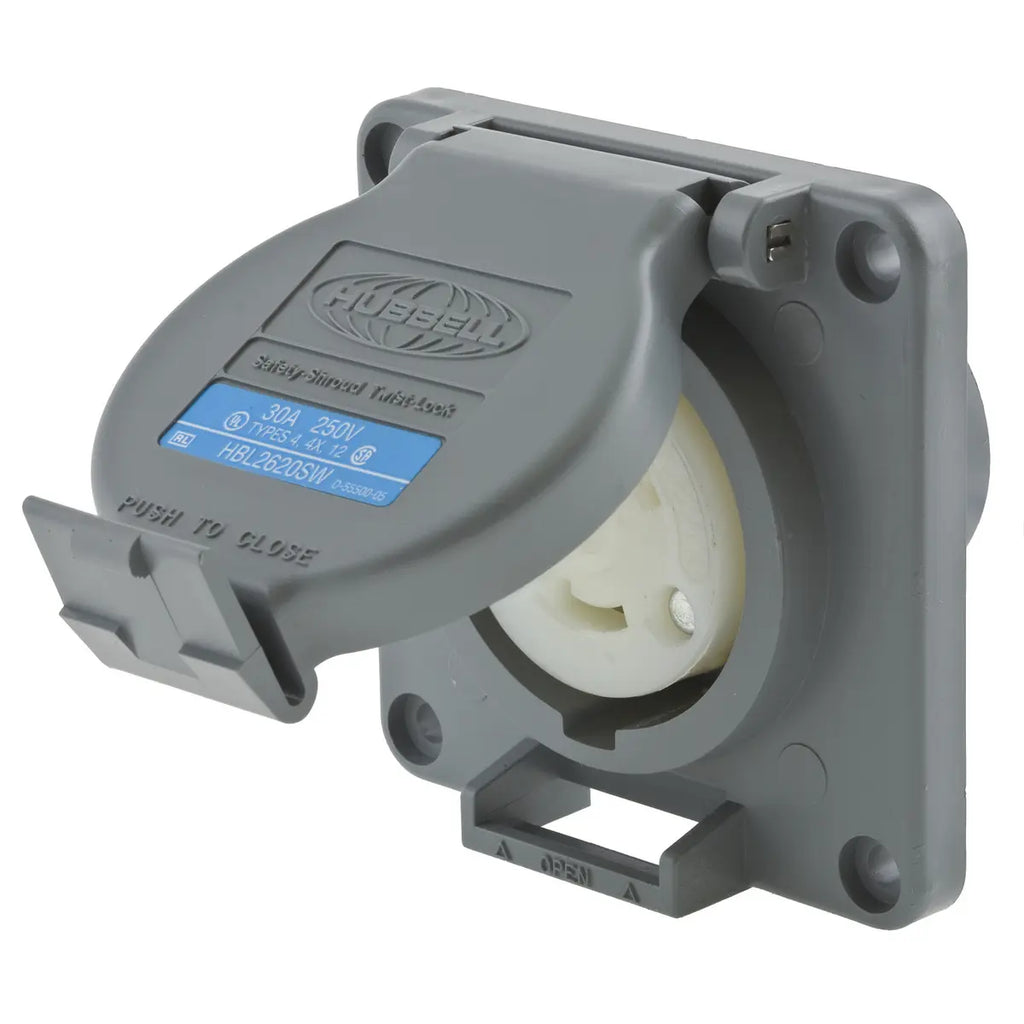

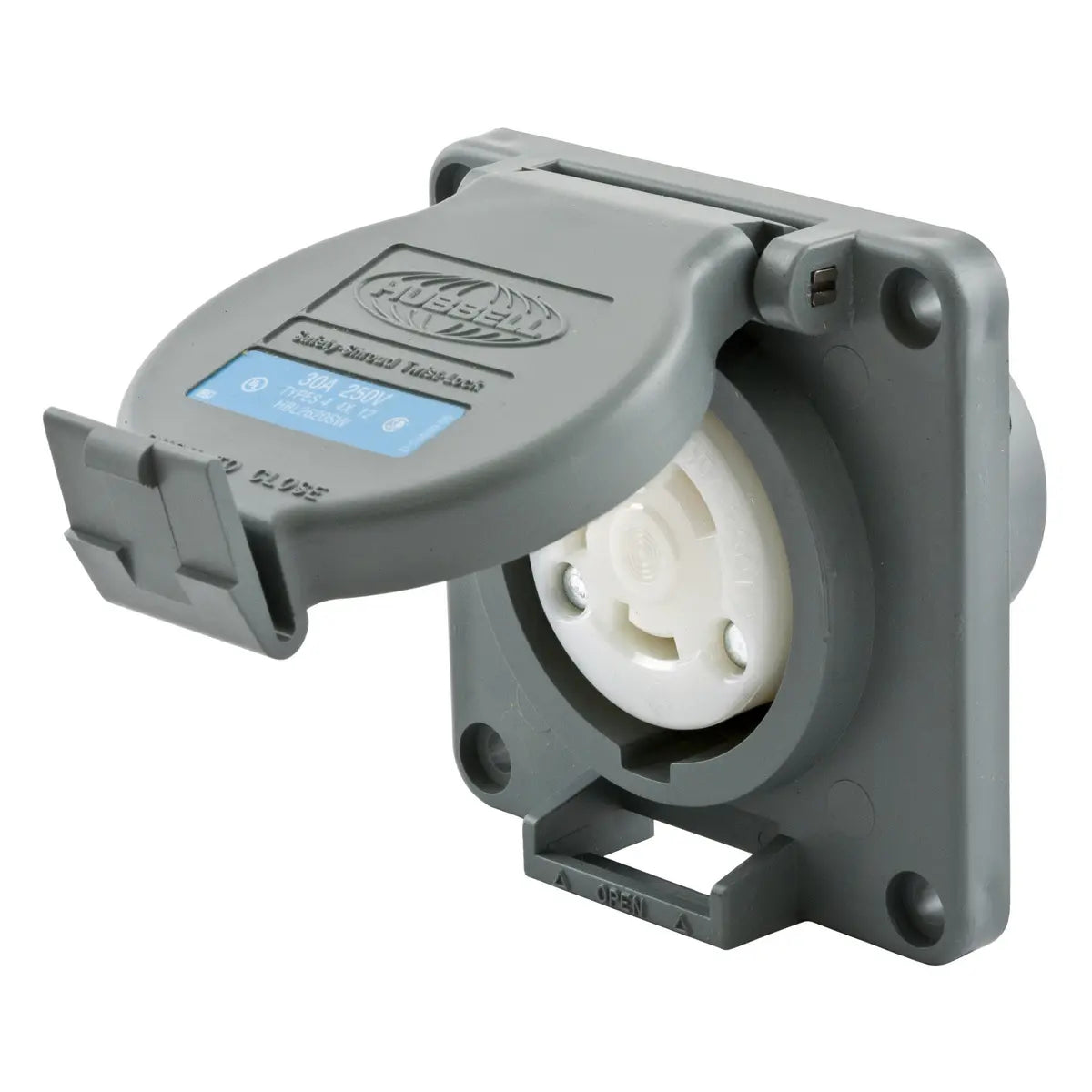

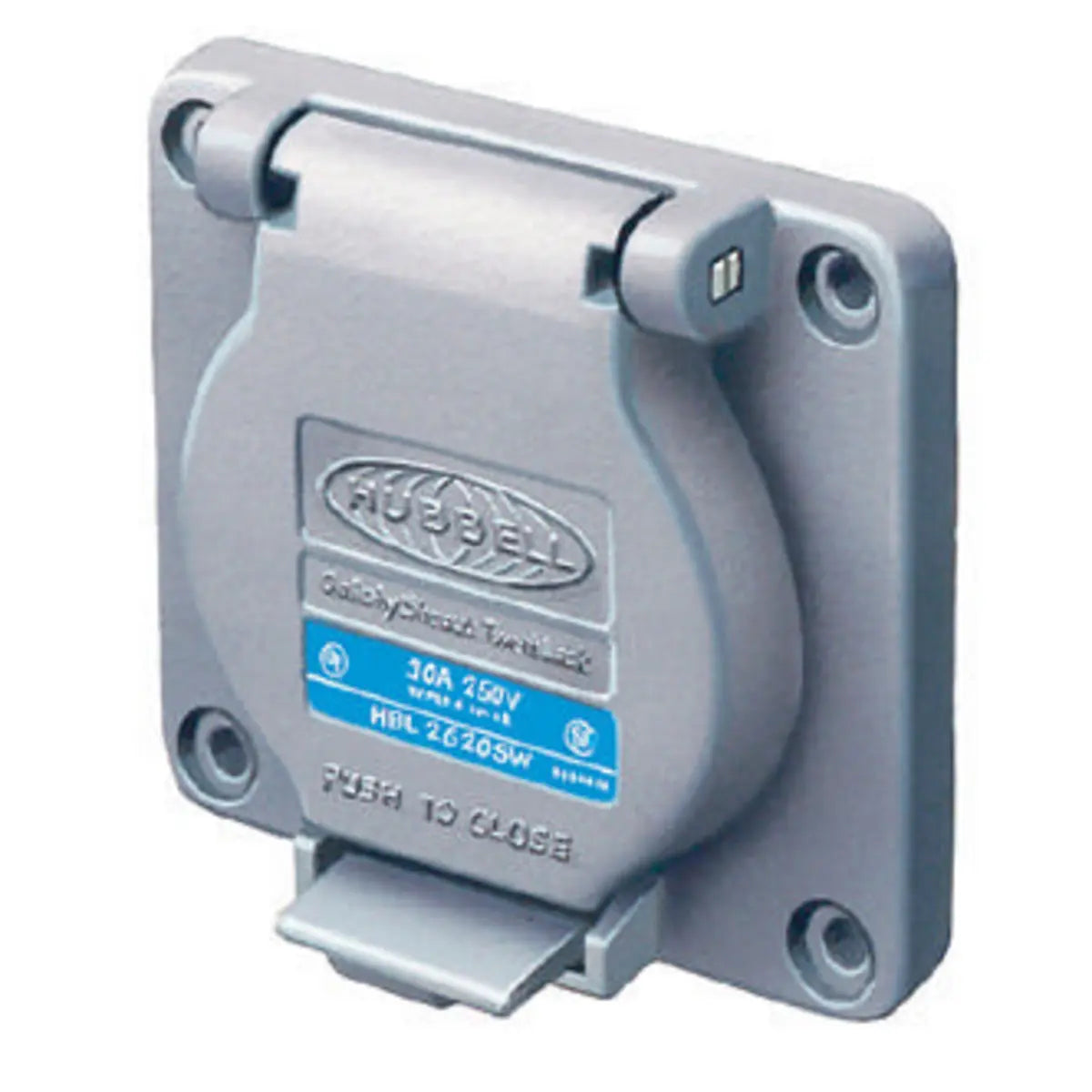

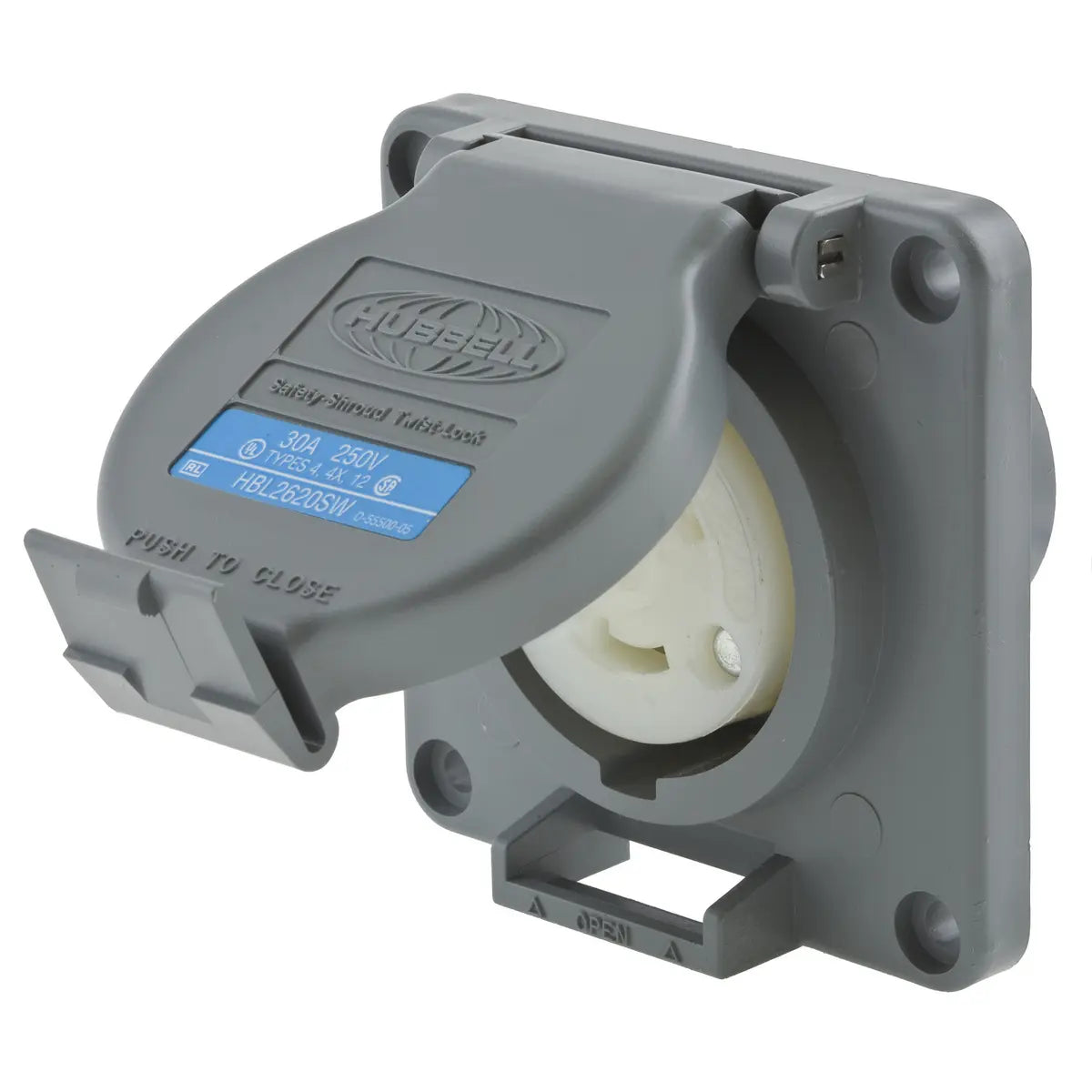

HBL2620SW - Hubbell Wiring Device-Kellems - 30A Receptacle Watertight Safety Cover Twist-Lock Locking Devices
Locking Devices, Twist-Lock(R), Watertight Safety-Shroud(R), Receptacle, 30A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-30R, Screw Terminal, PBT housing and flange, Gray
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected

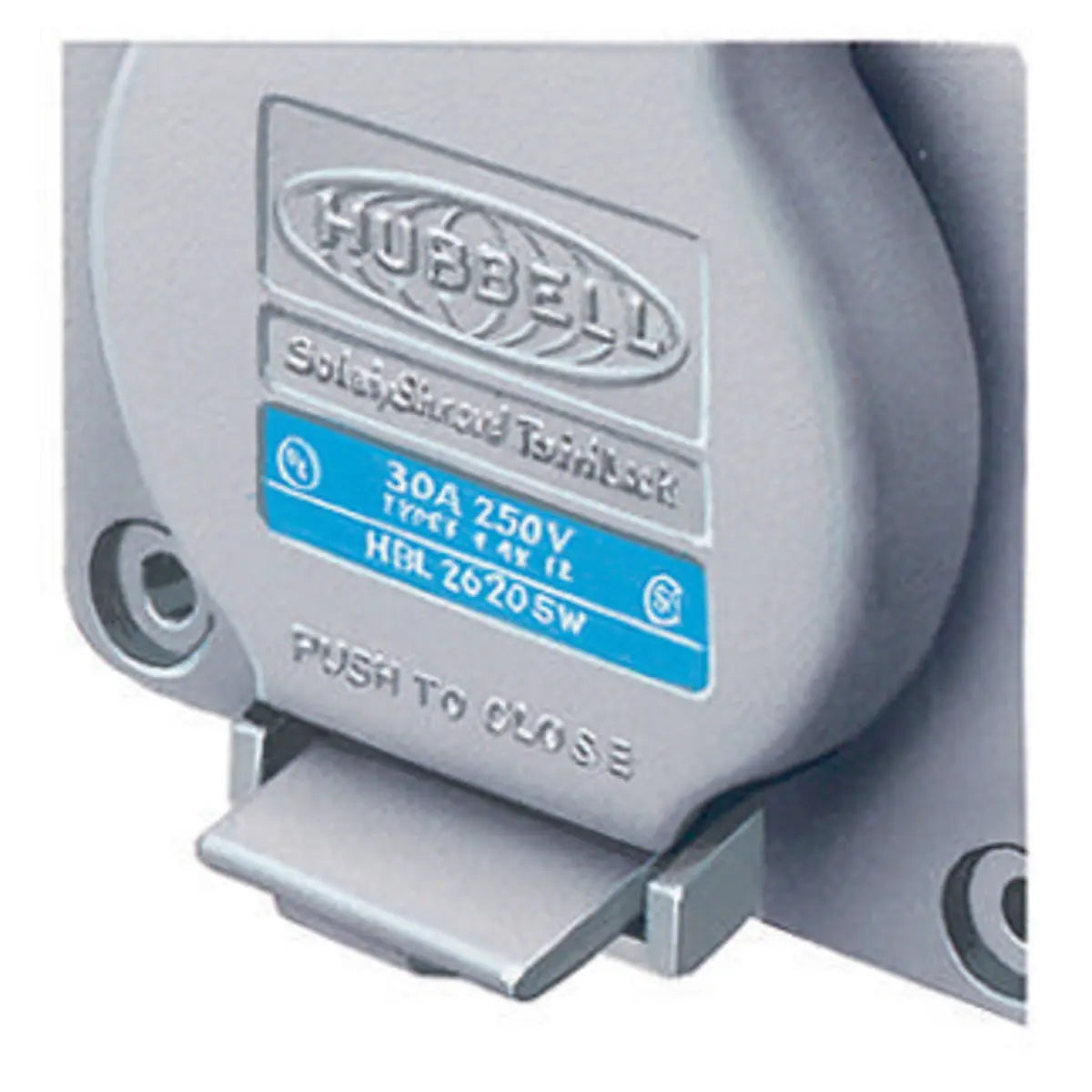

- Catalog number and color coded voltage rating are visible even when in use
Shrouded Watertight Construction
GENERAL SPECIFICATIONS
| Catalog Number |
HBL2620SW |
| Environmental Conditions |
Watertight |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
2 |
| Item Type |
30A Watertight Safety-Shroud(R) Receptacle |
| Material |
Valox(TM) |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
| Specifications |
- Body Contact Carrier - Natural (white) nylon
- Contacts - Brass
- Drive Screws - Steel, zinc plated
- Housing / Cover - Gray RPT
- Lift-Cover Spring & Pin - Stainless Steel
- Terminal Retainer - Clear polycarbonate
|
| Type |
Device |
| UPC |
783585231662 |
Dimensions
| Dimensions |
3.75 in x 3.75 in x 2.69 in |
| Display Size |
Standard Sized Product |
| Height |
2.69 in |
| Length |
3.75 in |
| Weight |
0.55 lb |
| Width |
3.75 in |
ElectricalRatings
| Amperage Rating |
30 A |
| Connectivity |
Back Wired Screw Terminals |
| Current / Amperage Rating |
30 A |
| Current Rating |
30 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
250 V |
| Voltage Rating Description |
250 VAC |
ConductorRelated
| Number Of Poles |
2-Pole |
| Number of Wires |
3-Wire |
| Wire Size |
#16 AWG to #8 AWG |
Operational
| Horsepower - Maximum |
2 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75 degC, Minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
|
Logistics
| Carton Quantity |
5 |
| Pallet Quantity |
1000 |
