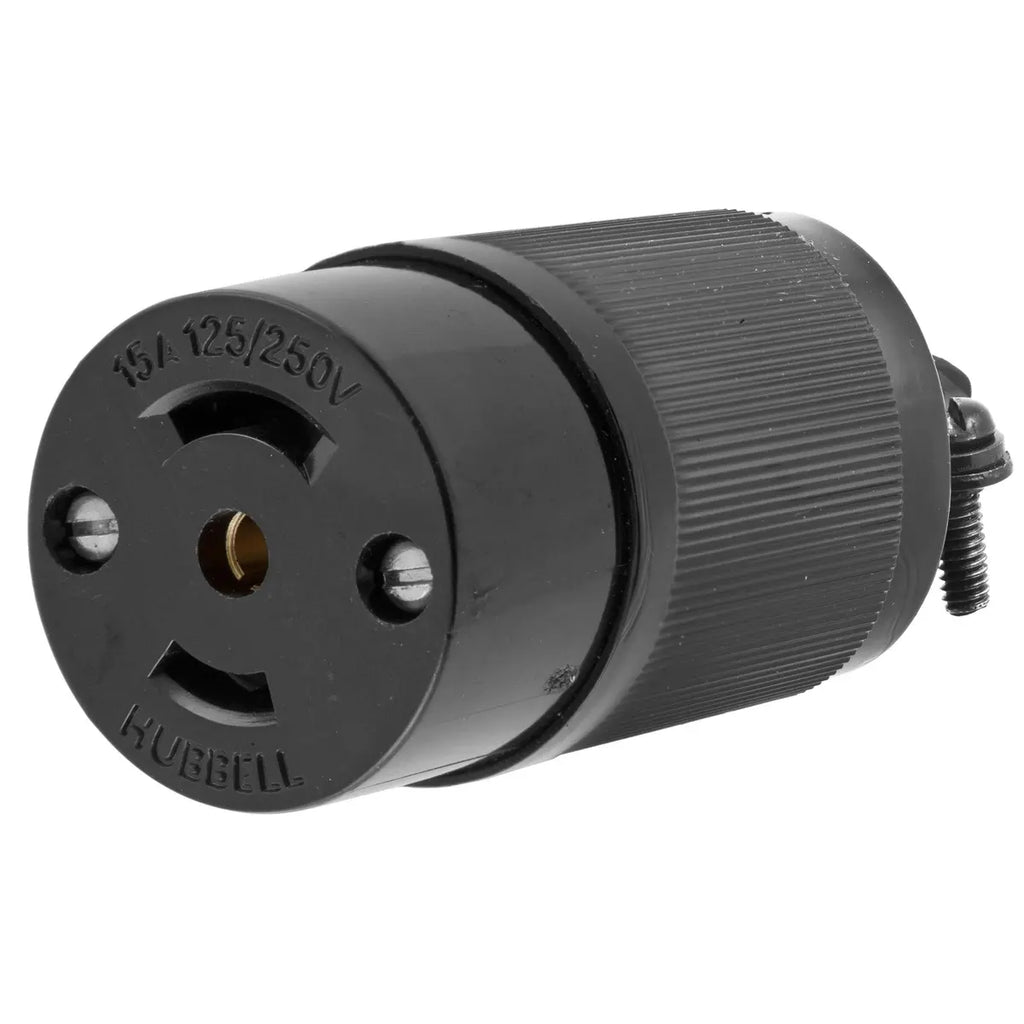

HBL7484 - Hubbell Wiring Device Kellems 15A 125/250V 3 Pole 3 Wire Non Grounding Female Straight Connector Midget Twist Lock®

Locking Devices, Midget Twist-Lock®, Industrial, Female Straight Connector, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Screw Terminal, Black.

  • Abuse resistant nylon housing
  • Phenolic body for high heat resistance
  • Angled body design for low profile in tight spaces

Standard Product

GENERAL SPECIFICATIONS

Catalog Number HBL7484
Color Black
Cord Range 0.281"-0.421" (7.1-10.7)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Insulation Insulated Body
Item Type 15A Midget Twist-Lock® Connector
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Specifications
  • Contact Holder - Phenolic
  • Contacts - Brass
  • Housing - Nylon
  • Terminal Clamp - Zinc plated steel with black lacquer finish
  • Terminal Screws - #5-40 Brass
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type Connector Body
UPC 783585237381



Dimensions

Dimensions 1.17 in x 1.17 in x 2.42 in
Display Size Midget Locking
Height 2.42 in
Length 1.17 in
Weight 0.05 lb
Width 1.17 in



Electrical Ratings

Amperage Rating 15 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 15 A
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
Voltage Rating 125/250 V
Voltage Rating Description 125/250 V



Conductor Related

Cable Range 0.281 - 0.421 in
Conductor Range #14 AWG to #12 AWG
Number Of Poles 3-Pole
Number Of Wires 3-Wire
Wire Size #18 AWG to #14 AWG



Operational

 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.


Logistics

Carton Quantity 10
Pallet Quantity 6600



PRODUCT DATASHEET

Wiring HBL7484 Specification Sheet
