HBL7774WO - Hubbell - Weatherproof Cover 1 Gang 50A Twist Lock(R) Opening Thermoplastic
HBL7774WO - Hubbell - Weatherproof Cover 1 Gang 50A Twist Lock(R) Opening Thermoplastic
HBL7774WO - Hubbell - Weatherproof Cover 1 Gang 50A Twist Lock(R) Opening Thermoplastic
Roll over image to zoom in Click on image to zoom
HBL7774WO - Hubbell - Weatherproof Cover 1 Gang 50A Twist Lock(R) Opening ThermoplasticHBL7774WO - Hubbell - Weatherproof Cover 1 Gang 50A Twist Lock(R) Opening ThermoplasticHBL7774WO - Hubbell - Weatherproof Cover 1 Gang 50A Twist Lock(R) Opening Thermoplastic

HBL7774WO - Hubbell - Weatherproof Cover 1 Gang 50A Twist Lock(R) Opening Thermoplastic

HubbellSKU: HUBHBL7774WO
Price:
$56.75
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

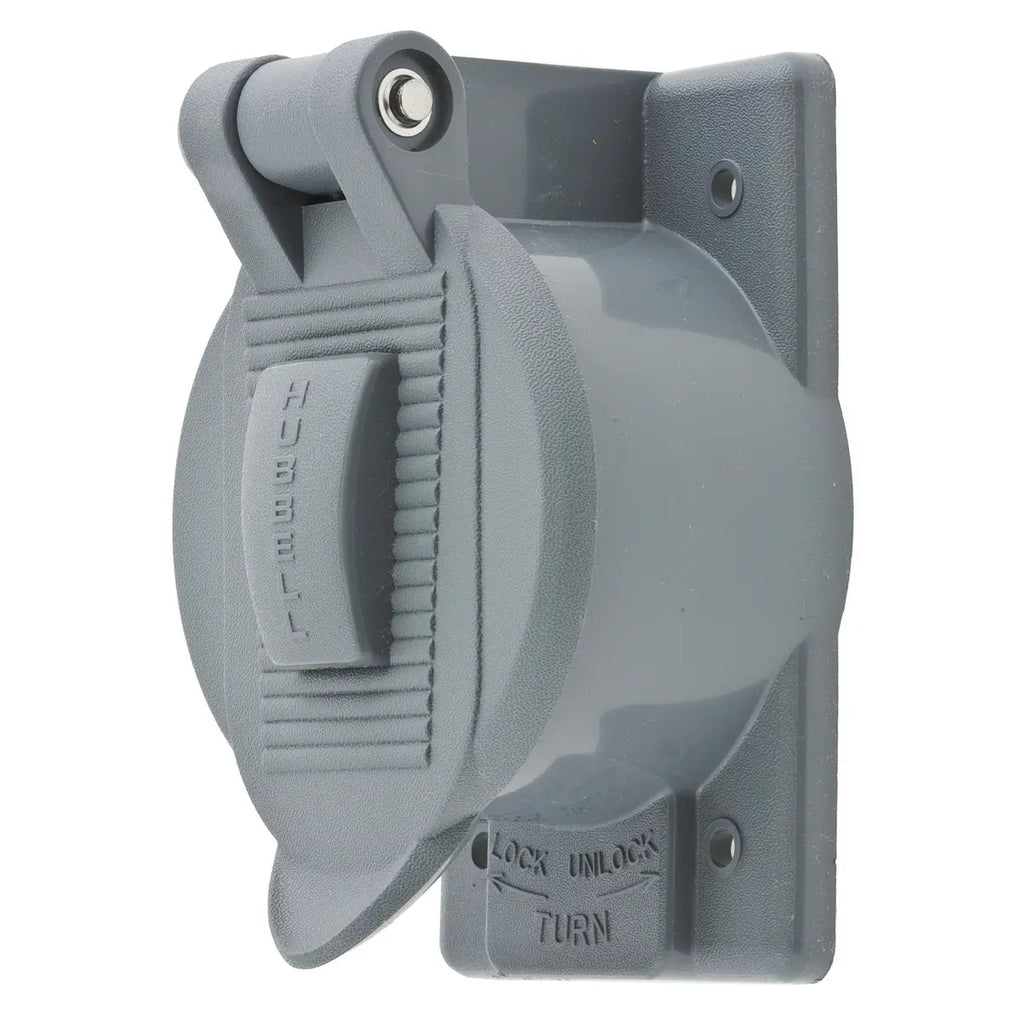

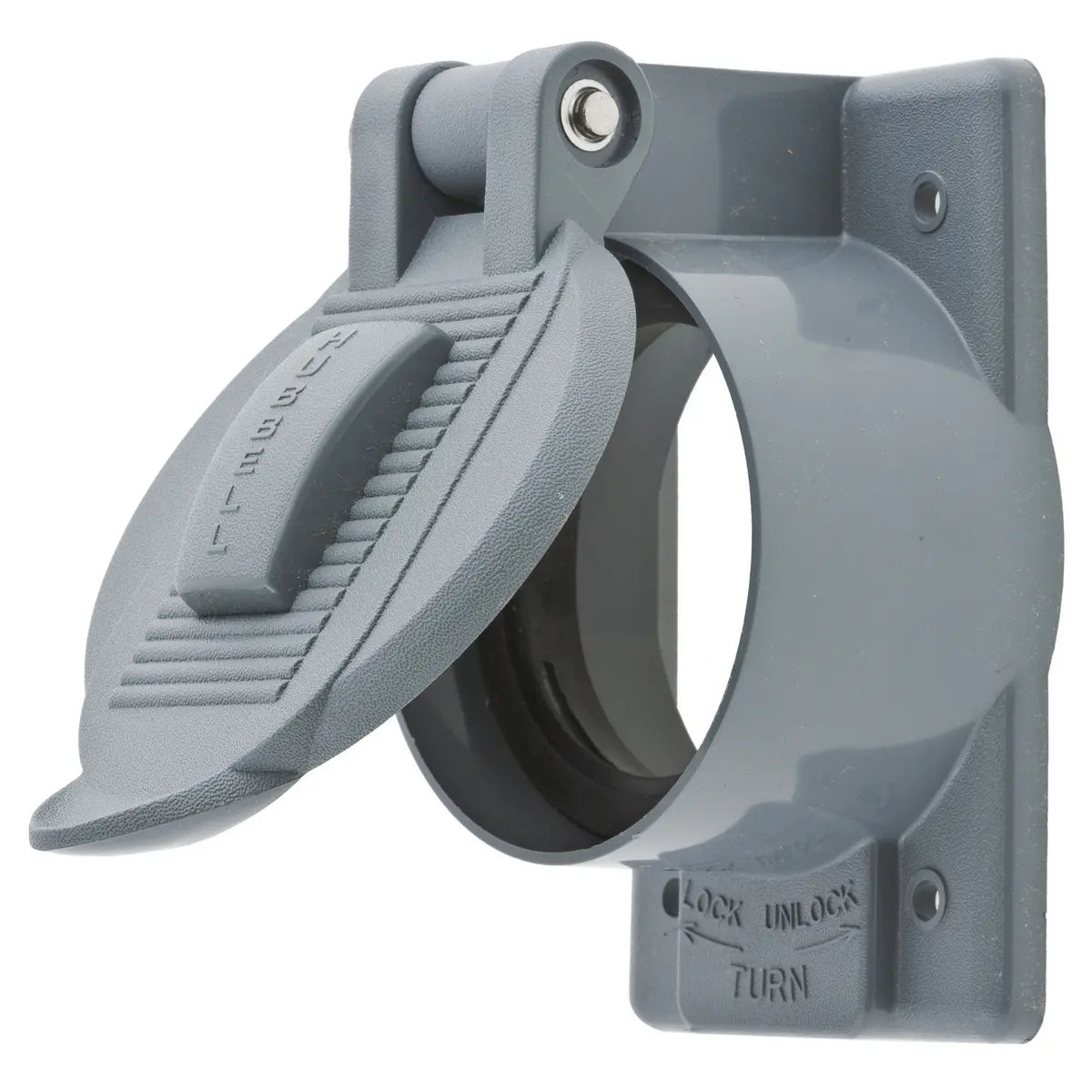

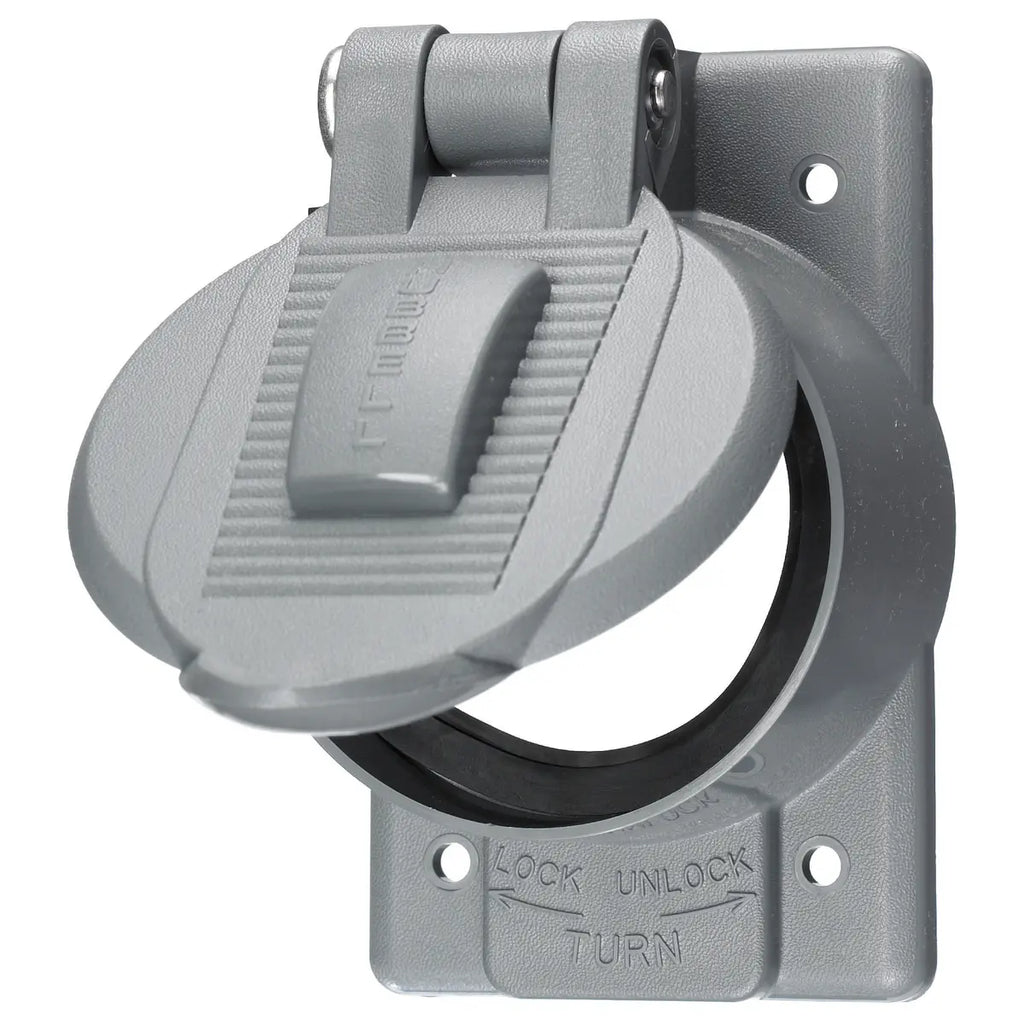

HBL7774WO - Hubbell Wiring Device Kellems Weatherproof Cover 1 Gang 50A Twist Lock

Wallplates and Boxes, Weatherproof Covers, 1-Gang, 1) 50A Twist-Lock(R) Opening, Standard Size, Thermoplastic

  • For use with 50A Twist-Lock(R) Single Receptacles

Weatherproof in Open Position with Device Mated

GENERAL SPECIFICATIONS

Catalog Number HBL7774WO
Color Gray
EU RoHS Indicator Yes
Material Thermoplastic
Material - Mounting Hardware Vertical FS/FD Mount - Mounting Screws
Number of Gang(s) 1-Gang
Number Of Outlets 1-Device
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75 degC and minimum -40 degC without Impact
Style For 50A Twist-Lock(R) Single Receptacle
Type Covers
UPC 783585809526

Dimensions

Weight 0.35 lb

Electrical Ratings

Dielectric Strength Withstands 2,000V minimum


Operational

Operating Temperature Maximum continuous 75 degC and minimum -40 degC without Impact


Configuration

Number of Gang(s) 1-Gang
Number Of Outlets 1-Device


Logistics

Carton Quantity 10
Pallet Quantity 810

PRODUCT DATASHEET

Wiring HBL7774WO Specification Sheet
