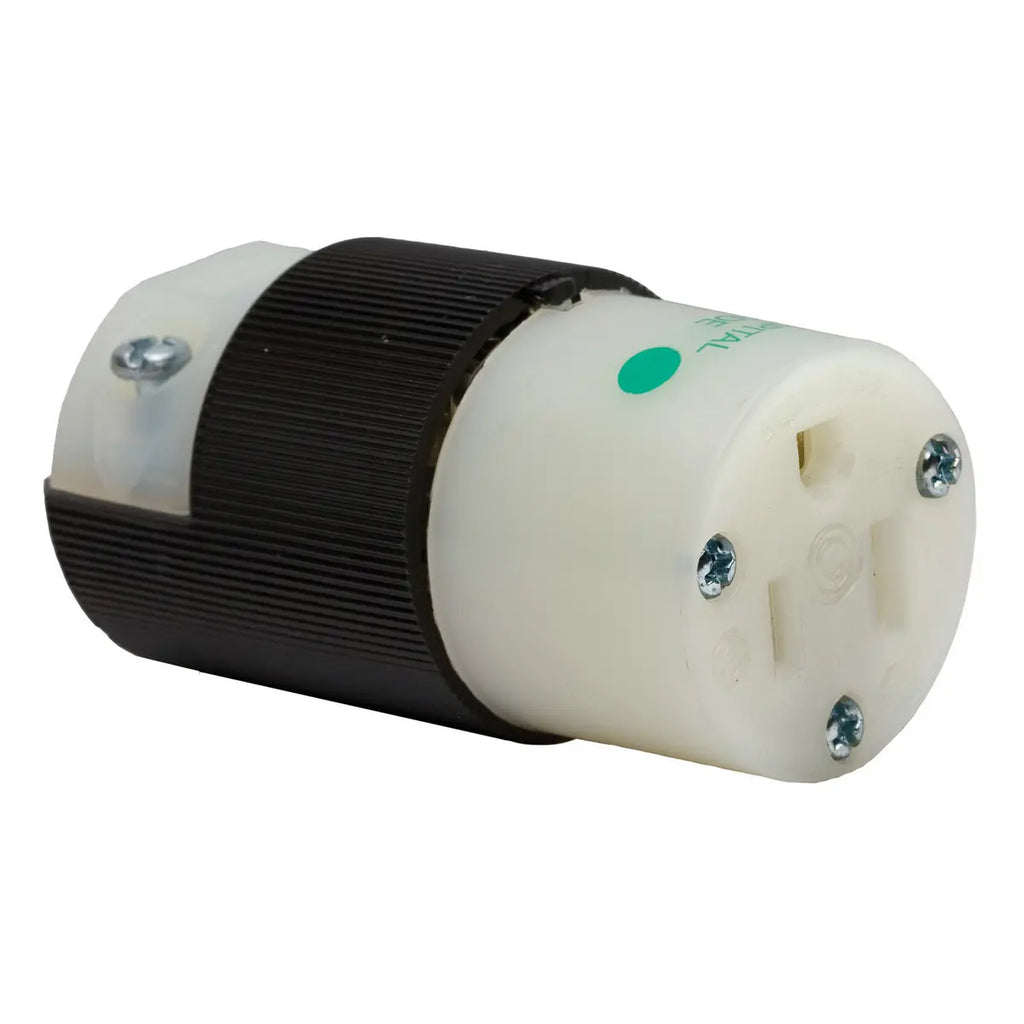

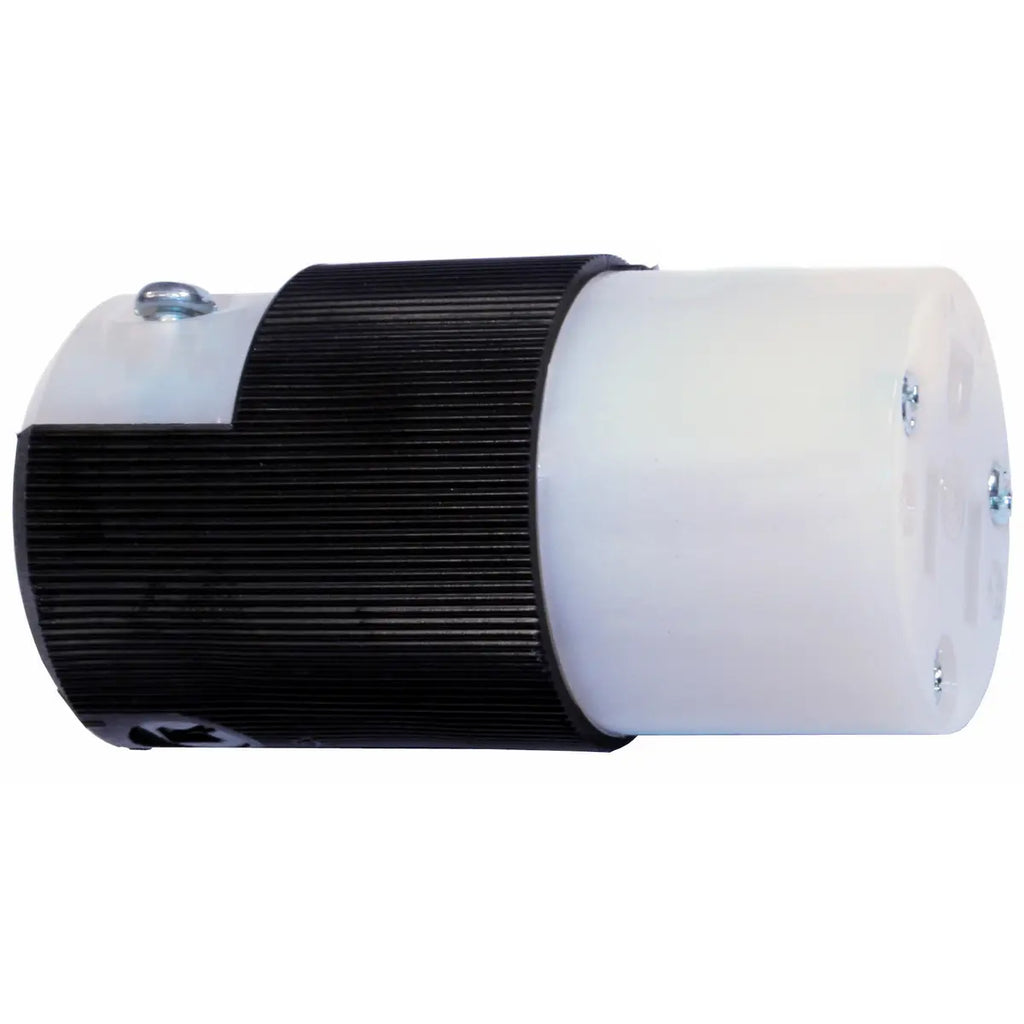

HBL8219C - Hubbell Wiring Device Kellems 15A 125V 2 Pole 3 Wire Grounding Female Connector Hospital Grade Insulgrip
Straight Blade Devices, Female Connector Body, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black and White, Single Pack, Canadian Version.
- Beveled housing prevents snagging
- Powerful, offsetting cord grips clamp on individual conductors
GENERAL SPECIFICATIONS
| Catalog Number |
HBL8219C |
| Color |
Black and White |
| Cord Range |
0.230"-0.720" (5.8-18.3) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Horsepower - Maximum |
0.5 |
| Insulation |
Insulated Body |
| Item Type |
Insulgrip Connector |
| Material |
Nylon |
| Material - Mounting Hardware |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2000V AC minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #18-10 AWG
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Series |
Hospital Grade |
| Specifications |
- Assembly Screws - Plated steel
- Contacts - .04" (1.0) Copper Alloy
- Cord Clamp - Nylon
- Housing - Nylon
- Terminal Clamp - Plated steel
- Terminal Retainer - PBT
- Terminal Screws - Brass
|
| Style |
Insulgrip |
| Type |
Connector Body |
| UPC |
783585179506 |
Dimensions
| Dimensions |
2.78 in x 1.53 in x 1.53 in |
| Display Size |
Standard |
| Height |
1.53 in |
| Length |
2.78 in |
| Weight |
0.2 lb |
| Width |
1.53 in |
Electrical Ratings
| Amperage Rating |
15 A |
| Connectivity |
Screw Terminals |
| Current / Amperage Rating |
15 A |
| Current Rating |
15 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating |
125 V |
| Voltage Rating Description |
125 V |
Conductor Related
| Number Of Poles |
2-Pole |
| Number Of Wires |
3-Wire |
| Wire Size |
#18 AWG to #10 AWG |
Operational
| Horsepower - Maximum |
0.5 |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2000V AC minimum
- Environmental - Flammability - UL 94 HB or better
- Environmental - IP Suitability - IP20
- Environmental - Operating Temperatures - Maximum continuous 75 degC, minimum -40 degC (w/o impact)
- Mechanical - Product Identification - Ratings are a permanent part of the device
- Mechanical - Terminal Accommodation - #18-10 AWG
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
|
| Temperature Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
6600 |
