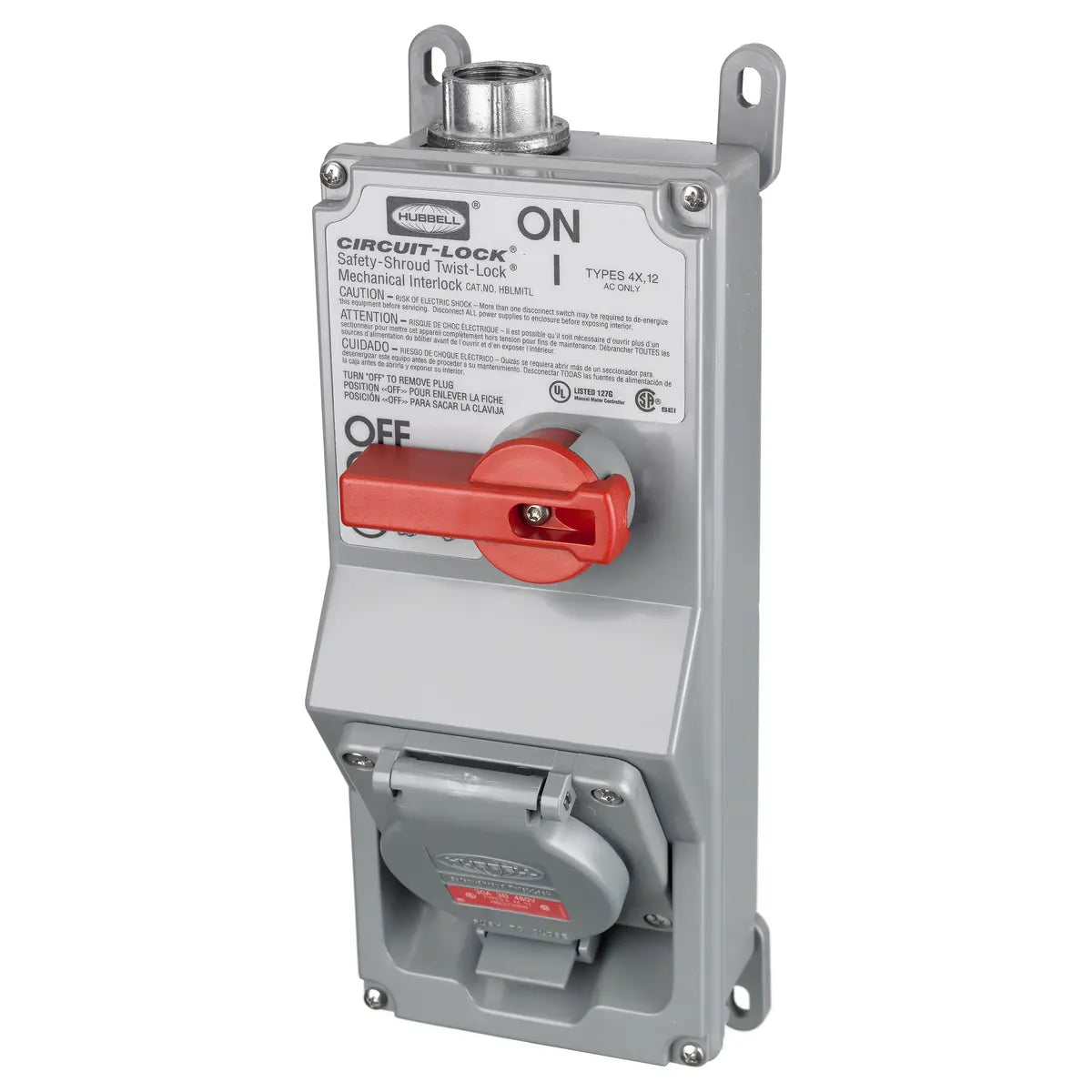

HBLMITL - Hubbell Wiring Device-Kellems 30A 600V 1 Pole Mechanical Interlock Twist-Lock®

Hubbell offers the only mechanical interlock for Twist-Lock®. This new, unfused mechanical interlock for Watertight Safety-Shroud® Twist-Lock® integrates a watertight receptacle with a linked disconnect switch to provide a mechanically interlocked receptacle. This virtually eliminates the possibility of making or breaking the circuit while under load or making a casual or “lazy” connection. The switch cannot be turned ON until the plug is properly inserted and locked, and the plug cannot be removed until the switch is turned OFF. All these protective features are included in a compact Type 4X hose-directed water and corrosion resistant enclosure that allows for top, bottom or back feed options. The non-metallic enclosure is nonconductive, yet has an internal frame to assure ground continuity with metallic conduit. In addition, this interlock works with all Safety-Shroud Twist-Lock Plugs. The new unfused mechanical interlock for Watertight Safety-Shroud Twist-Lock can be locked out as a method of compliance with OSHA lockout/tagout regulations.

• Unfused Mechanical Interlock for Watertight Safety-Shroud
• Virtually Eliminates Possible Circuit Making or Breaking While Under Load
• Compact, Corrosion Resistant Type 4X Non-metallic Enclosure
• Molded Valox Resists Abuse, Corrosion and Enhances Safety

GENERAL SPECIFICATIONS

Dimensions

Electrical Ratings

Logistics

PRODUCT DATASHEET

Wiring HBLMITL Specification Sheet
